Fujitsu D3003 - Page 8

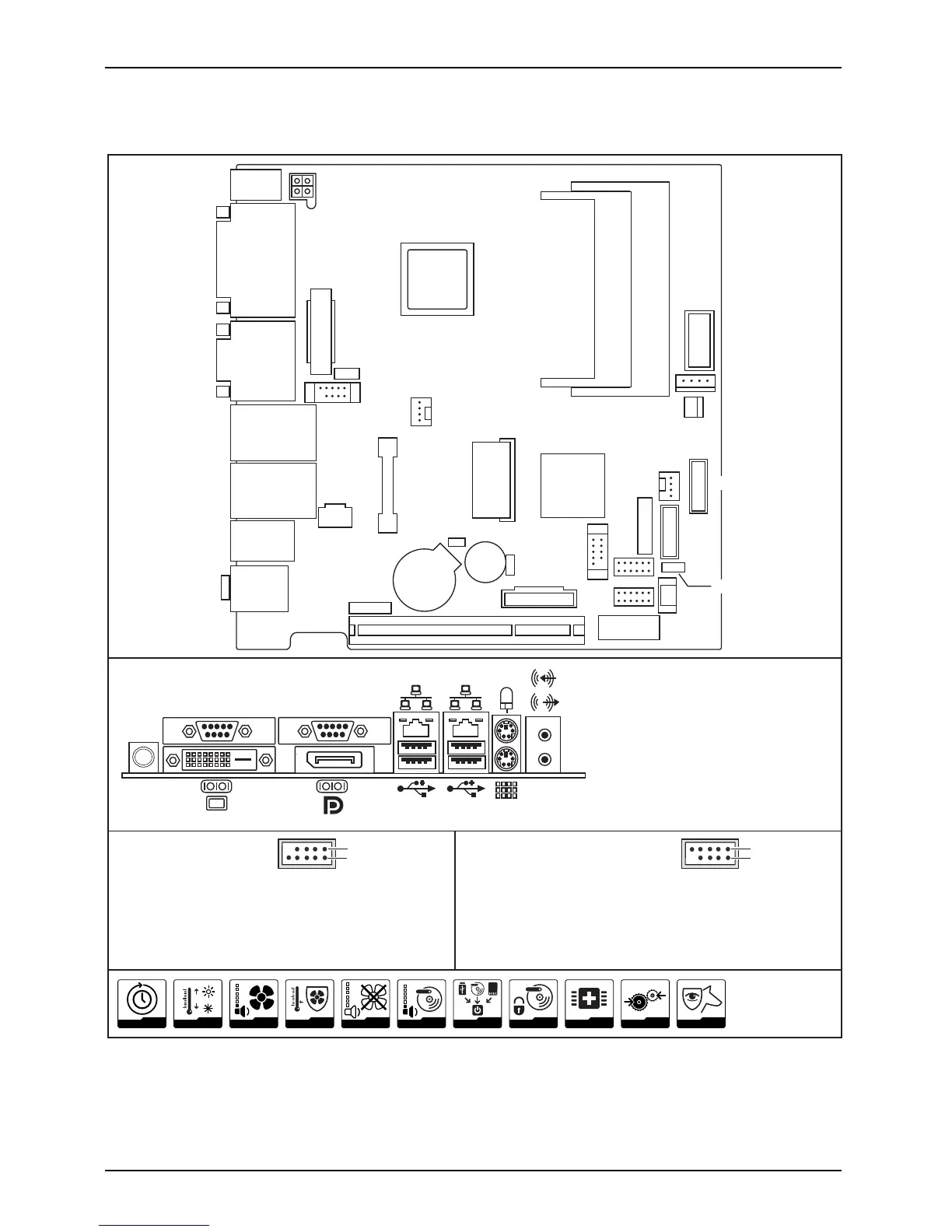

Internal connectors and slo ts
External connectors rear
A26361-D3003-Z330-1-8N19
D3003-Sxx
USB - dual channel
1
2
1 = VCC C
2 = VCC D
3 = Data negative C
4 = Data negative D
5=
6 = Data positive D
Data positive C
7 = GND
8 = GND
9= Key
10 = Not connected
Processor
mSATA/USB
FCH Hudon E1
(A55E)
Intrusion
Drive Power
Buzzer
Battery
Audio
Frontpanel
PCI
PCIe X2
USB
USB
RCV
SATA 0
Memory Socket
DC Plug
COM 1
DVI-I
COM 2
Display Port
(-S2 only)
LAN
2x USB
LAN
2x USB
Mouse
Keyboard
Line IN
Line OUT
USB A
Connector
Power
LVDS (-S1/S3)
COM 2
LVDS Power (-S1/S3)
GPIO
Auto-On
Frontpanel
Backlight
Power
(-S1/S3)
SATA 1
FAN 1
FAN 2
SPDIF
Frontpanel Connector
1
2
1 = HDD LED+
2 = Power LED+
3 = HDD LED-
4 = Power LED GND
5=
6 = PowerSwitch P
ResetSwitch GND
7 = ResetSwitch P
8 = PowerSwitch GND
9 = Reserved (NC)
10 = (KEY)
WATCH DOGDESK UPDATERECO VERY BIOSHDD PA S SW O R D
MULTI BO O T
SILEN T DRIVES
FA N LES S
SYSTEM GUARDSILEN T FA NEXTEN D ED TEM PERATU RE 24/7 O perating Mode
TPM
Backlight Control
(-S1/S3)
(proprietary)
Fujitsu Technology Solutions
