6 - English Installing/removin g the
processor
Procedure
The processor socket is c overed with a protective cap to protect the spring
contacts In the event of a warranty case, the mainboard can only be taken back
by Fujitsu Technology Solutions with the protective cap secured!
a
b
b
Remove the heat sink.
Press down the lever and unhook it.
Fold up the frame.

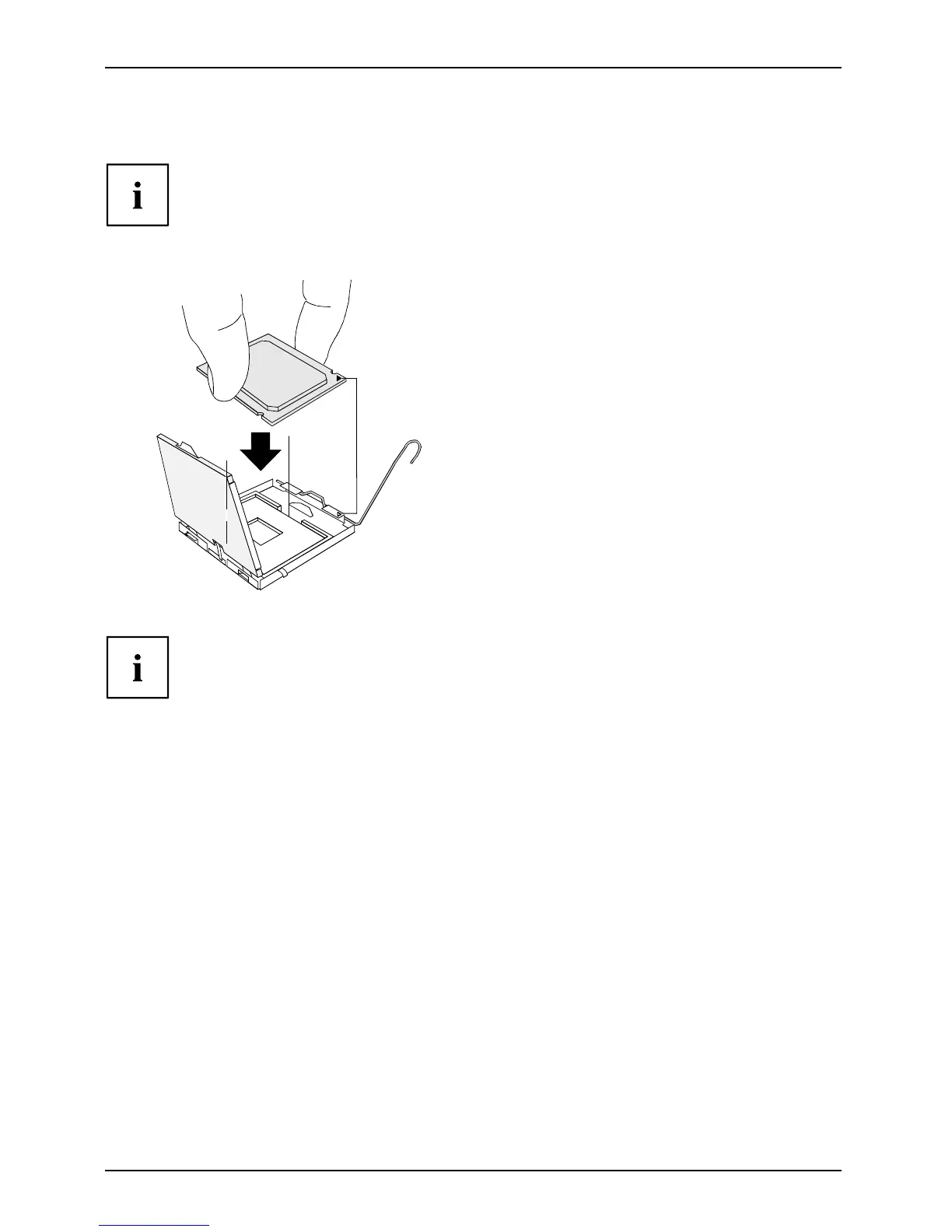

Hold the processor between your thumb
and index nger and insert it into the socket
(b) so that the marking of the p rocesso r is
aligned with the marking on the socket (a).
Press the lever downw ard until it is
hooked in again.
Remove the protective cap and keep it.
Please note that, depen ding on the heat sink used, different heat sink
mounts are required on the m ainboard.
Depending on t
he conguration variant, you must pull a protective foil off the heat sink
or coat the he
at sink with heat conducting paste before tting it.
Secure the heat sink - depending on the m od el - with four screws or push it into the mounts.
