Fujitsu FI-4120C Instruction Manual

6
Versitec 1- 888 - 722 - 6548 www.versitec.com

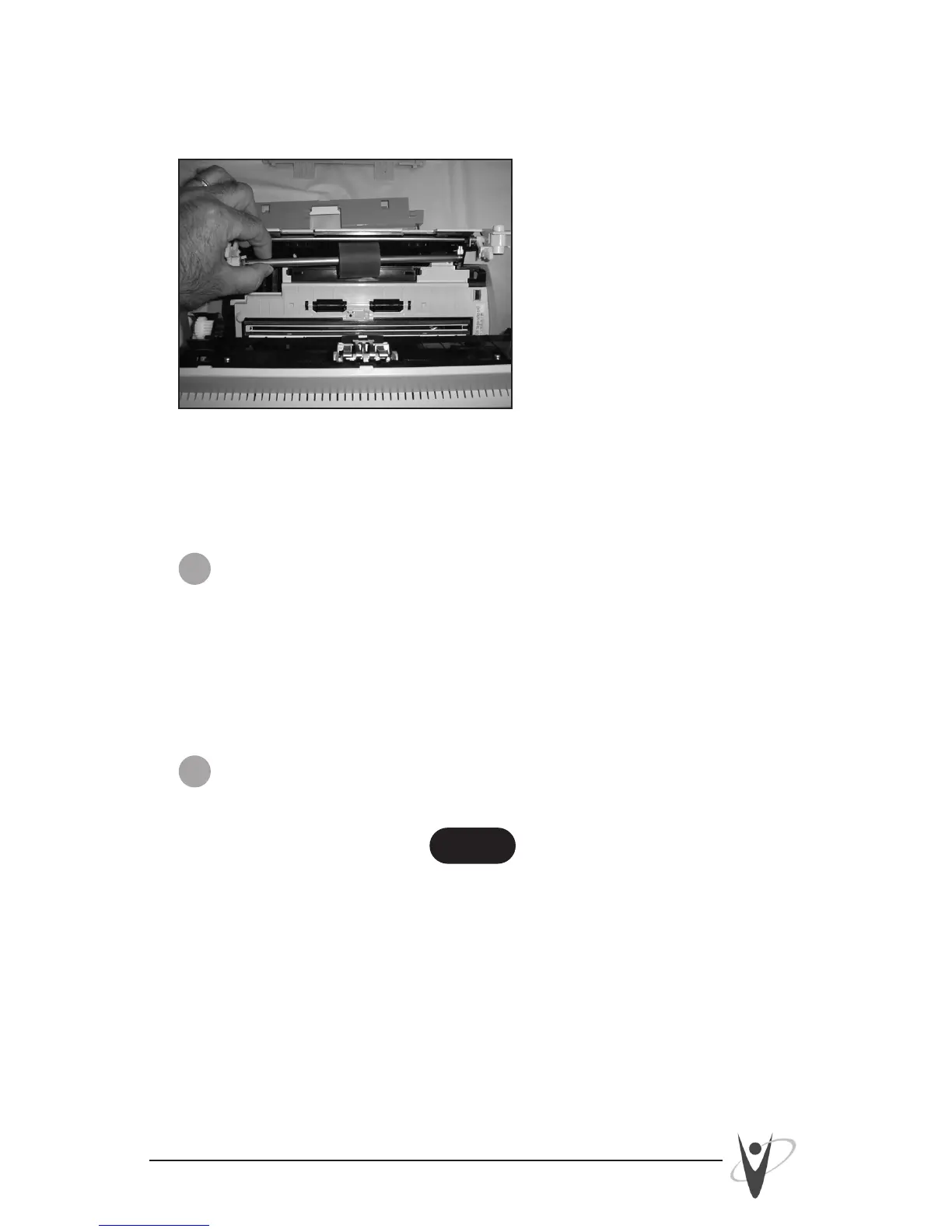

D) Lift the original pick roller upward to free it from
the shaft.
E) Remove the pick roller from the shaft by lifting up the tab
and pushing the roller away from the retaining key towards
the end of the shaft.
5 Attach the new pick roller:
A) Slip the new roller onto the shaft and align the tab with the
retaining key.
B) The new pick roller is properly attached when you hear the
roller click into place.
6 Mount the new pick roller in the reverse order of the
removal procedure.
NOTE:
Make sure that the roller assembly is properly installed;
otherwise document jamming and misfeeding will result.
