6

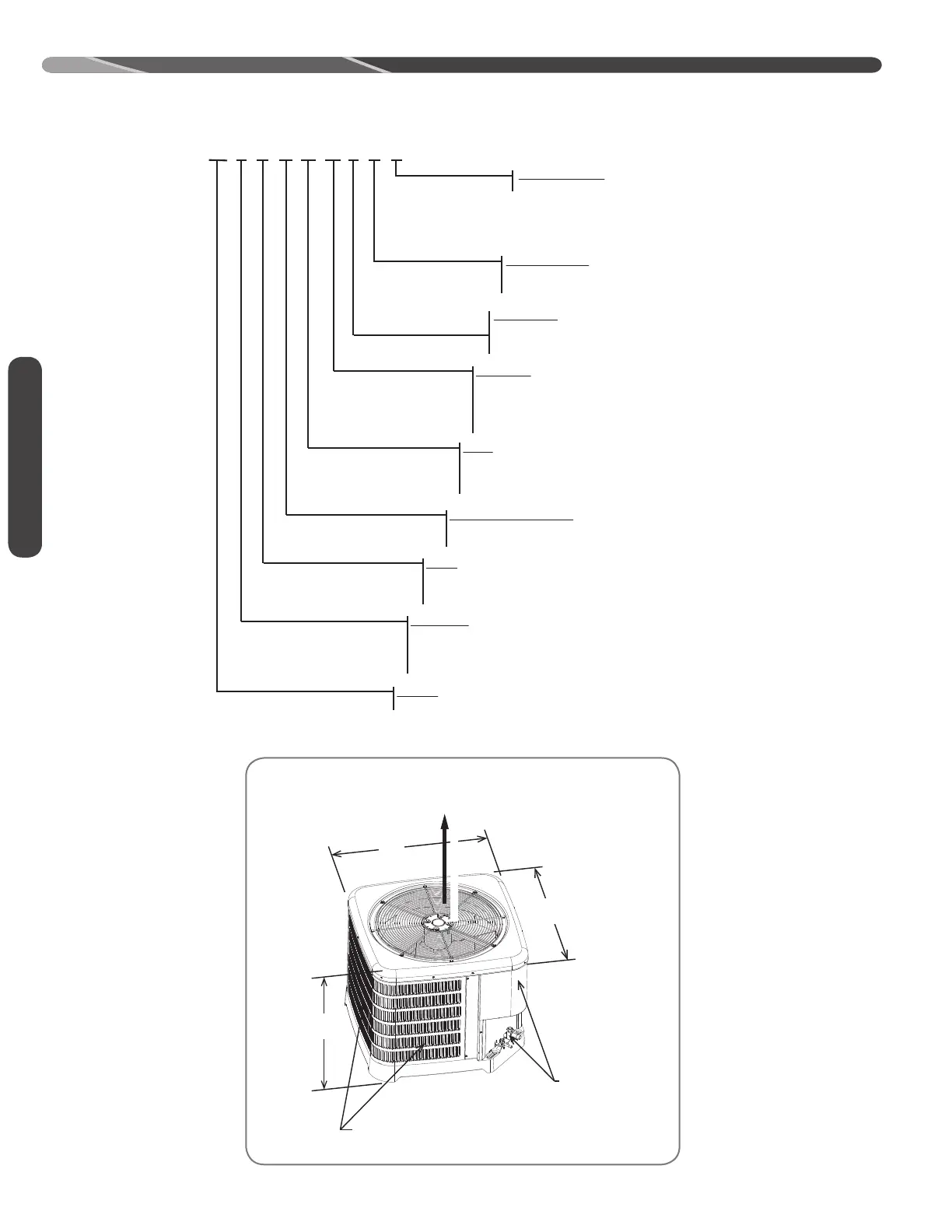

ALLOW 60” [1524mm]
OF CLEARANCE
AIR INLET LOUVERS ALLOW
6” [152mm] Min. OF CLEARANCE ALL SIDES
12” [305mm] RECCOMMENDED
SERVICE PANELS/
INLET CONNECTIONS / HIGH & LOW
VOLTAGE ACCESS
ALLOW 24” [ 610 mm] OF CLEARANCE
ST-A1226-23-00
“H”
“W”
A
I
R
D
I
S
C
H
A
R
G
E
“L”
FO
MAJOR SERIES
A – FIRST DESIGN SERIES
B – SECOND DESIGN SERIES
C – THIRD DESIGN SERIES
P – PISTON
F – DUAL FUEL
G – DUAL FUEL 2ND DESIGN SERIES
CONTROLS
N – NON-COMMUNICATING
C – COMMUNICATING
VOLTAGE
J = 1ph 208-230/60
C = 3ph 208-230/60
D = 3ph 460/60
Y = 3ph 575/60
TYPE
S – SINGLE STAGE
T – TWO STAGE
V – VARIABLE
MINOR SERIES
A – FIRST DESIGN SERIES
B – SECOND DESIGN SERIES (LPC/HPC)
18 14 R S J
NA A
PRODUCT CATEGORY
C = AC
R – HEAT PUMP
SEER
14 – 14 SEER
15 – 15 SEER
CAPACITY
18 – 18,000 BTU 42 – 42,000 BTU
24 – 24,000 BTU 48 – 48,000 BTU
30 – 30,000 BTU 60 – 60,000 BTU
36 – 36,000 BTU
BRAND
FO – FUJITSU
