Fujitsu Halcyon HFI - Electrical Requirement - Outdoor Unit; Electrical Specifications; Wiring Diagram; Ground Fault Breaker Caution

Copyright © Fujitsu General America, Inc.
21a

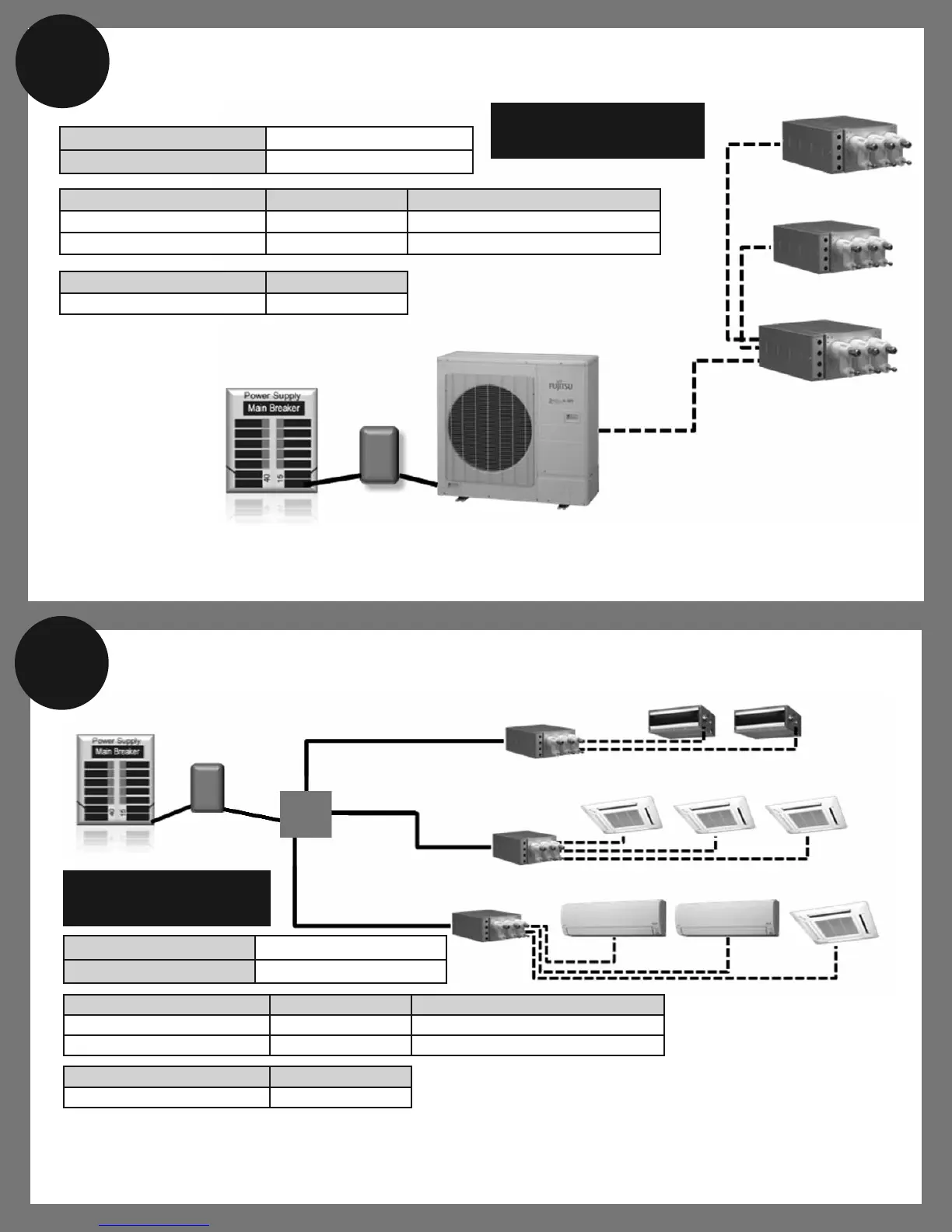

Electrical Requirement - Outdoor Unit
Electrical Requirement - Branch Boxes
Secondary 2
Secondary 1
Primary
Communication Cable
3+Ground
Disconnect
Electrical Panel
Power Line
2+Ground
Communication Lines
Voltage Rating 1 Ø 208/230V (60Hz)
Operating Range 187 - 264V
Dedicated 208/230 40A
breaker for outdoor unit.
Cable Cable Size Remarks
Power Supply Cable 8 AWG 2 cable + Ground, 1 Ø 208/230V
Connection Cable 14 AWG 3 cable + Ground, 1 Ø 208/230V
Breaker Capacity (A)
HVACR Breaker* 40
Secondary 2
Secondary 1
Primary
Junction
Box
Disconnect
Electrical Panel
Power Line
2+Ground
Power Line
2+Ground
Connection Cable 3 wire and a ground (4 wires)
Voltage Rating 1 Ø 208/230V (60Hz)
Operating Range 187 - 264V
Dedicated 208/230 15A
breaker for branch box.
Cable Cable Size Remarks
Power Supply Cable 14 AWG 2 cable + Ground, 1 Ø 208/230V
Connection Cable 14 AWG 3 cable + Ground, 1 Ø 208/230V
Breaker Capacity (A)
HVACR Breaker* 15
* When installing this system in high humidity locations, install using ground fault equipment breakers (often referred to in other countries as an ELCB earth leakage
current breaker) to reduce the risk of leaking current which may result in electric shock or potential fire. We suggest installing GFEB breakers or follow local
electrical code. This system uses an inverter, which means that when used with a ground fault breaker you must use breakers that can handle higher harmonics
such as a (GFEB) Ground Fault Equipment Breaker (30 mA or greater) in order to prevent malfunctioning of ground fault device.
* When installing this system in high humidity locations, install using ground fault equipment breakers (often referred to in other countries as an ELCB earth leakage
current breaker) to reduce the risk of leaking current which may result in electric shock or potential fire. We suggest installing GFEB breakers or follow local
electrical code. This system uses an inverter, which means that when used with a ground fault breaker you must use breakers that can handle higher harmonics
such as a (GFEB) Ground Fault Equipment Breaker (30 mA or greater) in order to prevent malfunctioning of ground fault device.
21b
