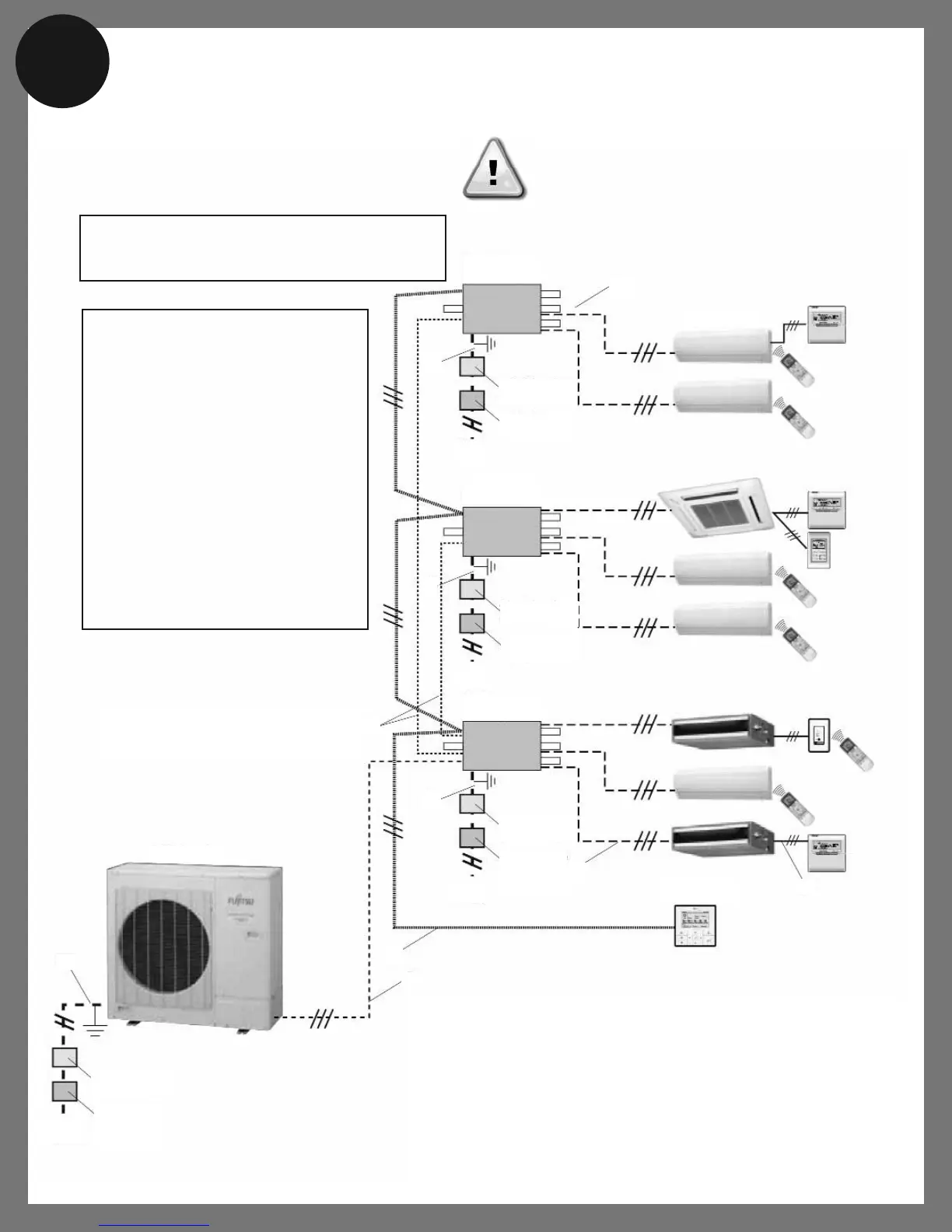

Basic Wiring Overview
Refer to installation manual for complete wiring and design criteria.
39,000 Btu Minimum connected capacity
62,000 Btu Maximum connected capacity
Outdoor Unit Electrical Requirements.
40A Breaker 8AWG 2+Ground
*Caution:
When installing this system in high humidity
locations, install using ground fault equipment
breakers (often referred to in other countries
as an ELCB earth leakage current breaker) to
reduce the risk of leaking current which may
result in electric shock or potential fire. We
suggest installing GFEB breakers or follow
local electrical code. This system uses an
inverter, which means that when used with a
ground fault breaker you must use breakers
that can handle higher harmonics such as a
(GFEB) Ground Fault Equipment Breaker
(30 mA or greater) in order to prevent
malfunctioning of ground fault device.
*
*
1 - Communication wires [Outdoor unit to Primary (Branch Box) B.B.]
2 - Communication wires [Primary B.B. to Secondary B.B.]
3 - Central remote controller wires [Central remote controller to B.B.]
4 - Power supply and Communication wires [B.B. to indoor units]
5 - Power supply [Outdoor unit]
6 - Power supply [Branch Box]
7 - Remote control wires [Indoor units to Remote Controller]
Branch Box 3
Secondary
Circuit Breaker
(over current)
Earth Leakage
Breaker*
Indoor Units
Power
Supply
Branch Box 2
Secondary
Circuit Breaker
(over current)
Earth Leakage
Breaker*
Power
Supply
Branch Box 1
Primary
Circuit Breaker
(over current)
Earth
Leakage
Breaker*
Power
Supply
Central Remote
Control
Outdoor Unit
Circuit Breaker
(over current)
Earth
Leakage
Breaker*
Power
Supply
5
1
3
4
7
6
2
6
8
6
WARNING!
Do not turn on power to system or branch boxes before
completing full evacuation and refrigerant charging!
