Fujitsu Inverter Halcyon 9374379378 - TEMPERATURE SET BACK TIMER; Setting the Set Back Timer; Operating the Set Back Timer

En-8

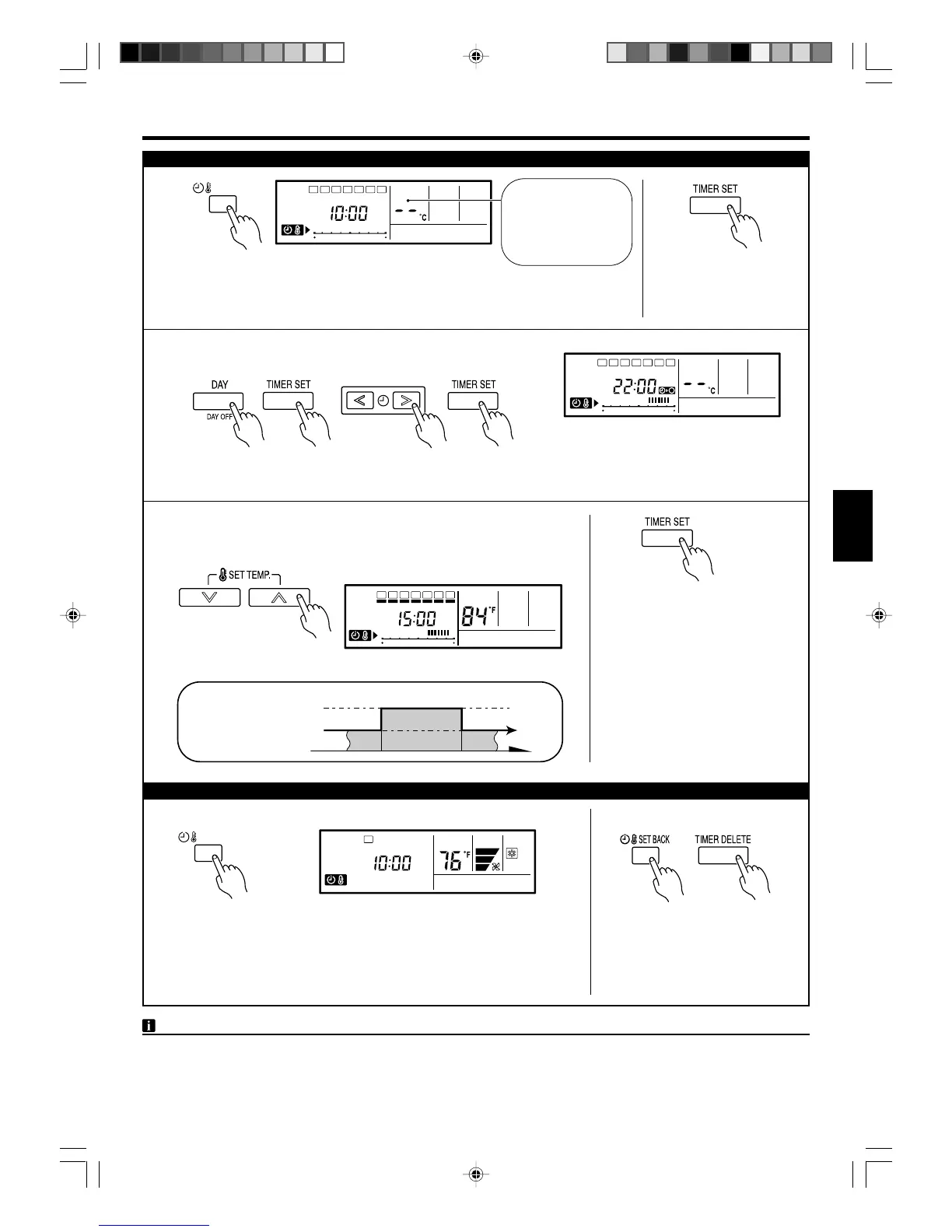

TEMPERATURE SET BACK TIMER
Press the SET BACK button to change to the SET BACK con-
firmation display.
The SET BACK operating time and the set temperature will
be displayed.
2
Press the TIMER SET button
for 2 seconds or more.
1
3
● Day setting ● Operating time setting
Follow the same procedures to set the operating time as those for the weekly timer. The DELETE button is also used
as described in the procedures for the weekly timer.
4
NOTES
• The SET BACK timer only changes the set temperature, it cannot be used to start or stop air conditioner operation.
• The SET BACK timer can be set to operate up to two times per day but only one temperature setting can be used.
• The SET BACK timer can be used together with the ON, OFF, and weekly timer functions.
• The SET BACK operating time is displayed only in the SET BACK confirmation display. (Refer to step 1 for the SET BACK
confirmation display.)
SET BACK
SU MO TU WE TH FR SA
369 12 15 18 21
SU MO TU WE TH FR SA
369 12 15 18 21
ex. When setting all days together
● Temperature setting
Press the SET TEMP. buttons to set the
temperature. (The temperature setting
range is the same as the range for the
operation mode.)
ex. Operating time 15:00–22:00
5
Repeat steps 3 and 4.
Press the TIMER SET button for
2 seconds or more to complete
the temperature SET BACK
timer settings.
ON
OFF
76°F
76°F
84°F
SET BACK temperature
Normal temperature
Temperature SET BACK timer operation
● To start
SET BACK
Press the SET BACK button. The SET BACK confirmation display appears
for 5 seconds, and then the timer starts automatically.
ex. Display during SET BACK timer operation
(The operating time will not be displayed.)
● To cancel
Press the SET BACK button, and then
press the TIMER DELETE button while
the SET BACK confirmation display is
displayed. Even if the SET BACK but-
ton is pressed again, the SET BACK
timer will be cancelled.
Temperature SET BACK timer setting
SU MO TU WE TH FR SA
369 12 15 18 21
If there is no existing
SET BACK tempera-
ture setting, “- -” will
be displayed for the
temperature.
SU MO TU WE TH FR SA
1
3
2
4
1
2
08M516_9374379378_en 2009.01.19, 14:128
