9
Locating the Controls and Connectors

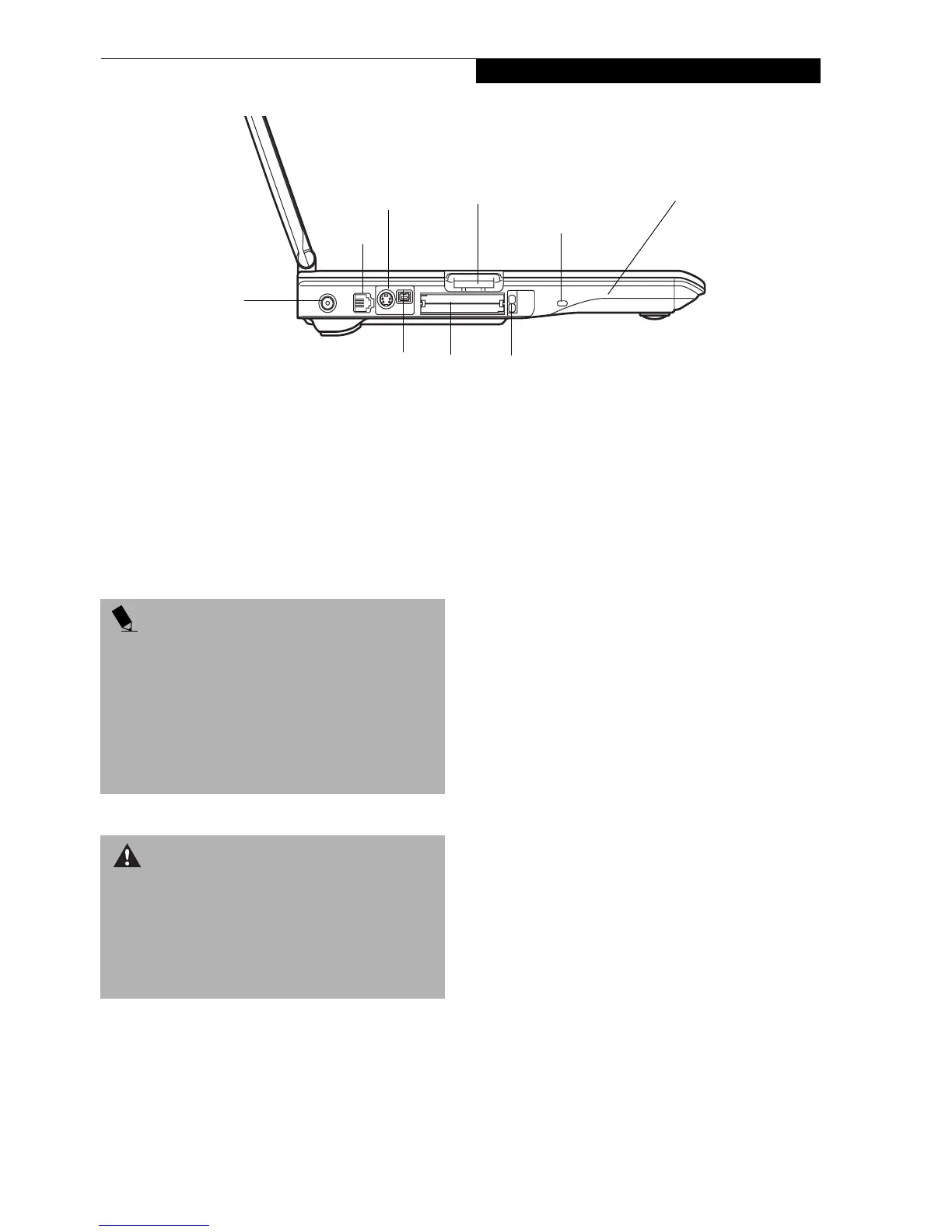

Figure 2-4 LifeBook notebook left-side panel
LEFT-SIDE PANEL COMPONENTS
The following is a brief description of your LifeBook
notebook’s left-side components. (Figure 2-4)
Modem (RJ-11) Telephone Jack
The Modem (RJ-11) telephone jack is for attaching a tele-
phone line to the internal 56K modem. (See Modem (RJ-
11) Telephone Jack on page 47 for more information.)
S-Video Out Port
The S-Video output is used to transmit a higher resolu-
tion video signal to a compatible TV or VCR.(See S-Video
Out Port on page 48 for more information.)
Memory Stick/SD Card Slot
The Memory Stick/Secure Digital (SD) card slot allows
you to install a flash memory card for data storage. This
architecture allows you to transfer data between a variety
of different digital devices. (See Installing Memory Stick/
SD Cards on page 42 for more information.)
Anti-theft Lock Slot
The anti-theft lock slot allows you to attach an optional
physical lock-down device.
PC Card Slots
The PC Card Slots allow you to install two Type I/II PC
Cards or one Type III PC Card. (See PC Cards on page 44
for more information.)
IEEE 1394 (4-pin) Port
The 1394 port is used to connect between your LifeBook
notebook and a peripheral such as a digital video
camera.(See IEEE 1394 Port on page 47 for more informa-
tion.)
DC Power Jack
The DC power jack allows you to plug in the AC adapter
or the optional Auto/Airline adapter to power your
LifeBook notebook and charge the internal Lithium ion
battery.
PC Card
PC Card Eject Buttons
Anti-Theft Lock Slot
DC Power Jack
S-Video
Out Port
Memory Stick/
SD Card Slot
Modem
Jack
Slots
IEEE 1394
(4-pin) Port
Wireless LAN Antenna
(approximate location,
inside chassis). Wireless
LAN models only.
POINT
■
The internal modem is designed to the ITU-T V.90
standard. Its maximum speed of 53000bps is the
highest allowed by FCC, and its actual connection
rate depends on the line conditions. The maximum
speed is 33600bps at upload.
■
The internal modems on all LifeBook notebooks
from are certified for use in the United States and
Canada. The modem may be certified in other coun-
tries.
WARNING
The internal modem is not intended for use with Digital
PBX systems. Do not connect the internal modem to a
Digital PBX as it may cause serious damage to the inter-
nal modem or your entire LifeBook notebook. Consult
your PBX manufacturer’s documentation for details.
Some hotels have Digital PBX systems. Be sure to find
out BEFORE you connect your modem.
