Locating the Controls and Connectors

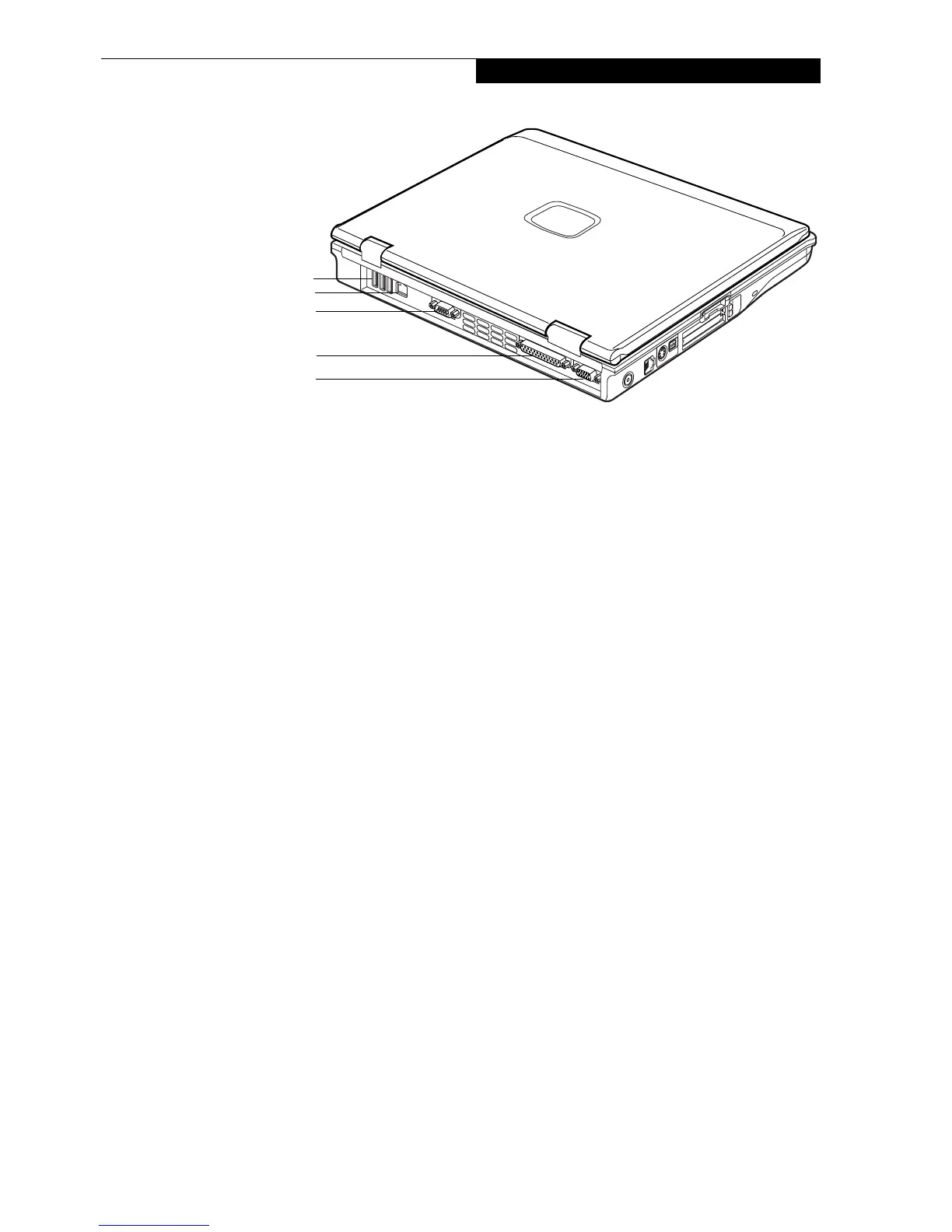

Figure 2-6 LifeBook notebook back panel
BACK PANEL COMPONENTS
The following is a brief description of your LifeBook
notebook’s back panel components. (Figure 2-6)
USB Ports
The four USB 2.0 ports (three on the rear, one on the
right side) allow you to connect Universal Serial Bus
devices. (See Universal Serial Bus Port on page 47 for more
information.)
LAN Jack (RJ-45)
The LAN jack is designed to accept a Local Area Network
(LAN) RJ-45 plug. (See Internal LAN (RJ-45) Jack on
page 47 for more information.)
Serial Port
The serial port allows you to connect serial RS-232
devices, such as serial printers or serial scanners.
Parallel Port
The parallel port allows you to connect parallel devices,
such as a printer. (This is also sometimes referred to as an
LPT port.) (See Parallel Port on page 47 for more informa-
tion.)
External Monitor Port
The external monitor port allows you to connect an
external monitor. (See External Monitor Port on page 48
for more information.)
Parallel Port
LAN Jack (RJ-45)
USB Ports (Qty. 3)
External Monitor Port
Serial Port
