Fujitsu PRIMEQUEST 2400E3 System Configuration Guide

System Configuration Guide
PRIMEQUEST 2800B3
System Board for 2800B3
MC-3HSB91B / MCX3HSB91B (LD)
- Min. 1 x SB needs to be mounted. Max. 4 x SB can be mounted per Base Unit.
- The System Board does not include a security chip called TPM.
- Neither CPU nor Memory is included. CPU and Memory need to be ordered separately.
Min. 1 x CPU and 1 x Memory need to be mounted on each SB.
- If 1 x CPU is mounted on a SB, min. 1 x Memory (2 x DIMMs) need to be mounted.
Max. 12 x Memory (24 x DIMMs) per CPU can be mounted.
- If 2 x CPUs are mounted on a SB, min. 2 x Memory (4 x DIMMs) need to be mounted.
Max. 24 x Memory (48 x DIMMs) can be mounted.
TPM module V1.2
MC-6HTP11 / MCX6HTP11(LD)
- Available except for China
TPM module V2.0
MC-6HTP21 / MCX6HTP21(LD)
- Available except for China
CPU

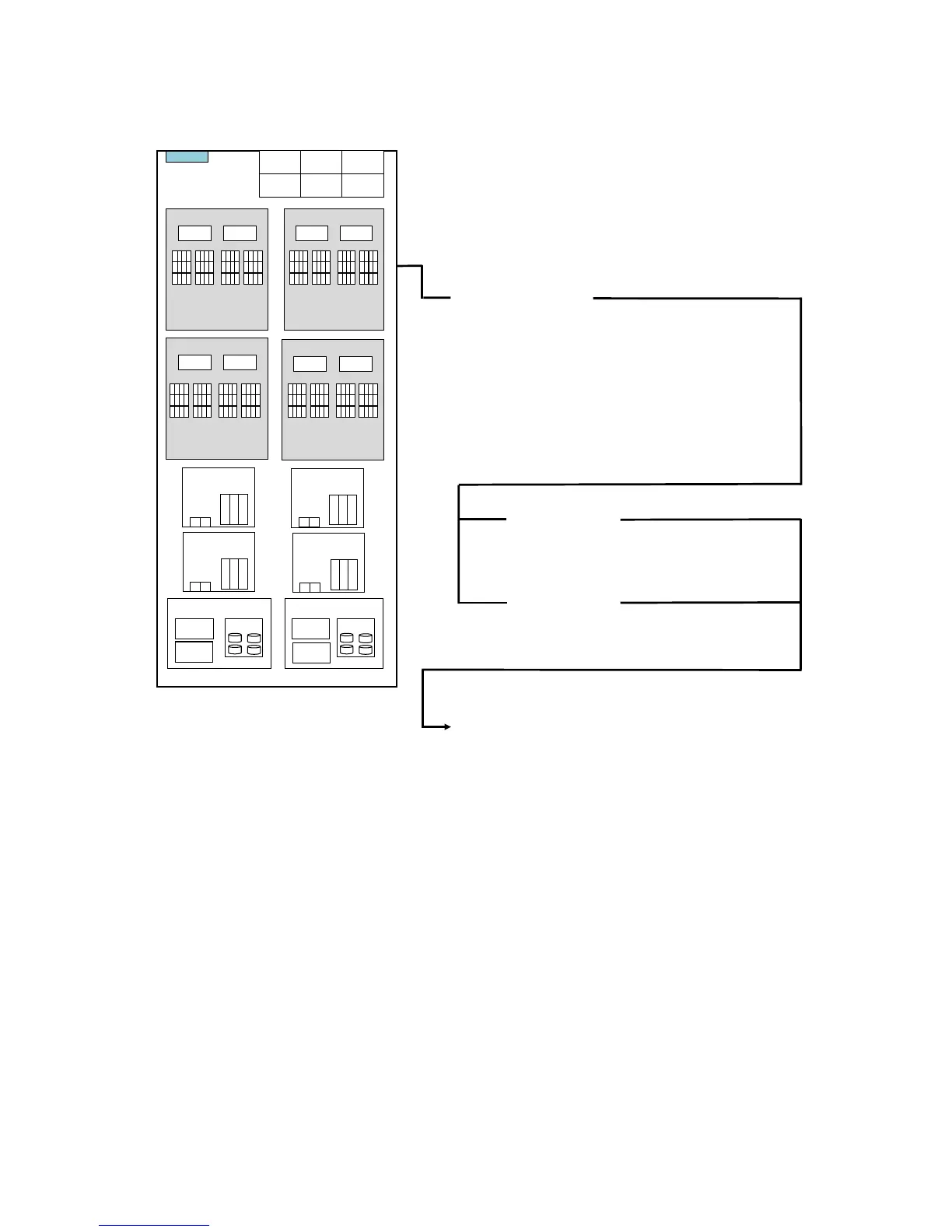

3. System Board
RAID
カード
RAID
カード
MMB #0
PSU/
FAN #0
PSU/
FAN #1
PSU/
FAN #2
PSU/
FAN #3
PSU/
FAN #4
PSU/
FAN #5
I/O Unit #0
PCI Slot
LAN port
I/O Unit #2
PCI Slot
LAN port
I/O Unit #1
PCISlot
LAN Port
I/O Unit #3
PCI Slot
LAN Port
Disk Unit #0
HDD
RAID
Card
Disk Unit #1
HDD
RAID
Card
SB #2
CPU CPU
Memory
Memory
SB #1
CPU CPU
SB #3
CPU CPU
Memory Memory Memory Memory
SB #0
CPU CPU
Memory
Memory
RAID
Card
RAID
Card
FUJITSU Server PRIMEQUEST 5 / 28
