Fujitsu PRIMEQUEST 2800B3 - FIGURE 2.30 Pci_Box Connection Diagram (Maximum Configuration) for Mounted Four Iou_1 Gbes; FIGURE 2.31 Pci_Box Connection Diagram (Maximum Configuration) for Mounted Four Iou_10 Gbes

CHAPTER 2 Hardware Configuration
2.12 PCI_Box
68
CA92344-0534-07
For details on the connection conditions of the PCI_Box, see ‘2.12.7 PCI _Box connection conditions’.

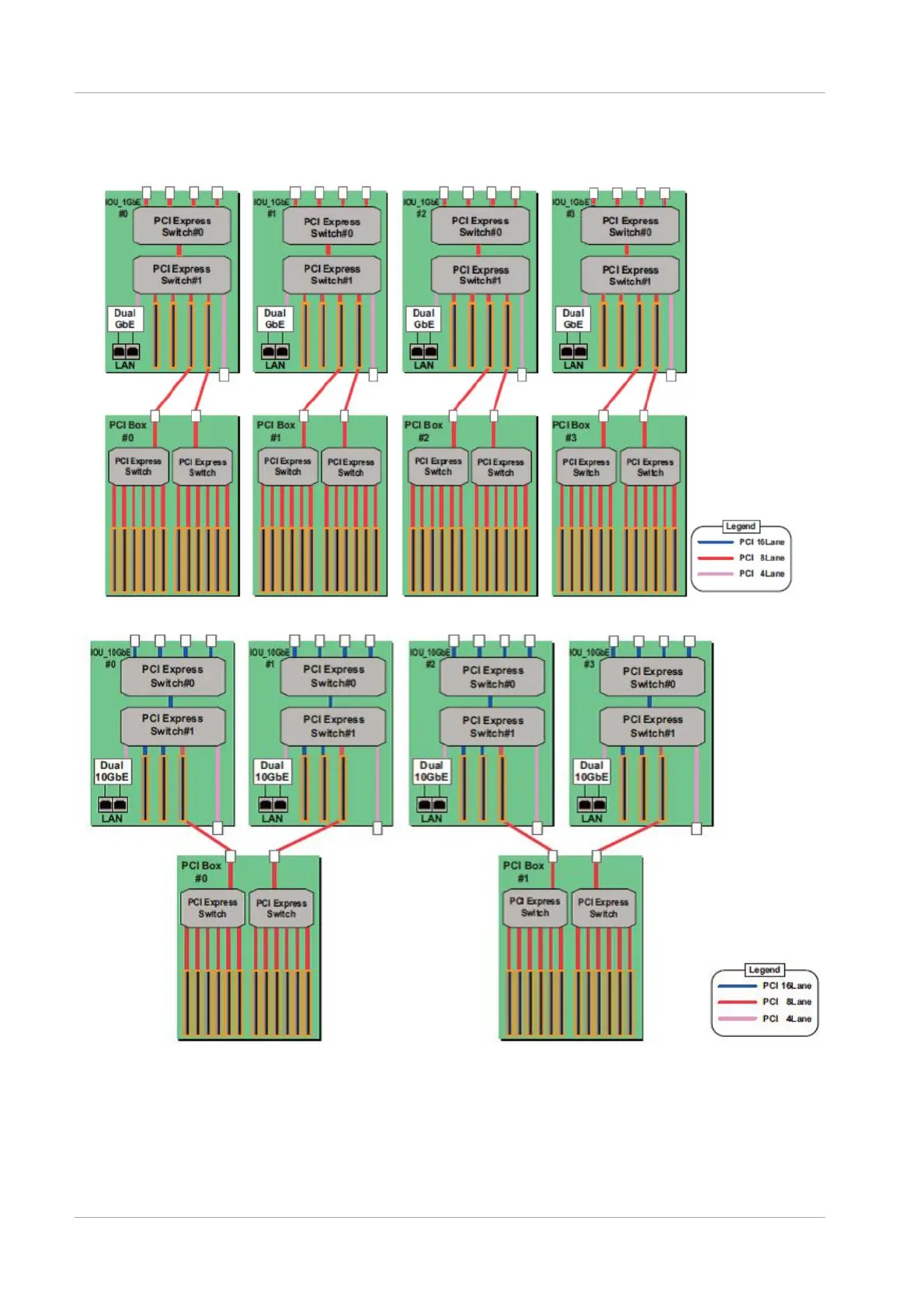

FIGURE 2.30 PCI_Box connection diagram (maximum configuration) for mounted four IOU_1GbEs
FIGURE 2.31 PCI_Box connection diagram (maximum configuration) for mounted four IOU_10GbEs
