RX2530 M4
Operating Manual 53
5.4.1 Connecting the server to the direct current
(optional DC PSU)

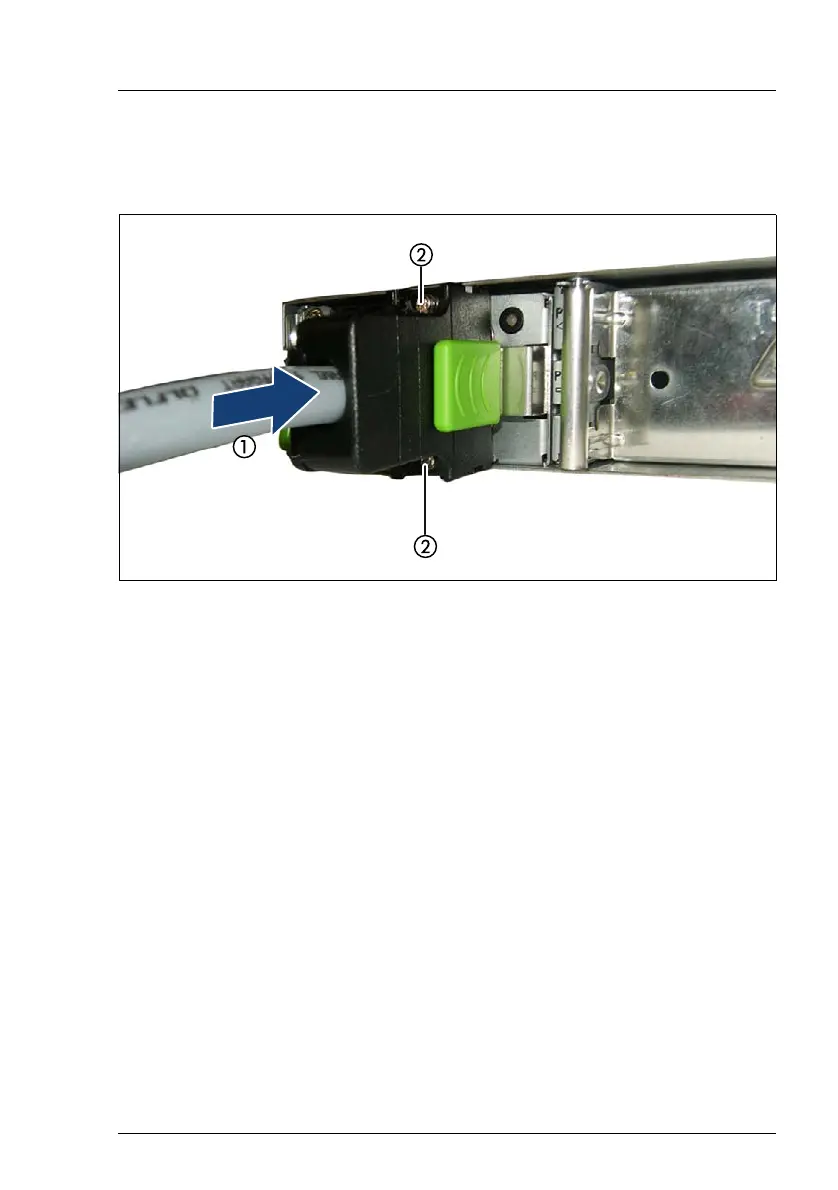

Figure 5: Connecting the server to the dc voltage
Ê Connect the power cord with the connector to the PSU of the server (1).
Ê Attach the connector with the 2 screws (2).
Ê Connect the wire labeled "Ground" to an appropriate earth ground.
Ê Connect the other two wires of the power cable to the current bar on the rack
(see Technical Manual of the rack).
