Starting up and operation
LAN indicators

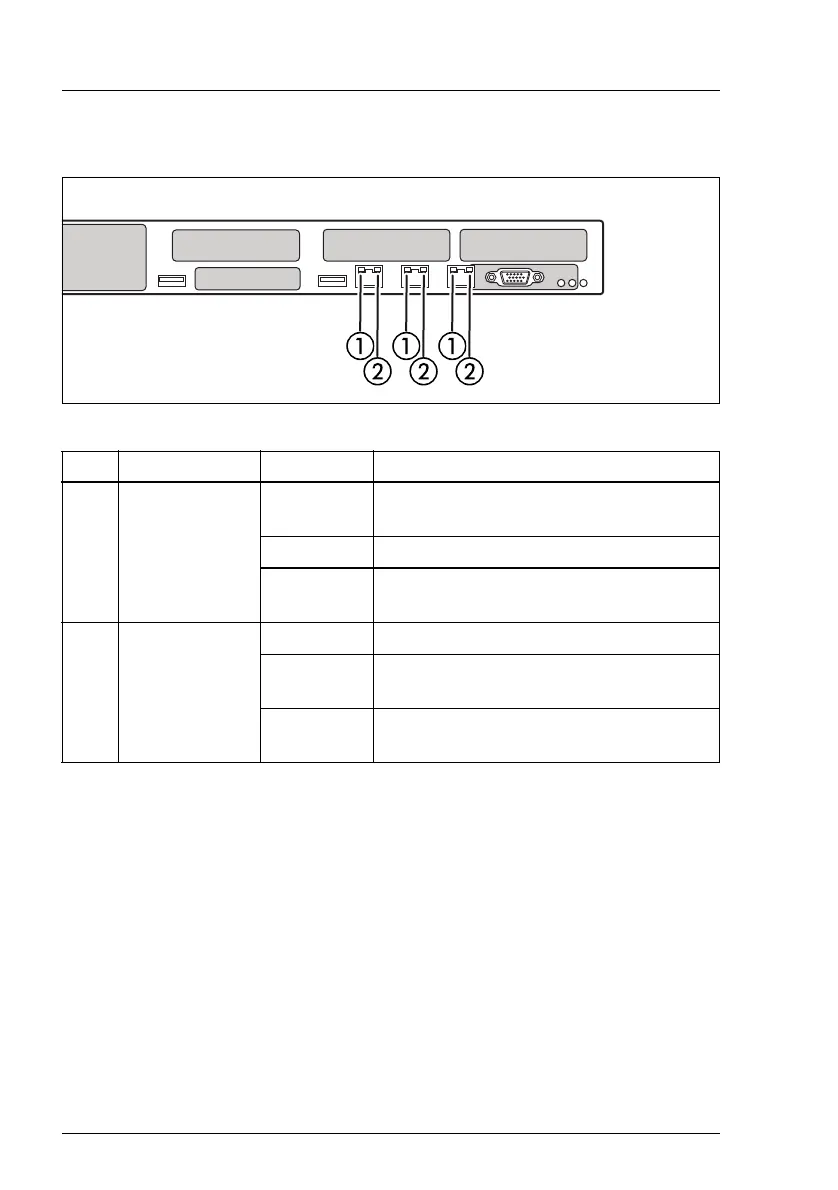

Figure 14: LAN indicators
I Depending on the BIOS settings, the shared LAN connector may also be
used as a management LAN connector. For further information, please
refer to the corresponding BIOS Setup Utility reference manual.
Pos. Indicator Status Description
1
LAN
link/transfer
indicator
green on
A LAN connection has been
established.
off LAN is not connected.
green
flashing
LAN data transfer is in progress.
2
LAN speed
indicator
yellow on Data traffic at a transfer rate of 1 Gbit/s.
green on
Data traffic at a transfer rate of
100 Mbit/s.
off
Data traffic at a transfer rate of
10 Mbit/s.
