Connecting peripheral devices
Peripheral devices, such as the keyboard and mouse, etc., are connected to the server in the following
order.
6

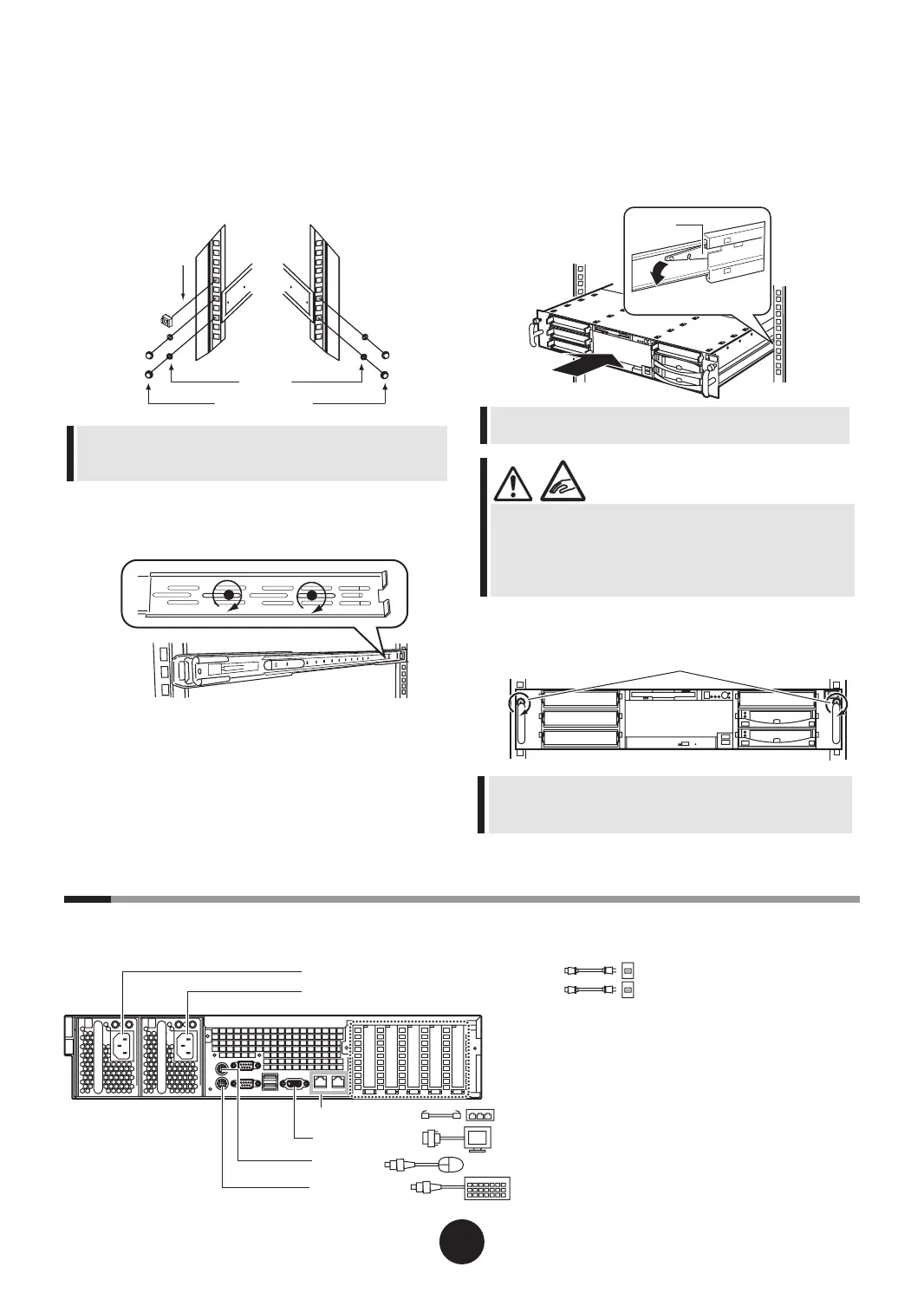

Attach the slide rail assemblies and
insert the rack nuts into the rack
holes.
Attach slide rails with washers.
Insert latches of the rack nuts from inside of the
rack bracket.
Left and right slide rails are different.
Check the letter at the slide rail for correct installa-
tion.
7
Tightly fasten the binding head screws
on the rear slide rails.
8
Insert the server to t into the rail as-
sembly inside the rack.
Insert the inner rail of the server to the grooves of
the slide rail and slide the server towards the back
to install to into the rack.
�
Rails have lock.
When pulling out the server, press the lock to release.
- Be careful not to pinch your ngers or catch any cloth-
ing when sliding the server into the cabinet. This could
cause injury.
- For the rst time installation, make sure to slide the
server backward and x it to the rack securely.
9
Fasten the server to the rack.
- Dispose unused parts for rack installation.
- Install the attached blank panel to the rack, where
the server or peripheral devices are not installed.
