TX100 S3
Operating Manual
51
6
S
t
artin
g up an
d ope
rati
on
V
CAUT
ION!
Foll
ow the safety
instruc
tions in cha
pter
"Important i
nformation" on
page
27
.
6.1
Opening the server

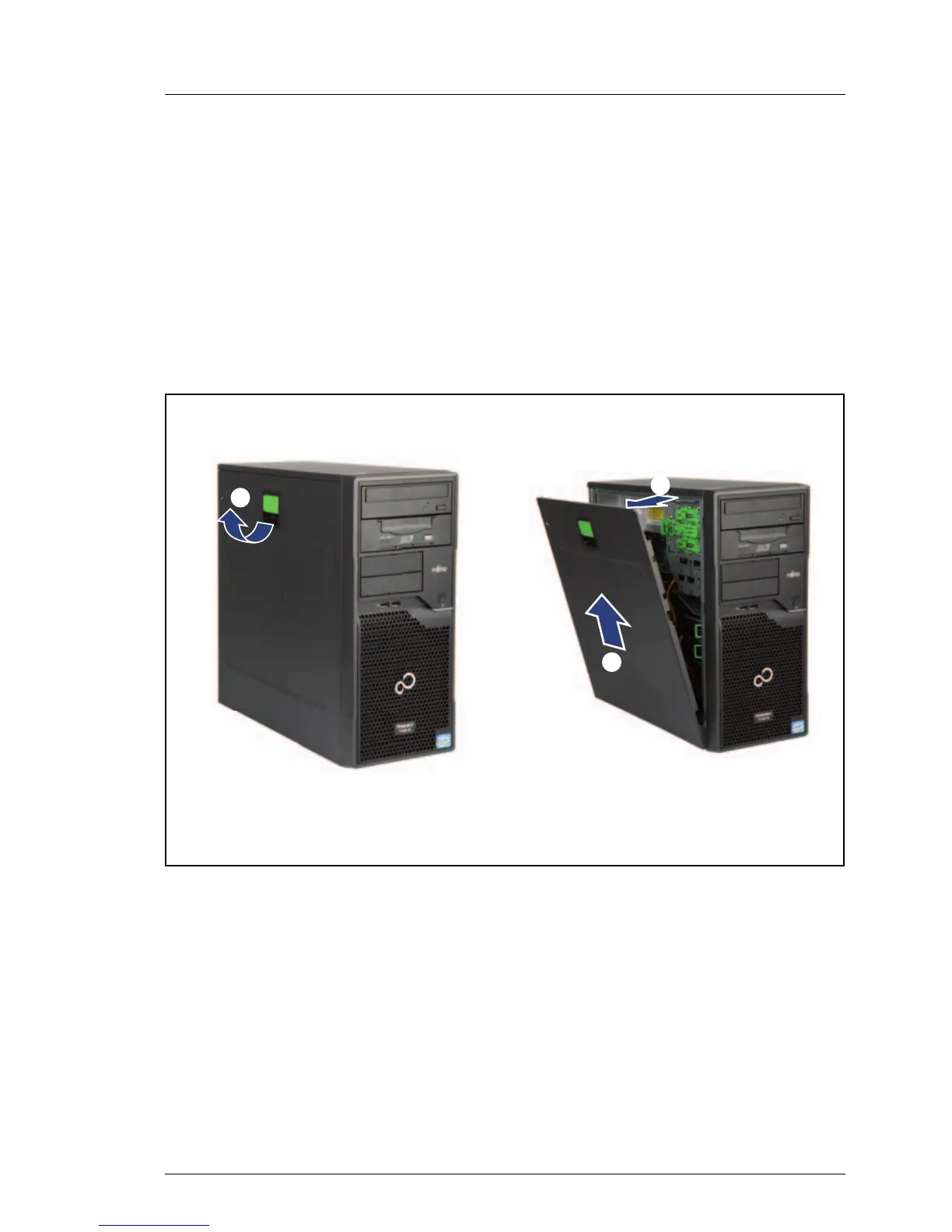

Figure 4: Removing
the cov
er
Ê
Pull up on the locking lever (1).
Ê
Open the side cover (2).
Ê
Remove the side cover (3).
/
0
1
50
52
Table of Contents
Default Chapter
2
Copyright and Trademarks
2
Table of Contents
7
1 Introduction
11
Concept and Target Groups for this Manual
11
Documentation Overview
12
Notational Conventions
14
2 Functional Overview
15
Features
15
Server Specification
20
3 Installation Steps, Overview
25
4 Important Information
27
Safety Instructions
27
Energy Star
36
CE Conformity
38
FCC Class a Compliance Statement
39
Transporting the Server
40
Environmental Protection
41
5 Hardware Installation
43
Unpacking the Server
44
Setting up the Server
45
Connecting Devices to the Server
46
Connecting the Server to the Mains
47
Notes on Connecting/Disconnecting Cables
49
6 Starting up and Operation
51
Opening the Server
51
Control Elements and Indicators
52
Front of the Server
52
Control Elements
53
Indicators on the Control Panel
53
Rear of Server
54
Indicators on the Connector Panel: LAN Indicators
54
Switching the Server on and off
55
Configuring the Server
59
Configuring the Onboard SATA Controller
59
Configuring the SAS/SATA RAID Controller
60
Configuring the Server and Installing the Operating System with the Serverview Installation Manager
61
Configuring the Server and Installing the Operating System Without the Serverview Installation Manager
62
Cleaning the Server
63
7 Property and Data Protection
65
BIOS Setup Security Functions
65
8 Troubleshooting and Tips
67
Power-On Indicator Remains Unlit
67
Server Switches Itself off
68
Screen Remains Blank
68
Flickering Stripes on Monitor Screen
69
No Screen Display or Display Drifts
69
No Mouse Pointer Displayed on Screen
69
Incorrect Date and Time
70
Drives Reported as "Dead" When Starting System
70
Added Drive Reported as Defective
70
Error Message on Screen
71
Expansion Cards or Onboard Devices Not Recognized
71
Temperature Warning
71
No Effect of Keyboard or Mouse
71
Optical Drive Cannot Read Data
72
