Instructions relating to "the indoor unit's indicator lamp" (**) are
applicable to "LARGE CEILING TYPE", "UNIVERSAL FLOOR /
CEILING TYPE", "CASSETTE TYPE", "WALL MOUNTED TYPE",
"COMPACT WALL MOUNTED TYPE" and "CEILING WALL TYPE".
About Vertical Airflow SWING Operation
The range of swing is relative to the currently set airflow direc-
tion.
If the swing range is not as desired, use the remote controller's
VERTICAL AIR FLOW DIRECTION SET button to change the
range of swing.
The SWING operation may stop temporarily when the air condi-
tioner's fan is not operating, or when operating at very low
speeds.
About Horizontal Airflow Swing Operation
The range of swing is relative to the currently set airflow direc
tion.
If the swing range is not as desired, use the remote controller's
HORIZONTAL AIR FLOW DIRECTION SET button to change
the range of swing.
The SWING operation may stop temporarily when the air condi-
tioner's fan is not operating, or when operating at very low speed.
Air flow direction set
Range of swing
to
to
to
to (All range)
Air swing range (Expect for compact wall mounted type indoor unit)
Air direction range

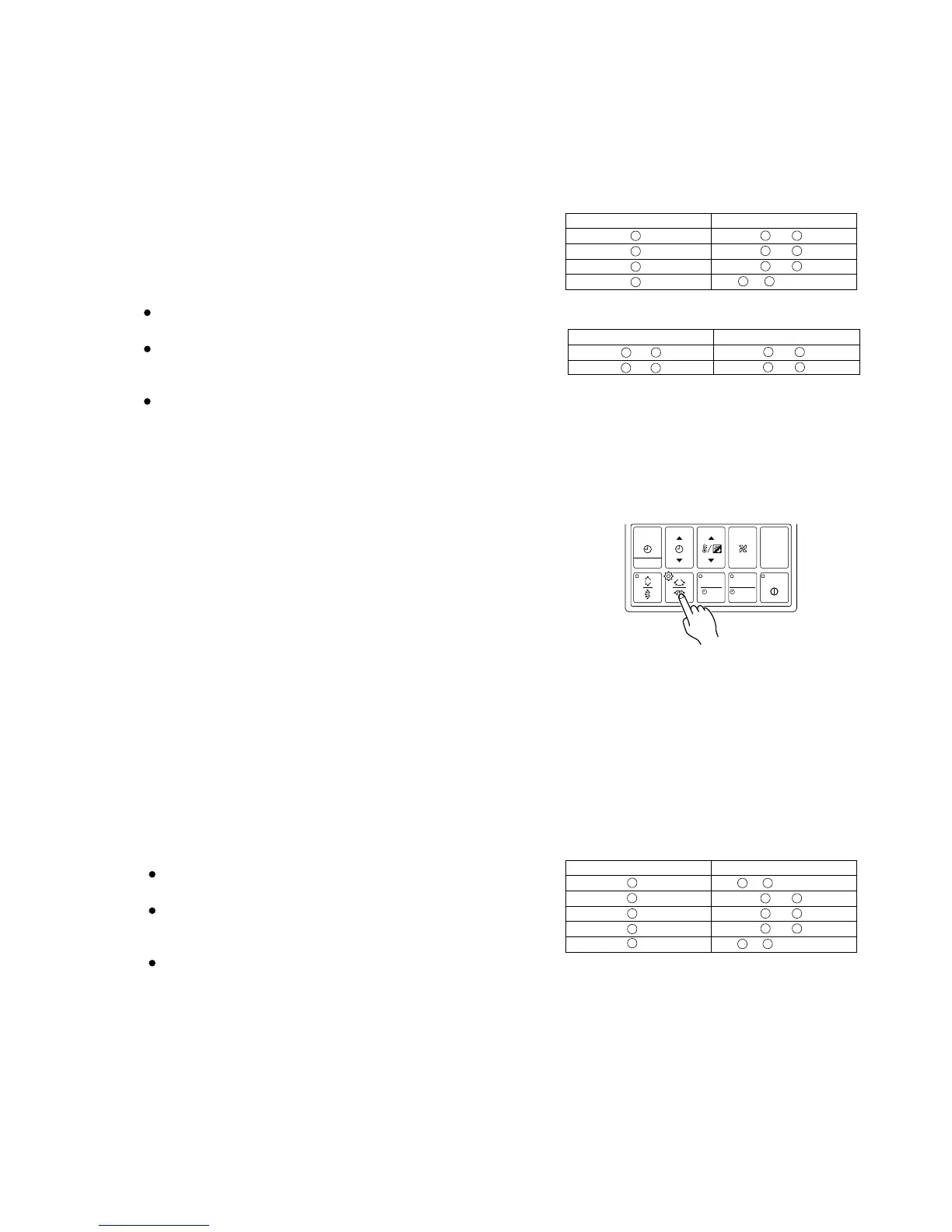

To select Horizontal Airflow SWING Operation
This instructions are applicable to "LARGE CEILING TYPE",
"UNIVERSAL FLOOR / CEILING TYPE", "WALL MOUNTED TYPE"
and "CEILING WALL TYPE".
Press the HORIZONTAL SWING button for more than two seconds.
The remote controller's HORIZONTAL SWING lamp (orange)
**and indoor unit's SWING indicator lamp (HORIZONTAL
SWING) (orange) will light up.
In this mode, the RIGHT/LEFT air direction louvers will swing
automatically to direct the airflow both right and left.
To stop Horizontal airflow SWING Operation
Press the HORIZONTAL SWING button for more than two seconds
once and again.
The remote controller's HORIZONTAL SWING lamp **and indoor
unit's SWING indicator lamp (HORIZONTAL SWING) will go out.
Airflow direction will return to the setting before swing was begun.
Example : When set to horizontal swing.
To Stop Vertical airflow SWING Operation
Press the VERTICAL SWING button for more than two seconds
once and again.
The remote controller's VERTICAL SWING lamp **and indoor
unit's SWING indicator lamp (VERTICAL SWING) will go out.
Airflow direction will return to the setting before swing was begun.
MASTER
CONTROL
FAN
CONTROL
TIMER
MODE
TEMP./DAY
SET TIME
CLOCK ADJUST
START/STOP
SET
DAY OFF
ZONE
ENERGY SAVE
Air flow direction set
Range of swing
to (All range)
to
to
to
to (All range)
1
2
3
4
1
2
2
3
4
4
1 4
1
1
2
3
1 5
3
4
5
5
5
4
3
2
1
04-12
Air flow direction set
Range of swing
to
to
1
2
3
4
1
2
3
4
Air swing range (Compact wall mounted type indoor unit)
or
or
Air swing range
