Fujitsu ScanSnap iX1500 - Installation

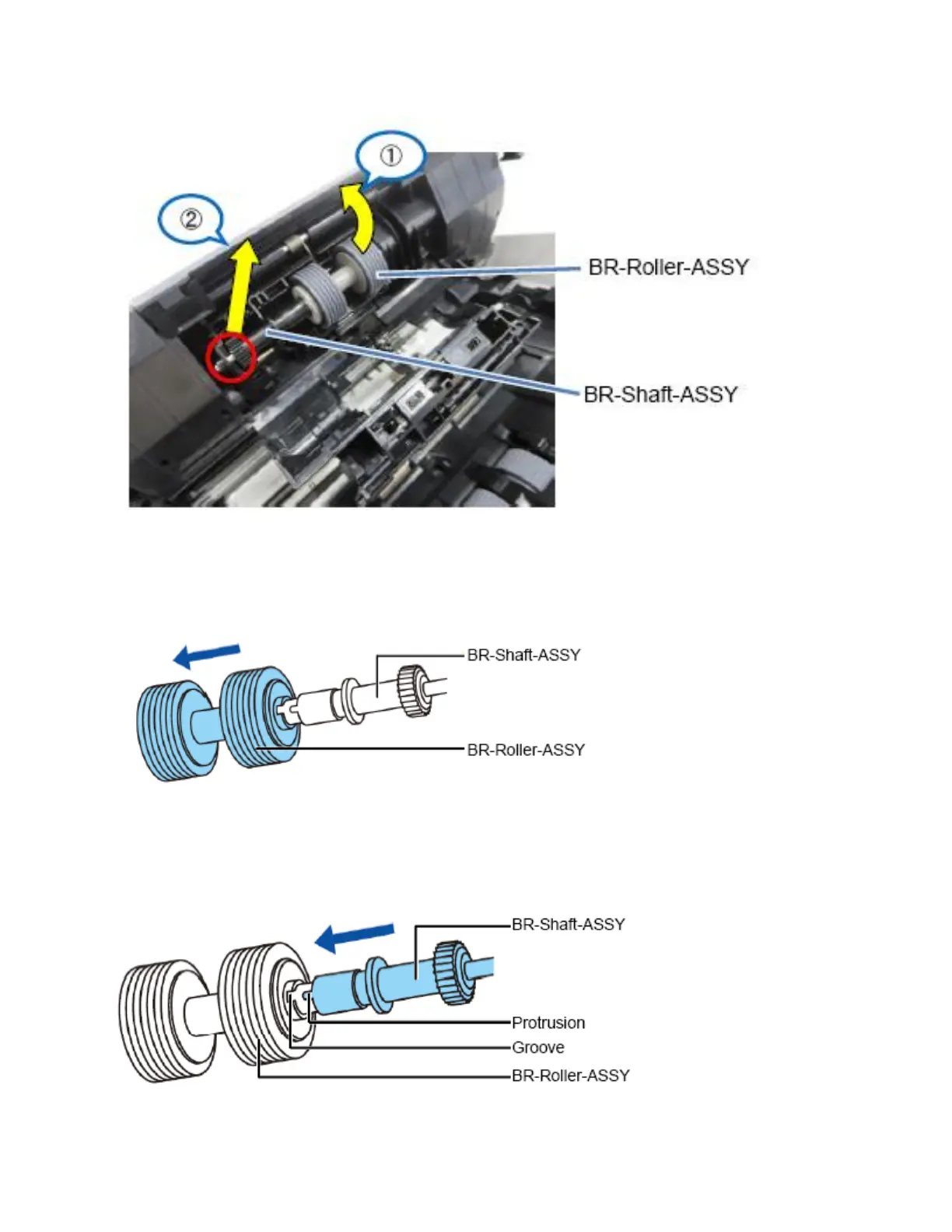

(3) Lift the BR-Roller-ASSY on the right side, remove the right-side shaft (①), and pull out the left-side shaft from the slot
(②).
(4) Remove the BR-Roller-ASSY from the BR-Shaft-ASSY.
Installation
(1) Insert the protrusion on the BR-Shaft-ASSY into the groove of the BR-Roller-ASSY.
