System status LED indicator

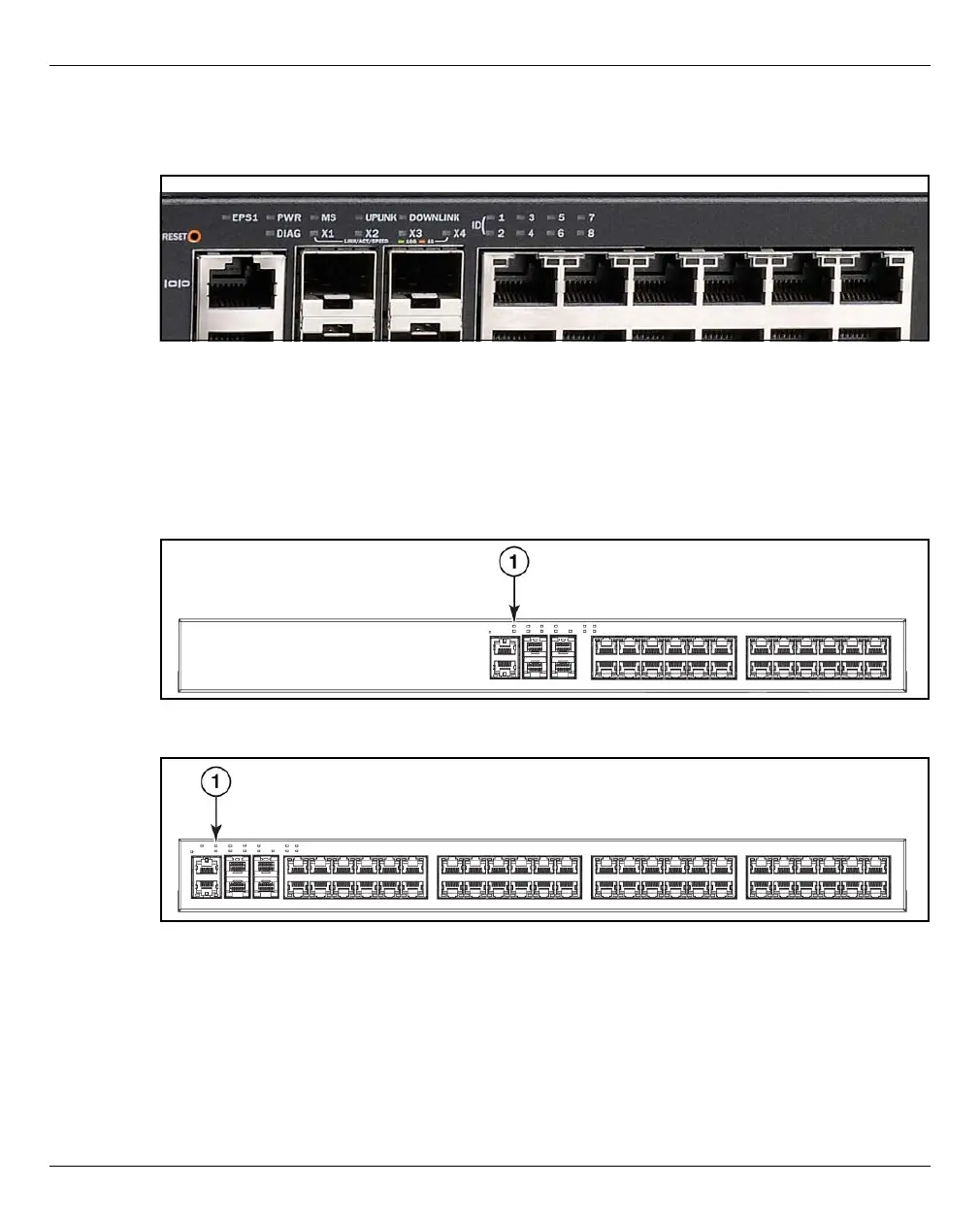

Figure 28: System status LED indicator
The information displayed by the system status LEDs is only relevant for the service
technician. Information on the status of the Net Unit which is relevant for the customer is
displayed by the SE Manager in the main menu Hardware → IP networks.
Power status LED indicator
Figure 29: Power status LED indicator (IXC 6450-24)
Figure 30: Power status LED indicator (IXC 6450-48)
(1) shows the power status LED.
