5.3 Control panel (on the SE700 and SE500)
At the front of the basic rack on the SE700 and SE500, a control panel is located on the
outside. The control panel is connected to the service processor (SVP) of the SU700 /
SU500 of the SE server.
Further information on the SU700 and SU500 is provided in the "Server Unit /390"
Operating Manual [2].

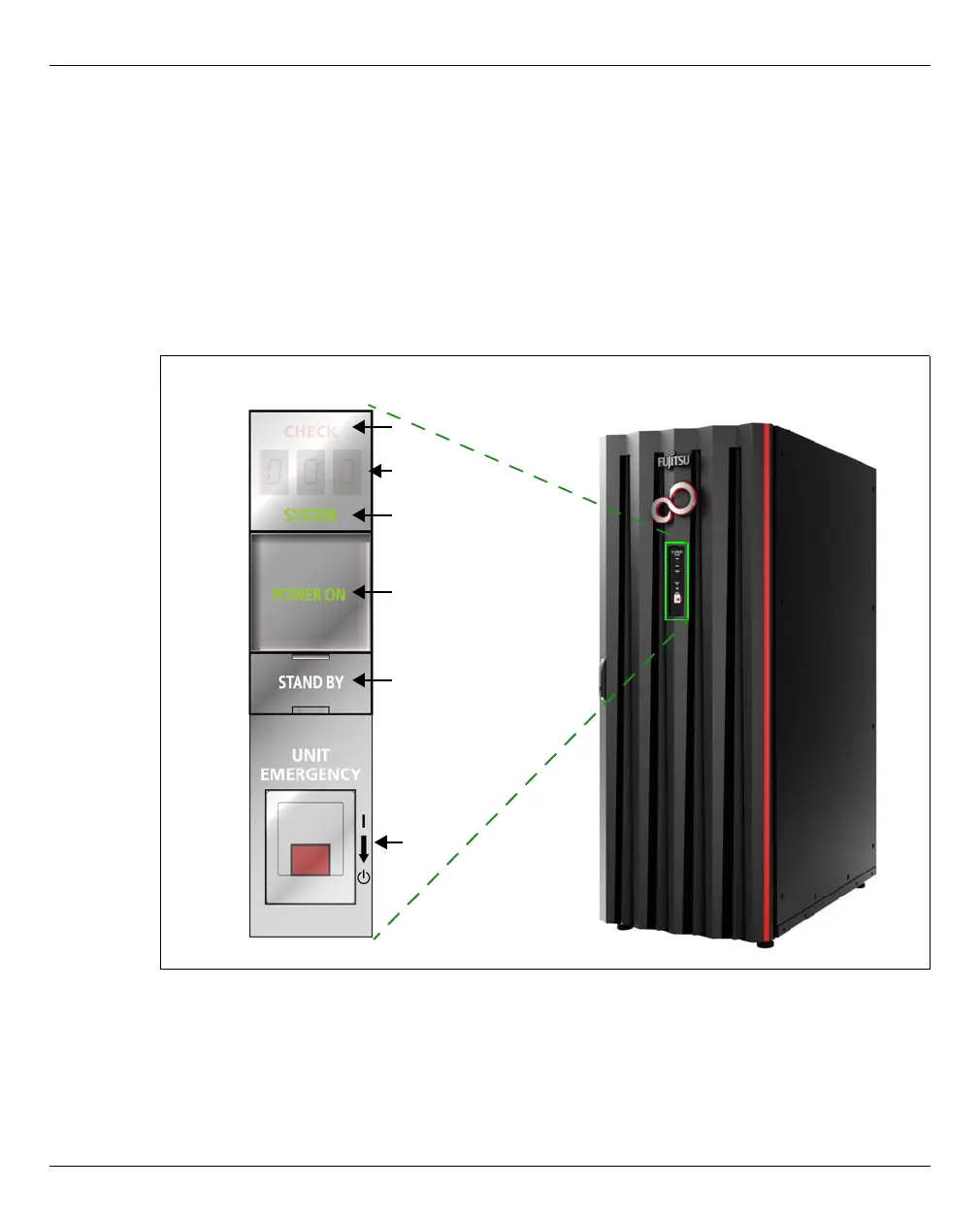

The physical layout of the control panel is shown in the figure below:
Figure 7: Operating panel on the rack of the SE700 / SE700B and SE500 / SE500B
