(1)
(2)
(5)
(3)
(4)

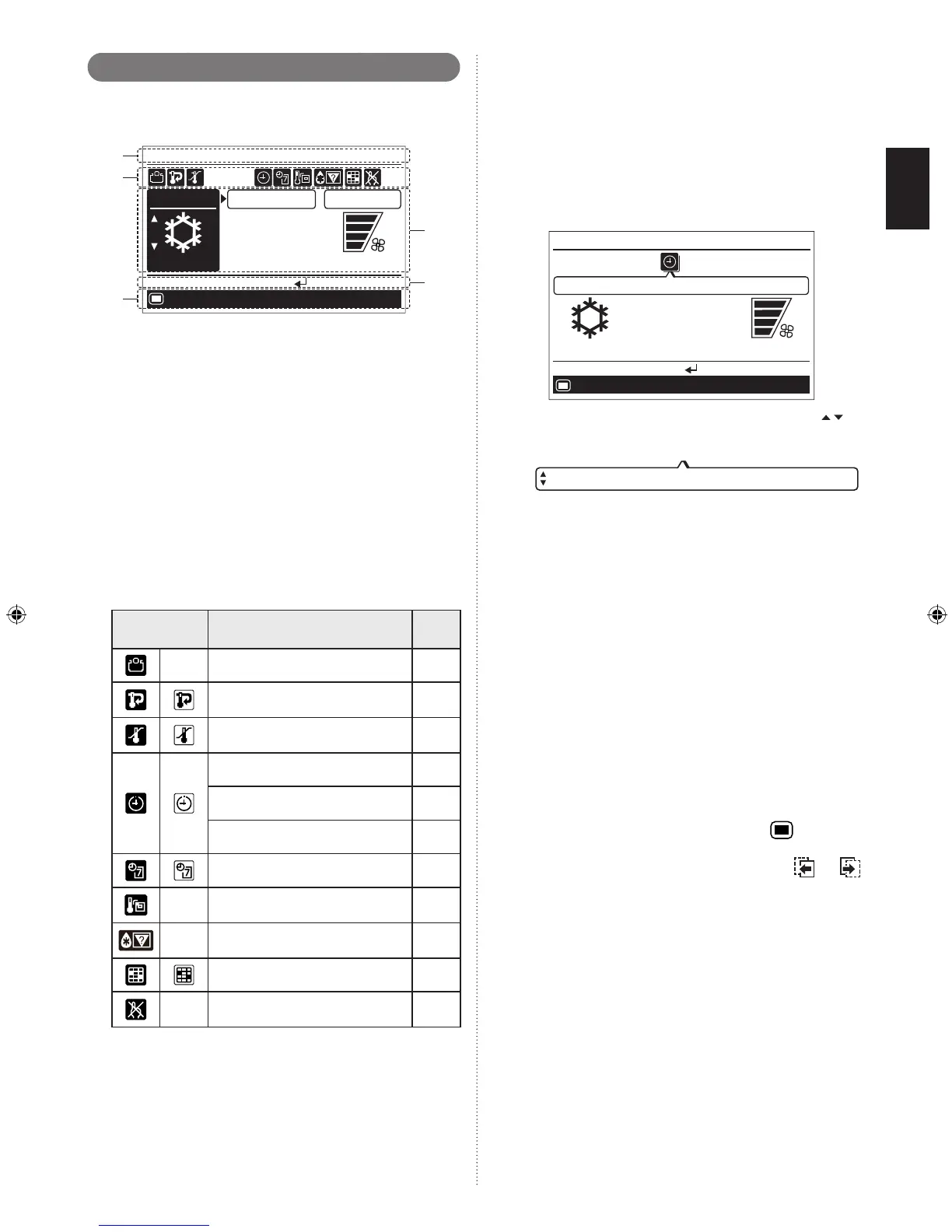

(1) Screen status and current conditions
Shows the current screen name, room temperature, day
of the week, and clock.
NOTES:
The clock can be changed to 24-hour clock, AM/PM •
(12-hour: 12:00–11:59 or 0:00–11:59) clock. (Refer
to “5-2-4. Change display format setting” on
page 18.)
Room temperature indication is available only if the •
“Room temp. display” function is enabled. (Refer to
“5-6. Room temp. display setting” on page 21.)
(2) Icon display
Shows the function that is currently working or set.
NOTE: In this section, all the possible icons are dis-
played for description.
Icon
Function name
See
page
- Economy 9
Set temp. (temperature) auto
return
9
Set temp. (temperature) range
limitation
10
On timer 11
Off timer 12
Auto-off timer 15
Weekly timer 13
-
R.C. (Remote Controller) sensor
control
21
-
Automatic defrosting, oil
recovery, or mode mismatch
24
Filter cleaning notification 20
-
R.C. (Remote Controller)
prohibition
-
White icon on a black background:
Indicates that the function is valid and performing the
function or standby state.
Black icon on a white background:
Indicates that the controller is in non-operating state be-
cause R.C. prohibition on the primary unit is working, or
timer has been set, though the function is valid.
About “Icon check” function:
In “Monitor” screen, you can check the name of the icon
that indicates function currently set.
NOTE: This function is only available when at least 1 icon
is displayed on the icon display.
Message balloon with the function name appears when •
you press the [Enter button] and select the icon by using
the [Cursor button].
Item that has a timer function, remaining time until the •
timer expires is also displayed.
With pressing the [Cursor button (Left/Right)], you can •
check the other icon functions when several icons are
displayed on the “Monitor” screen.
When you press the [Enter button] again, the message •
balloon is closed.
If there is no additional button operation for 3 seconds, •
the icon check function is finished.
(3) Operating condition display
Shows the operating mode, set temperature, and fan
speed that are currently working or set.
Mode display: Operating mode is displayed.•
Set temp. display: Set temperature is displayed.•
Fan display: Fan speed is displayed.•
(4) Operation guidance display
Shows the current operable items and the button to be
pressed.
(5) Screen switch guidance display
Any combination of [Menu button] mark (
) with name
of switchable screen by pressing the [Menu button] or
[Screen switch button (Left/Right)] mark (
or )
with name of switchable screen by pressing the [Screen
switch button (Left/Right)] is displayed.
