１４ .CIRCULATION PUMP removal

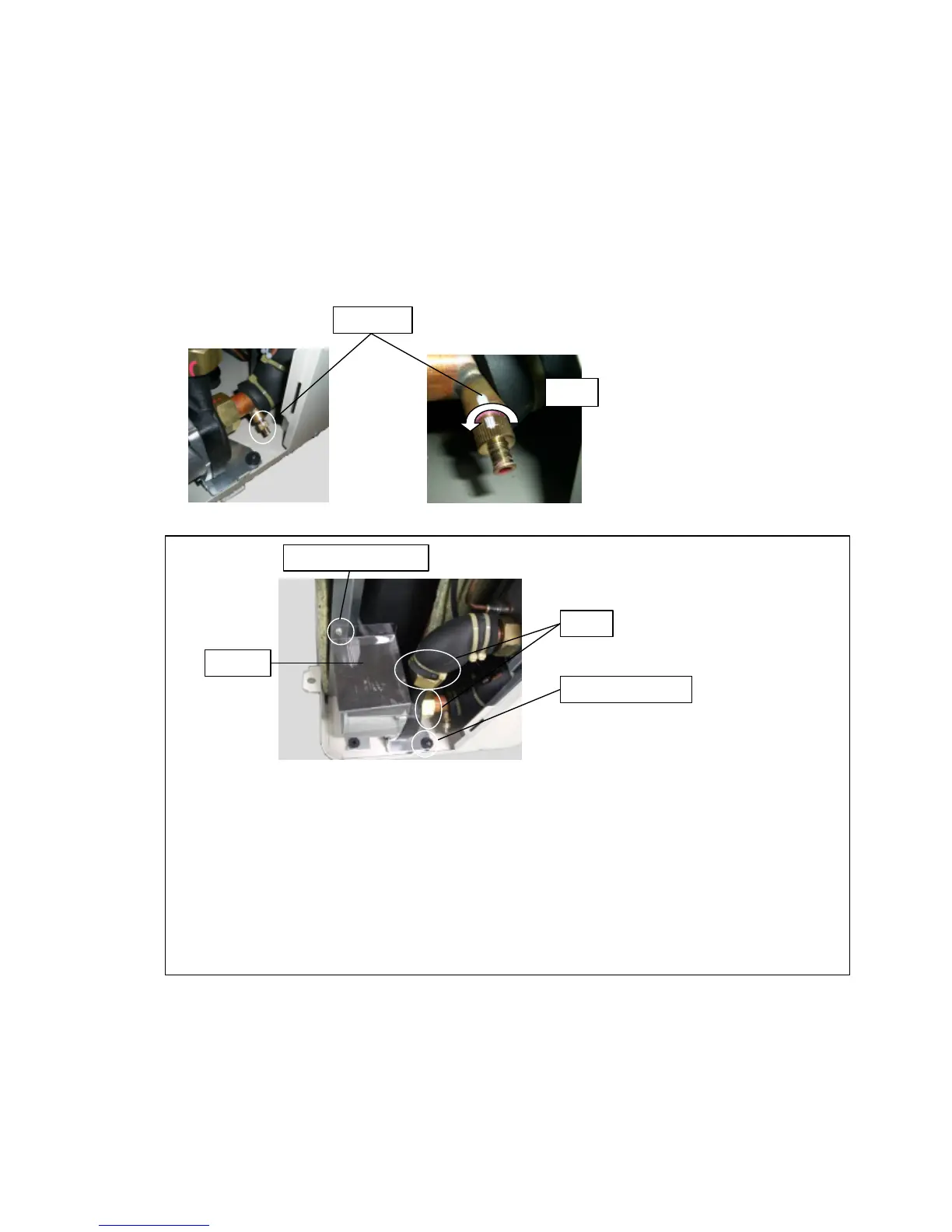

Precautions for exc hange of Pump.
Drain in the water - cycle before work.
Procedure for drain in the water - cycle.
Install a drain pan or drain hose to the DRAIN PLUG.
Open the DRAIN PLUG and drain.
Remove the screw for the cover. (1 place)
Remove the cover.
Remove the nuts for pipes. (2 places)
Remove the screw for the pump. (1 place)
Remove the CIRCULATION PUMP.
Note at the installation.
When take off Nut, remove a packing together.
Tightening torque is from 15.0 to 30.0 N・m.
Screw for the pump
Nut
Cover
Screw for the cover
Drain plug
Loose
for open
