１９ .HEAT EXCHANGER removal

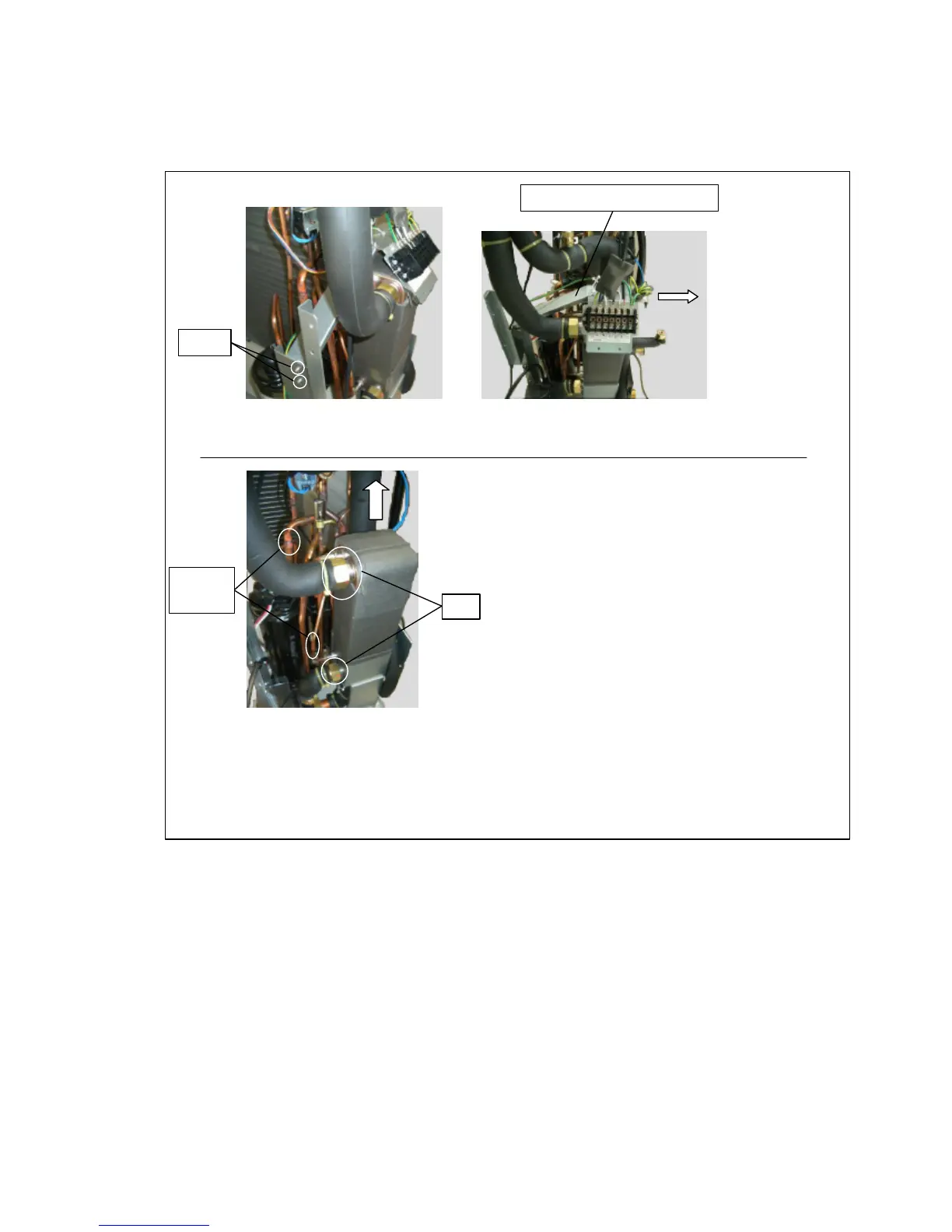

Remove the screws. (2 places) Remove the panel for fixing the terminal block
with the terminal block.
Remove the EEV COIL. (see chapter 9)
Remove the pipes in the refrigerant - cycle by brazing. (2 places, see chapter 30)
Remove the nuts.
Remove the HEAT EXCHANGER by lifting.
Note at the installation.
When take off Nut, remove packing together.
Tightening torque is from 15.0 to 30.0 N・m.
Screw
Panel for fixing the terminal block
Brazing
point
Nut
-29-
