１７ .TANK removal

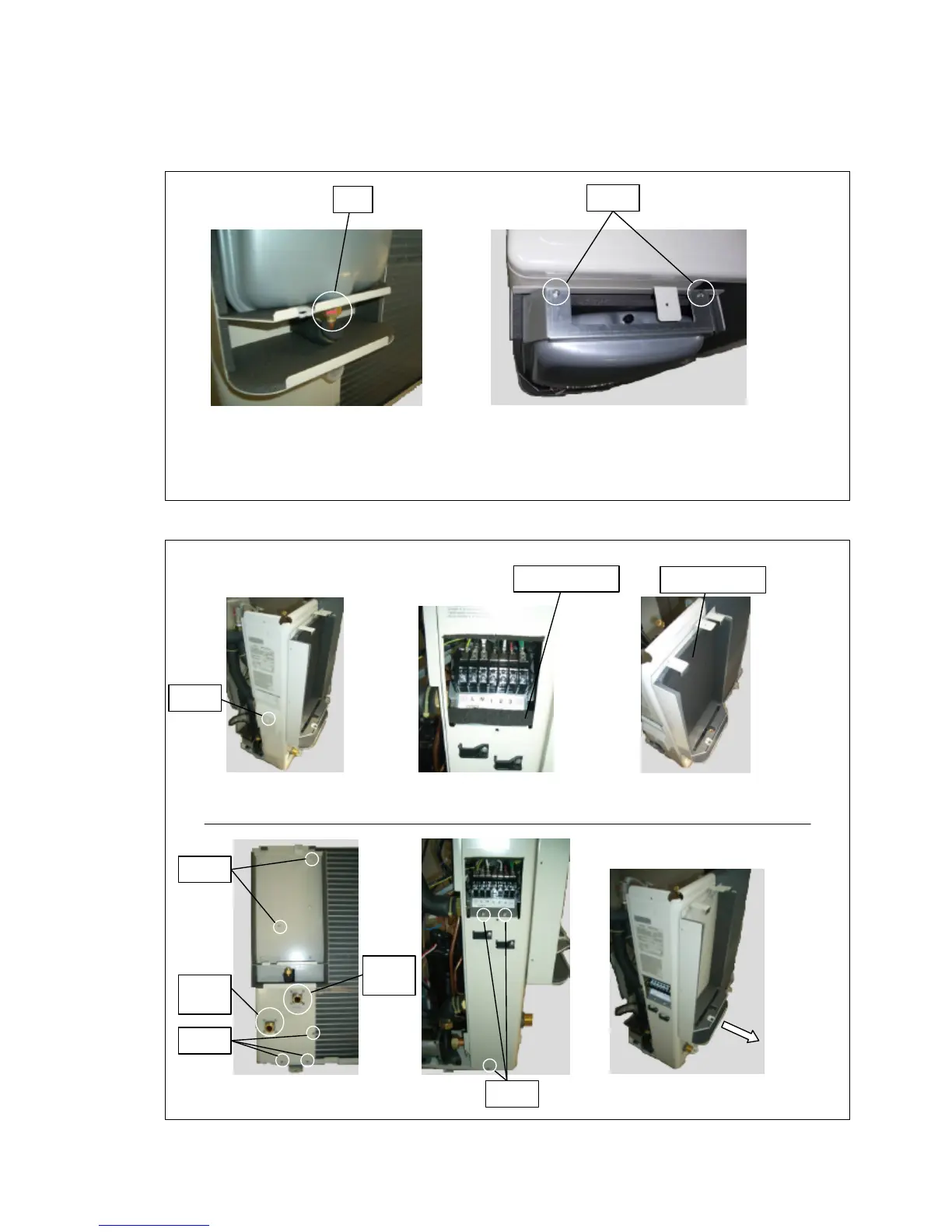

Remove the nut for the tank. Remove the screw. (2 places)
Note at the installation Remove the panel for fixing the tank.
When take off Nut, remove a packing together. Remove the TANK.
Tightening torque is from 15.0 to 30.0 N・m.
１８ .BACK PANEL removal
Remove the screw. (1 place)
Remove the insulation sheet
Remove the insulation sheet
Remove the terminal cover. for the terminal. for the tank.
Remove the screws. (16 places) Remove the BACK PANEL.
Nut
Screw
Insulation sheet
Screw
Insulation sheet
Screw
Screw
×4
Screw
Screw
Screw
×4
-28-
To Next Page
