Power
supply
Over the specifield current
use a contactor.

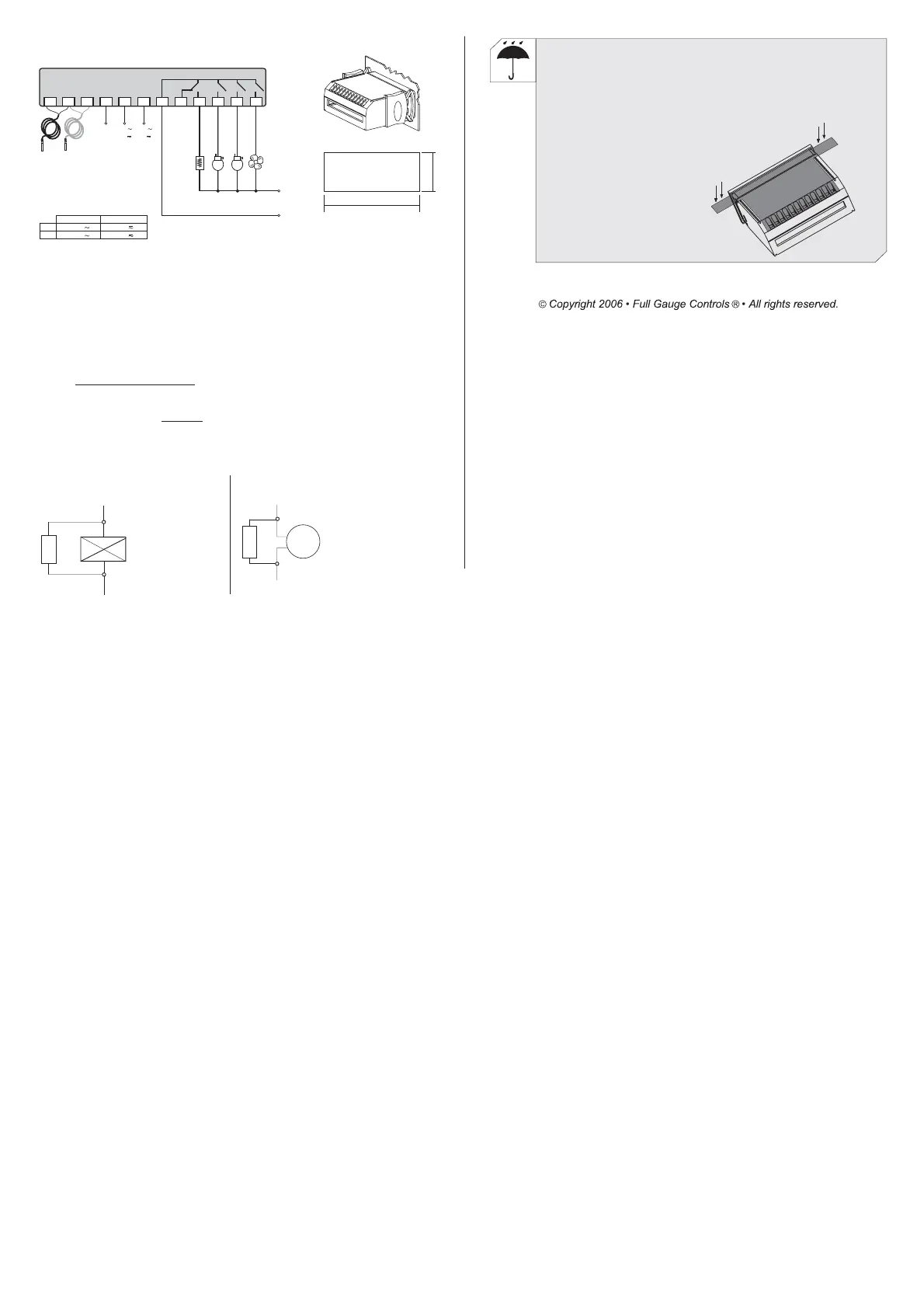

8. WIRING DIAGRAM
72 mm
Dimension of the clipping
for setting of the instrument
in panel
29 mm
4-5
4-6
115V
230V
12V
24V
TC-910Ri
TC-910RiL
Sensor 2
evaporator - Gray cable
1
2
4
5
6
7
8
9
10
11
12
3
1
2
4
5
6
7
8
9
10
11
12
3
Sensor 1
lack cableambient - B
0
115V
(12V )
230V
(24V )
Loads
supply
Note: The sensor cable lenght can be increased by the user until 200 meters using PP 2 x 24 AWG
cable.
REF2
FANS
COMMON
7
8
9
10
11
12
7
8
9
10
11
12
REF1
DEFR
IMPORTANT
1:
2:
3:
According to the chapters from the IEC60364 standard:
Install on power supply
Sensor cables and computer signals can be together, however not at the same place where power
supply and load wires pass for
Install suppresor of transient in parallel to loads to increase the usefull life of the relays
protectors against over voltage
(RC filters)
For more information contact our application eng. department through e-mail
or dial +55 51 3475.3308.support@ fullgauge.com
Contact suppresor connection diagram
Suppresor
A1
A2
A1 e A2 are the
contactor coils.
Diagram for suppresor installation
for direct drive load inputs
Load
Suppresor
For direct activation the maximum
specified current should be taken
into consideration.
PROTECTIVE VINYL:
This adhesive vinyl (included inside the packing) protects the instruments against
water drippings, as in commercial refrigerators, for example. Do the application after
finishing the electrical connections.
Remove the protective paper
and apply the vinyl on the entire
superior part of the device,
folding the flaps as indicated by
the arrows.
