5 EN
Installation

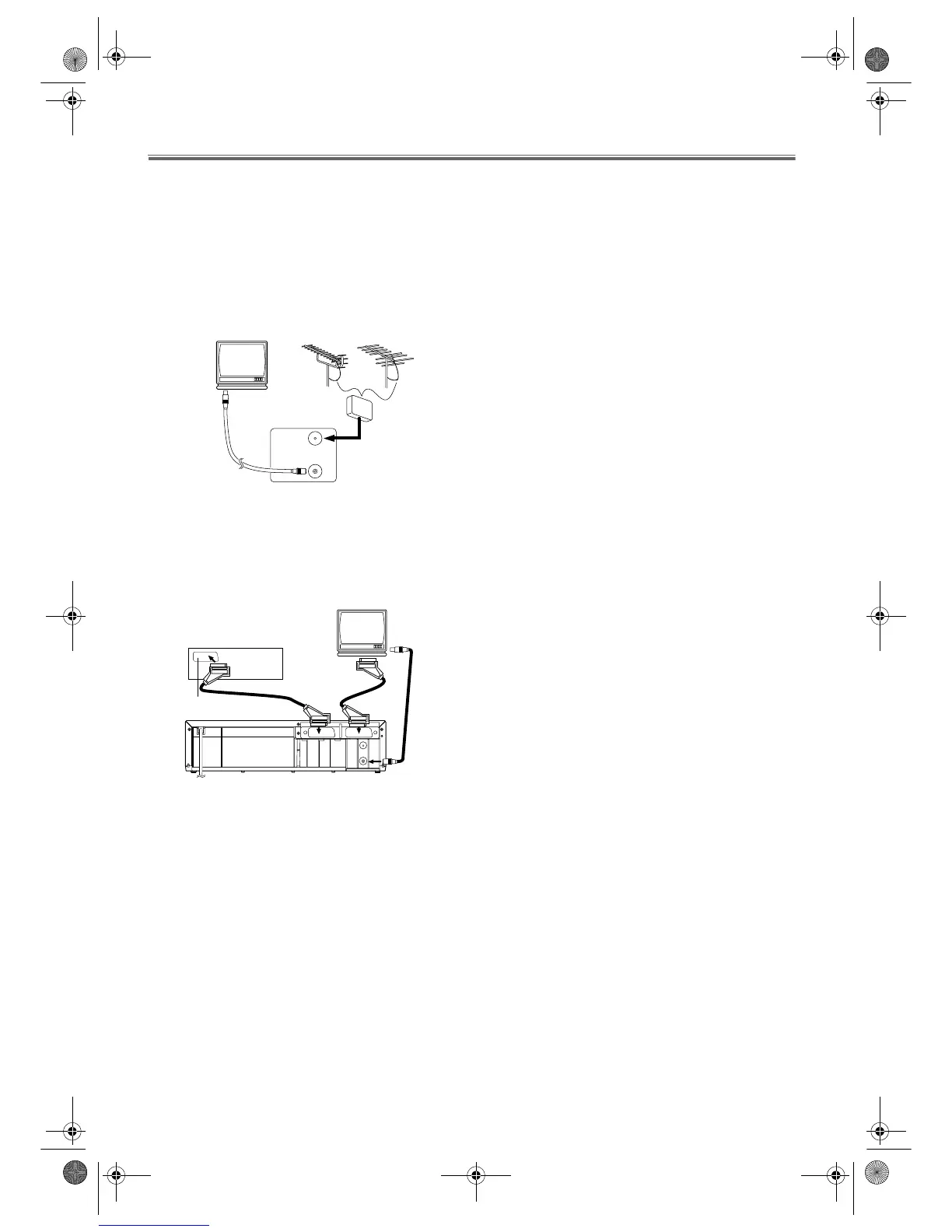

Connecting the VCR
Basic Connection
1) Disconnect the TV’s power cord from the AC outlet.
2) Disconnect the VHF/UHF TV aerial coaxial cable from
the TV.
3) Connect the VHF/UHF TV aerial coaxial cable to the
VCR.
4) Connect the VCR to the TV using the RF cable.
5) Plug the power cords of the VCR and TV into the AC
outlets.
Other Connections
Euro Scart (AV) Sockets
Your VCR is provided with two Scart sockets which you may
connect to other external devices with Scart sockets. We
recommend this connection to ensure a better audio and
picture quality.
Euro Scart cables are obtainable at your dealer.
AV1 (TV) Connection to TV
If your TV has Scart sockets, you may connect your VCR’s
AV1 (TV) scart socket to the Scart socket on the back of your
TV. Please see the instruction manual for your TV.
AV2 (DECODER) Connection for Other External Devices
The second Scart socket AV2 (DECODER) is designated for
other external devices, e.g. decoder, another VCR, video
camera and so on.
Note: If you want to connect a TV with Scart socket to your
VCR, the TV must be connected to the VCR through
AV1 (TV). A connection to AV2 (DECODER) will not
function correctly.
External Input Mode
To receive the signal from an external source (decoder, video
camera, another VCR, etc.), connect the source to the AV2
(DECODER) socket, and press
CHANNEL
(
K/L
) or enter
“002” with the
number buttons
. “AV2” appears on the TV
screen. If you use the AV1 (TV) socket, press
CHANNEL
(
K/L
)
or enter “001” with the
number buttons
. “AV1” appears on the
TV screen.
RF OUT
AERIAL
VHF/UHF
MIXER
to AERIAL
to RF OUT
(Back of the unit)
to aerial socket
(TV)
UHF
VHF
RF cable
(supplied)
RF OUT
AERIAL
AV2(DECODER) AV1(TV)
to 21-Pin Scart socket
Decoder (Not supplied)
(TV)
to RF OUT
socket
Scart socket
to 21-Pin
to aerial
HM210BD(EN).fm Page 5 Thursday, March 2, 2006 6:07 PM
