FUNAI DRV-C3835 - Page 52

1-12-20
E9B00SCD5

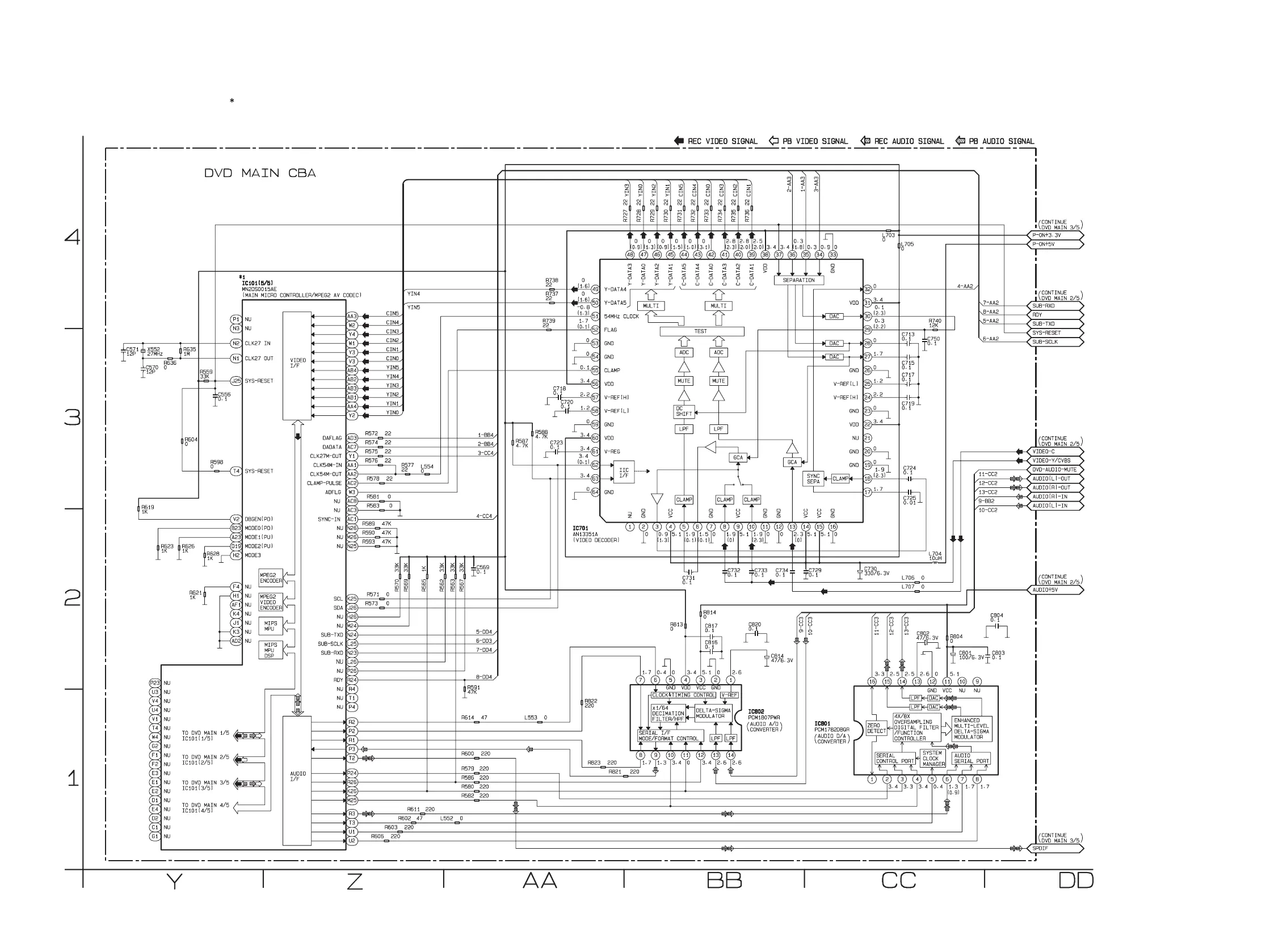

DVD Main 5/5 Schematic Diagram < DVD Section >
The order of pins shown in this diagram is different from that of actual IC101.
IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD Main Schematic Diagram Section.
