FUNAI LC320SLX - Page 14

4-2 A91F3DC
P = Spring, L = Locking Tab, S = Screw,
H = Hex Screw, CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5) Refer to the following "Reference Notes in the
Table."
[2] Rear Cabinet
(S-1)
[1] Stand Assembly
(S-2)
(S-4)
(S-2)
(S-3)
(S-2)
(S-2)
(S-4)
(S-4)

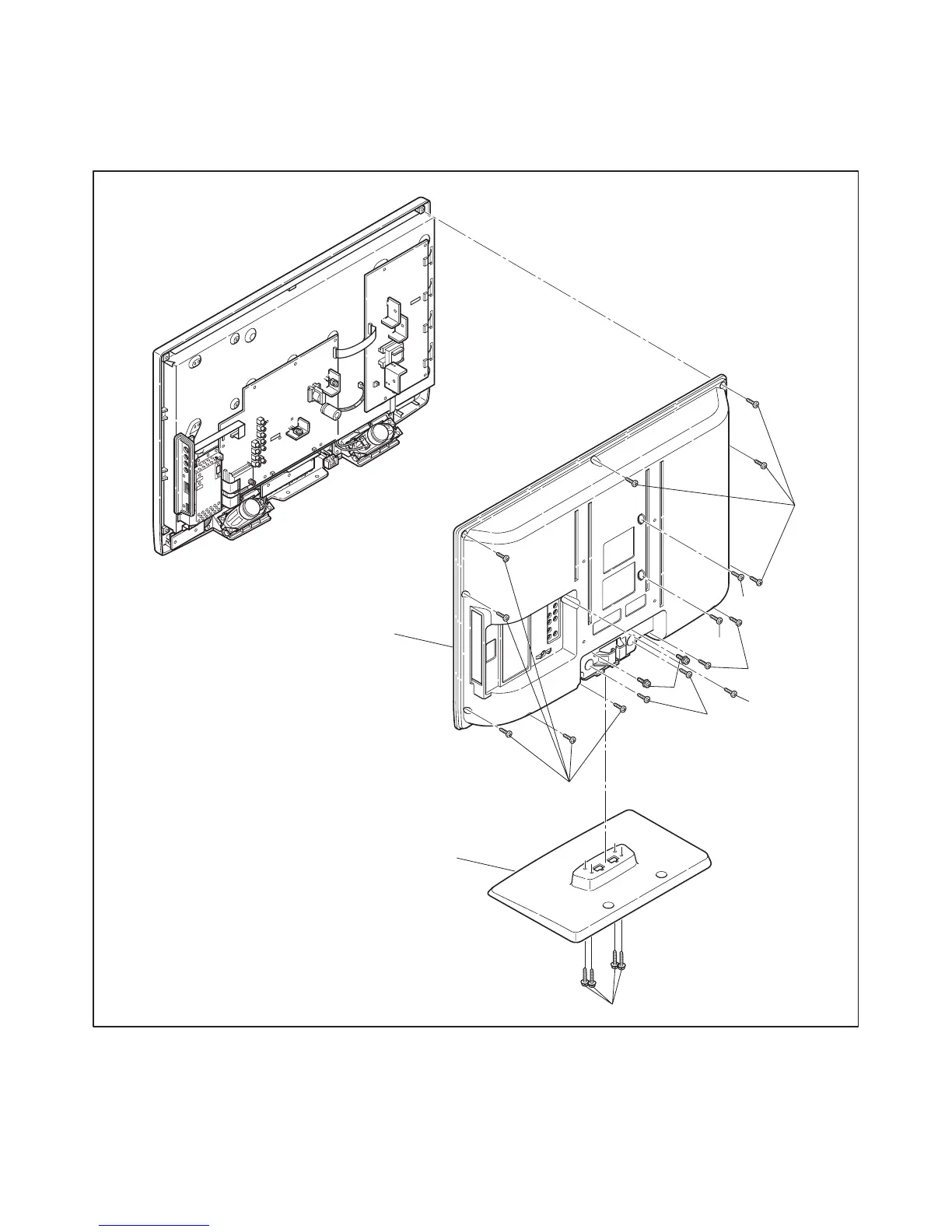

Fig. D1
