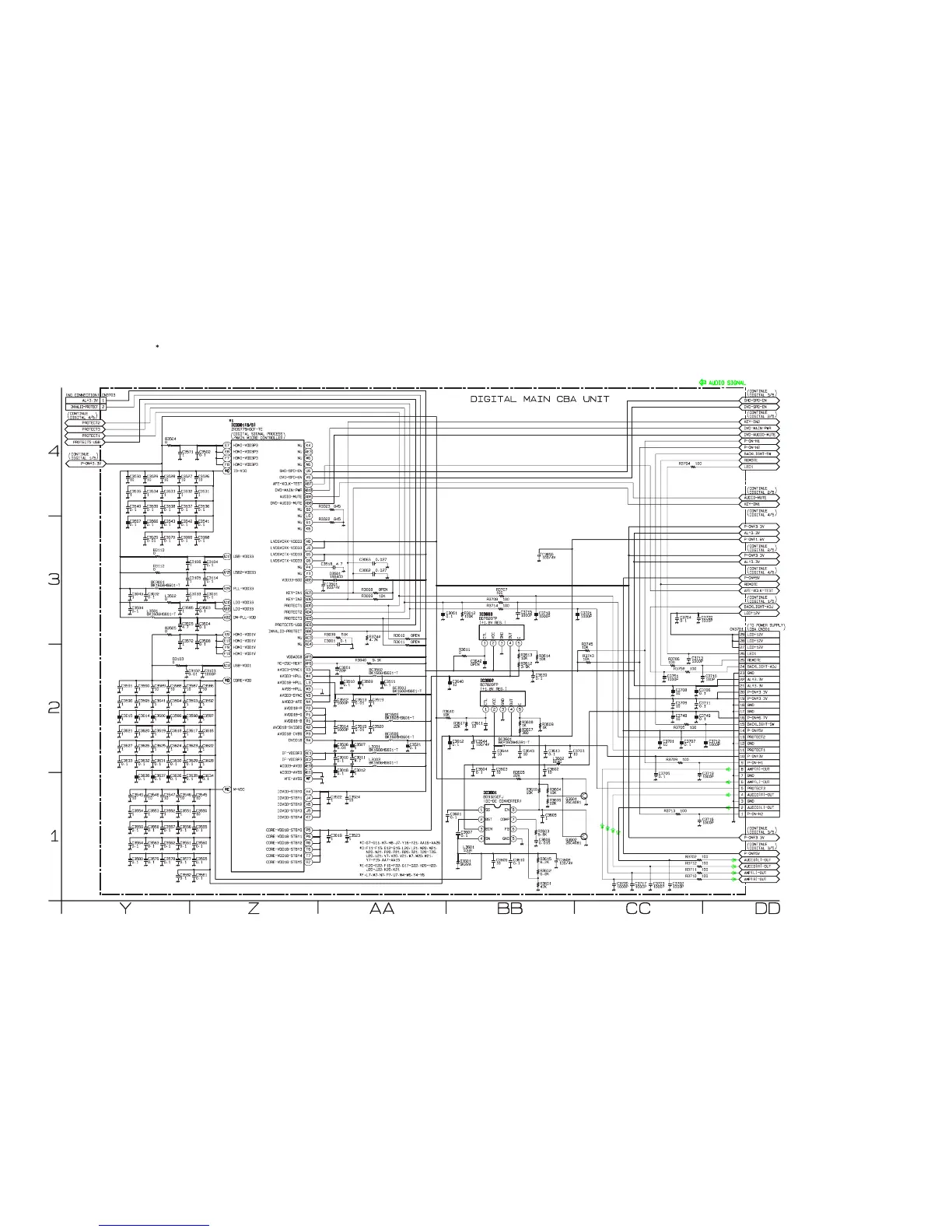

Digital Main 5/5 Schematic Diagram [LC321SSX, 32MF369B/F7]
A91FSSCD5
The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.
1 NOTE:
