FUNAI LCD-A2006 - Cabinet Disassembly Instructions; Disassembly Flowchart; Disassembly Method

4-1 L4620DC
CABINET DISASSEMBLY INSTRUCTIONS

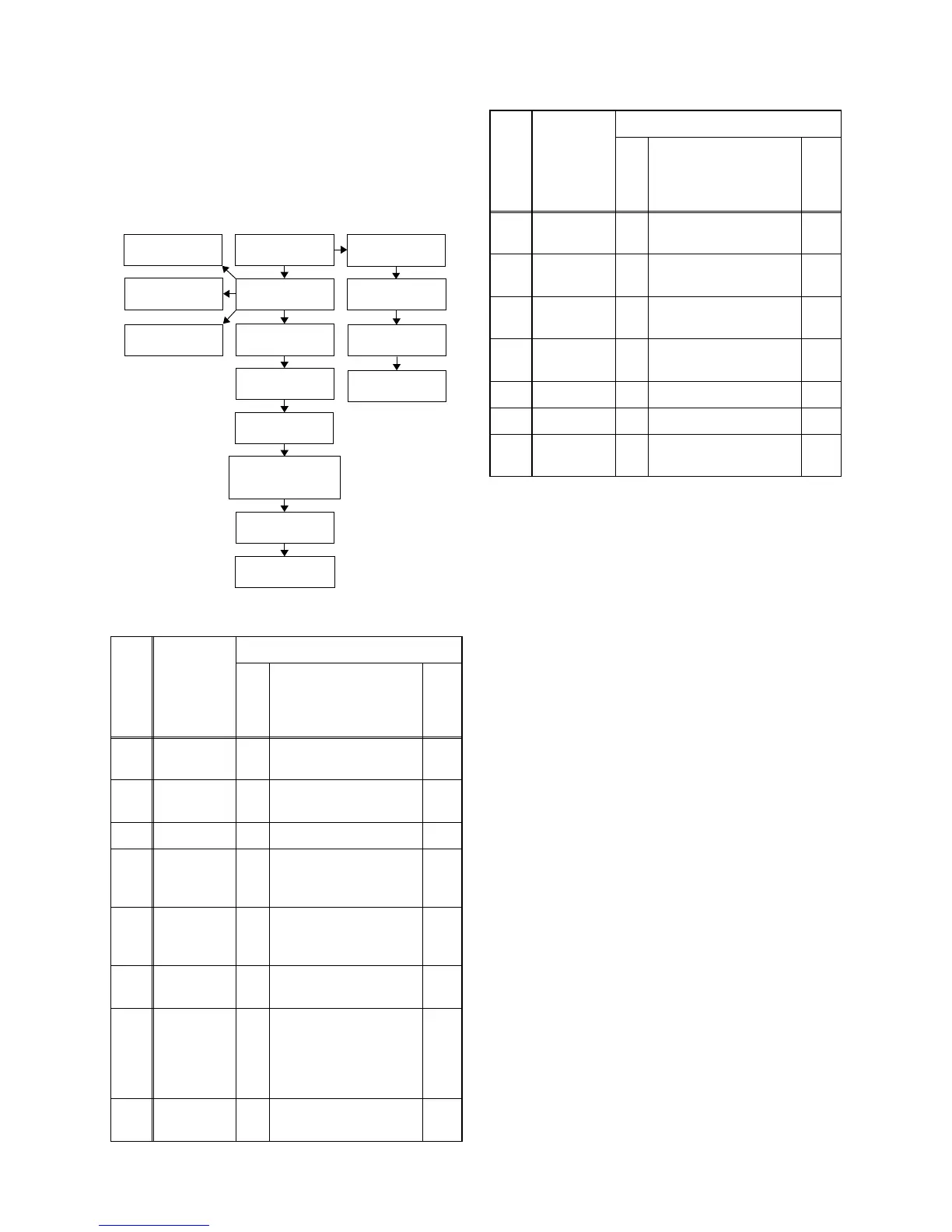

1. Disassembly Flowchart
This flowchart indicates the disassembly steps for the
cabinet parts, and the CBA in order to gain access to
item(s) to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.
2. Disassembly Method
Note:
(1) Order of steps in procedure. When reassembling,
follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.
(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5) Refer to the following "Reference Notes in the
Ta bl e. "
Step/
Loc.
No.
Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Unclamp/
Desolder
Note
[1]
Tilt Stand
Assembly
D1 4(S-1) ---
[2]
Rear
Cabinet
D1 9(S-2), 2(S-3) ---
[3] Jack Holder D2 3(S-4), (S-5) ---
[4]
Inverter
CBA
D2
D4
4(S-6), *CN301,
*CN302, *CN303,
*CN304, *CN310
---
[5] Main CBA
D2
D4
9(S-7), *CN53,
*CN101B, *CN102B,
*CN103B, *CN801
---
[6]
Tilt Stamd
Holder
D2 2(S-8) ---
[7]
LCD Main
CBA Unit &
Liquid
Crystal
Panel Unit
D2 11(S-9), *CN106 ---
[8]
Function
CBA
D2 5(S-10) ---
[5] Main CBA
[2] Rear Cabinet
[8] Function CBA
[10] IR Sensor
CBA
[9] Speaker (s)
[3] Jack Holder
[1] Tilt Stand
Assembly
[11] Front Cabinet
[12] Stand Cover
[13] Arm Holder
[14] Sheet L, R
[15] Arm
Assembly
[6] Tilt Stand
Holder
[4] Inverter CBA
[7] LCD Main CBA
Unit & Liquid Crystal
Panel Unit
[9] Speaker (s) D2
4(S-11), Speaker
Holder (s)
---
[10]
IR Sensor
CBA
D2 (S-12) ---
[11]
Front
Cabinet
D2 --------------- ---
[12]
Stand
Cover
D3 6(S-13) ---
[13] Arm Holder D3 2(S-14) ---
[14] Sheet L, R D3 --------------- ---
[15]
Arm
Assembly
D3 --------------- ---
↓
(1)
↓
(2)
↓
(3)
↓
(4)
↓
(5)
Step/
Loc.
No.
Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Unclamp/
Desolder
Note
