9-2
L4620WF

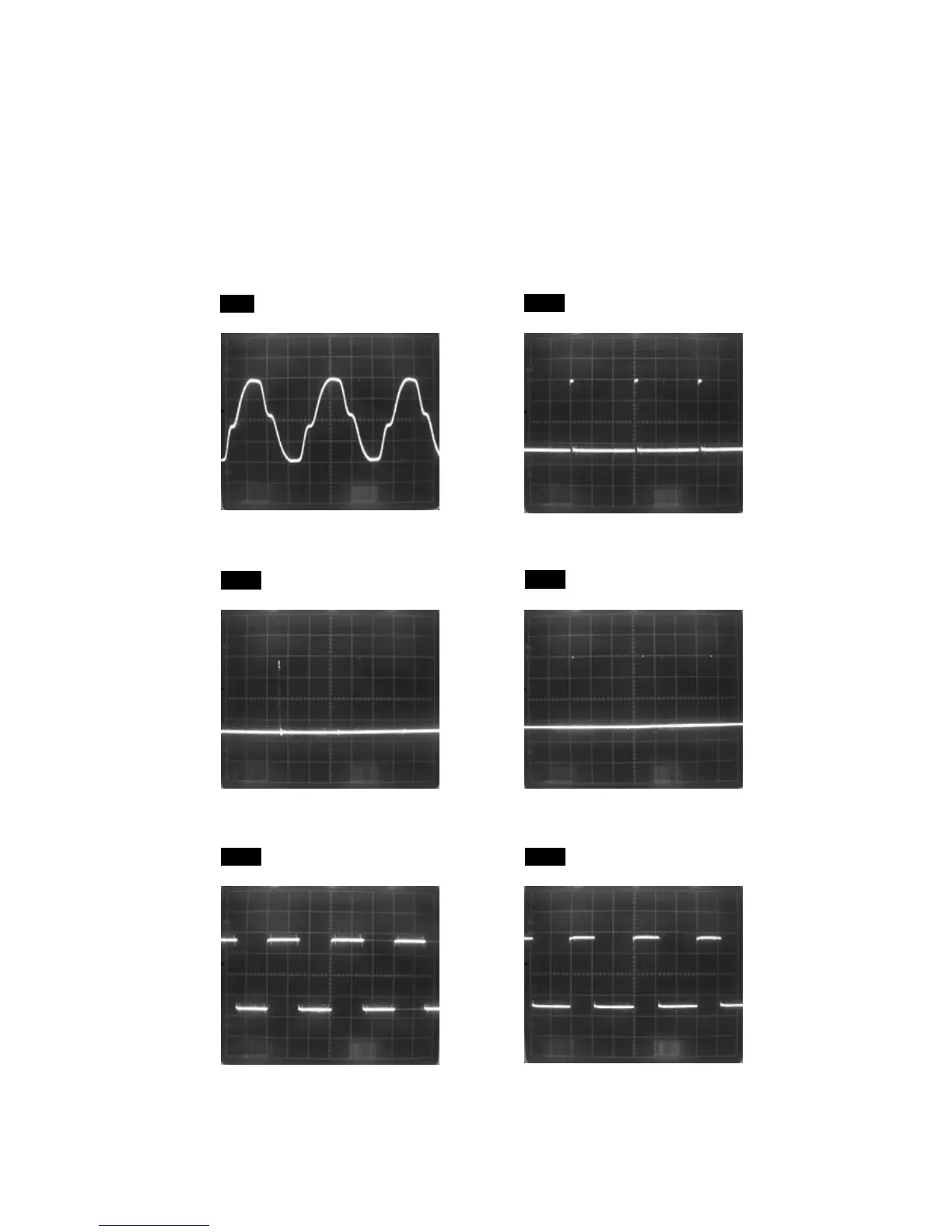

Input: PAL Color Bar Signal (with 1kHz Audio Signal)
WF9 ~ WF14 = Waveforms to be observed at
Waveform check points.
(Shown in Schematic Diagram.)
WF9 R997
WF10 R902
WF11 R901
WF12 R904
WF13 R907
WF14 R905
CTKH 1V 20ns
STH1 1V 1 µ s
POL 1V 20 µ s
LP 1V 10 µ s
STV1 1V 5ms
CLKV 1V 10 µ s
