FUNAI W4A-A4180DB - Page 15

1-6-3 E9G02DC

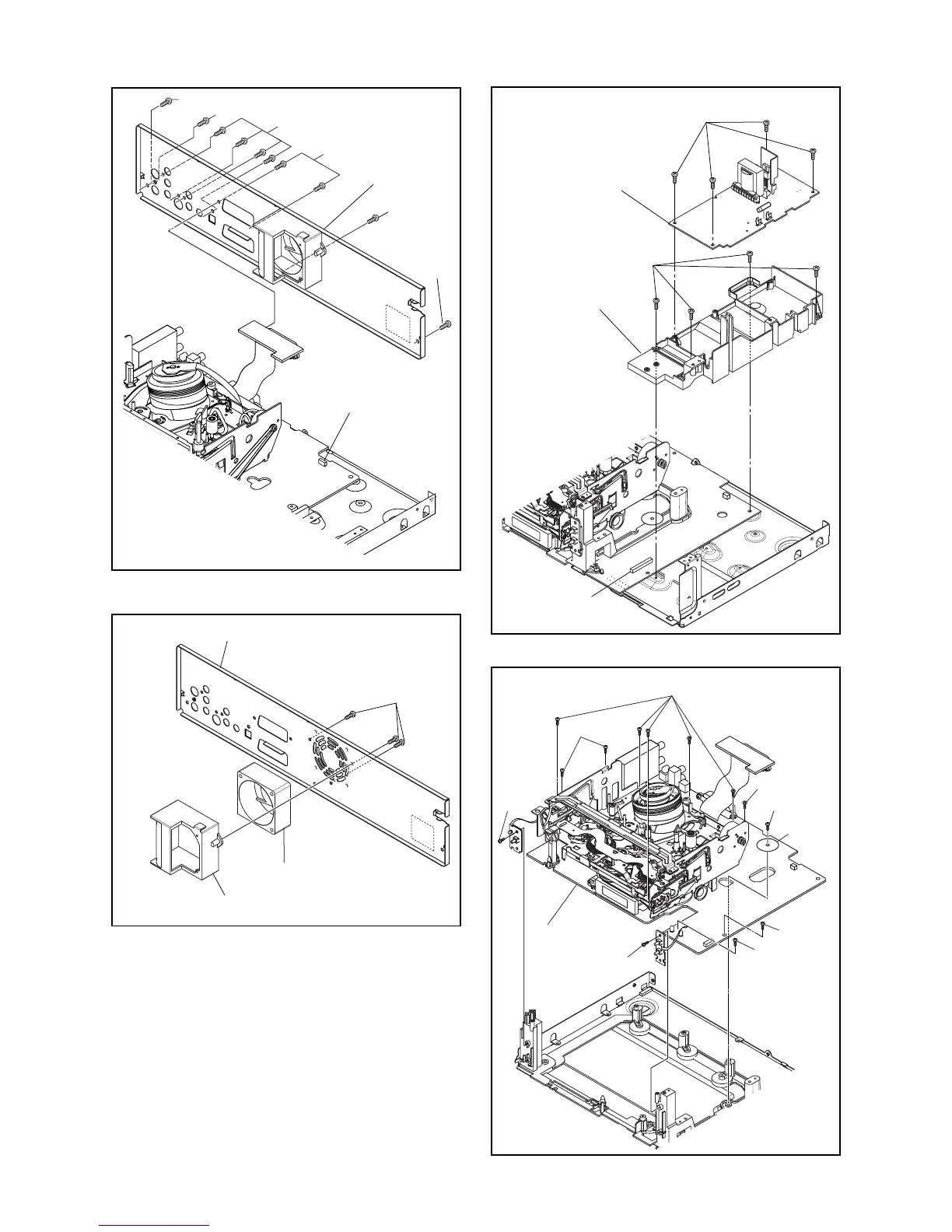

Fig. D5
(S-6A)
(S-6B)
(S-7)
(S-7)
(S-7)
CN1503
(S-8)
[8] Rear
Panel Unit
Fig. D6
(S-9)
[11] Rear Panel
[10] Motor DC Fan
[9] Fan Holder
CN1504
Fig. D7
(S-11)
(S-10)
[12] Power Supply
CBA
[13] PCB Holder
Fig. D8
(S-12)
(S-15)
(S-16)
(S-14)
(S-14)
(S-13C)
PCB
Washer
(S-13A)
(S-13B)
[14] VCR
Chassis
Unit
