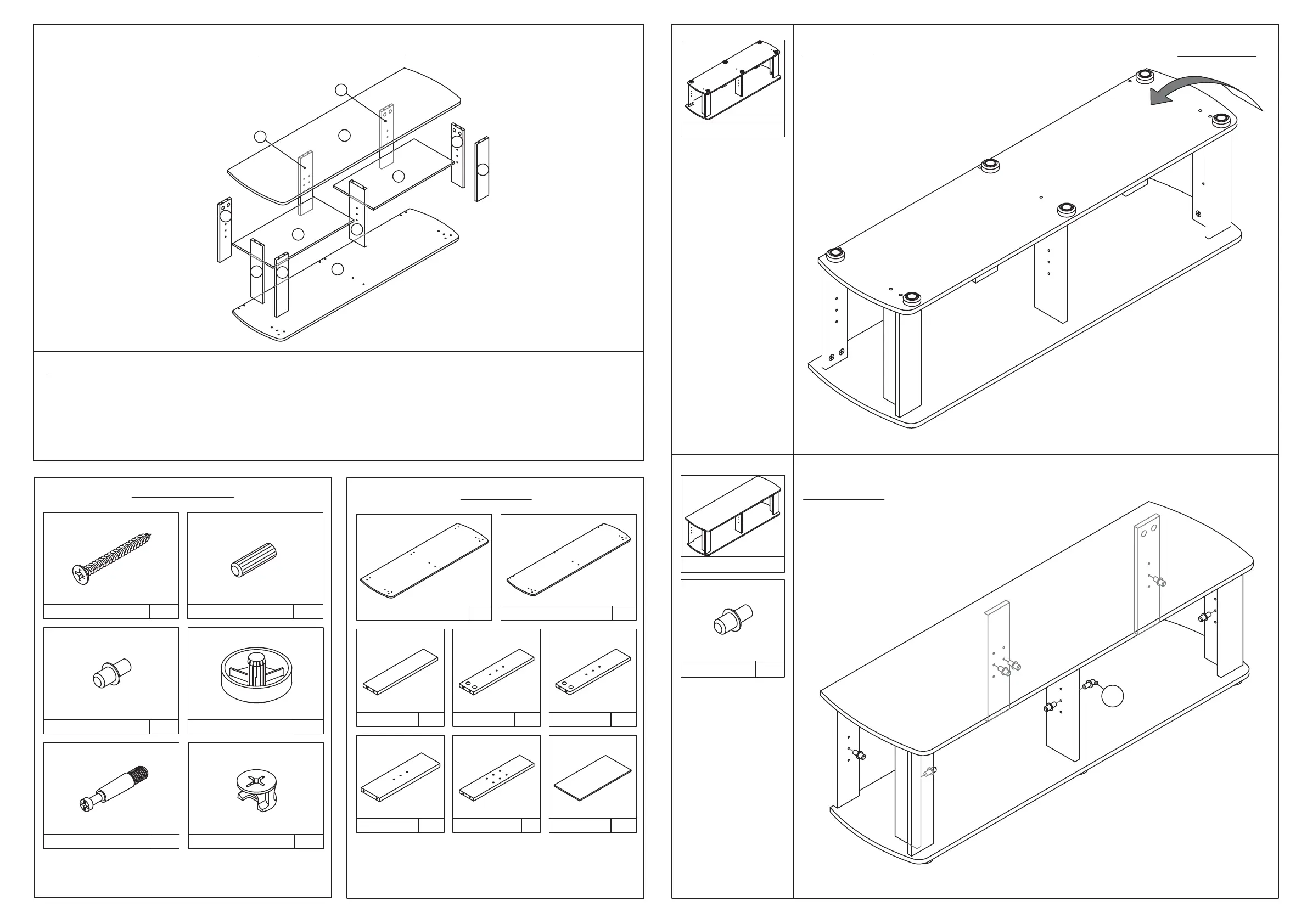

Furinno 11191 - Assembly Guide; Exploded View and Hints; Hardware and Parts List; Assembly Steps 9 and 10

EXPLODED VIEW
USEFUL HINTS BEFORE YOU START:
1. Read each step carefully before starting.
2. It is important that each step is performed in correct order to avoid difficulties.
3. Identify, soft and count the parts before assembly.
4. Assemble your furniture on packaging cardboard to prevent scratch or damage.
5. Clean the product with mild cleanser using soft damped cloth. Do not use harsh or abrasive cleanser.
6. Using uncompatible hardware might cause damage to product.
A
B
C
C
D
D
E
E
F
G
H
H
PARTS LIST
TOP PANEL 1 PC
A
BOTTOM PANEL 1 PC
B
F
G
H
FRONT PANEL
C
SIDE PANEL
D
E
2 PCS2 PCS
BACK PANEL
2 PCS
CENTER PANEL CENTER BACK PANEL
1 PC
1 PC
SHELF PANEL 2 PCS
HARDWARE LIST
SCREW 12 PCS
1 2
DOWEL
12 PCS
SHELF SUPPORT 8 PCS
3
4
PVC ROUND LEG 6 PCS
CAM-LOCK SCREW 8 PCS
5
6
CAM-LOCK NUT 8 PCS
STEP 10
STEP 9
ASSEMBLED UNIT
ASSEMBLED UNIT
3
SHELF SUPPORT
8 PCS
3
TURN 180°
2 7
