Option 3: Mount the belts with 4 supplied washers and 4
screws(ST4.0*35mm) . Fasten belts afterwards.

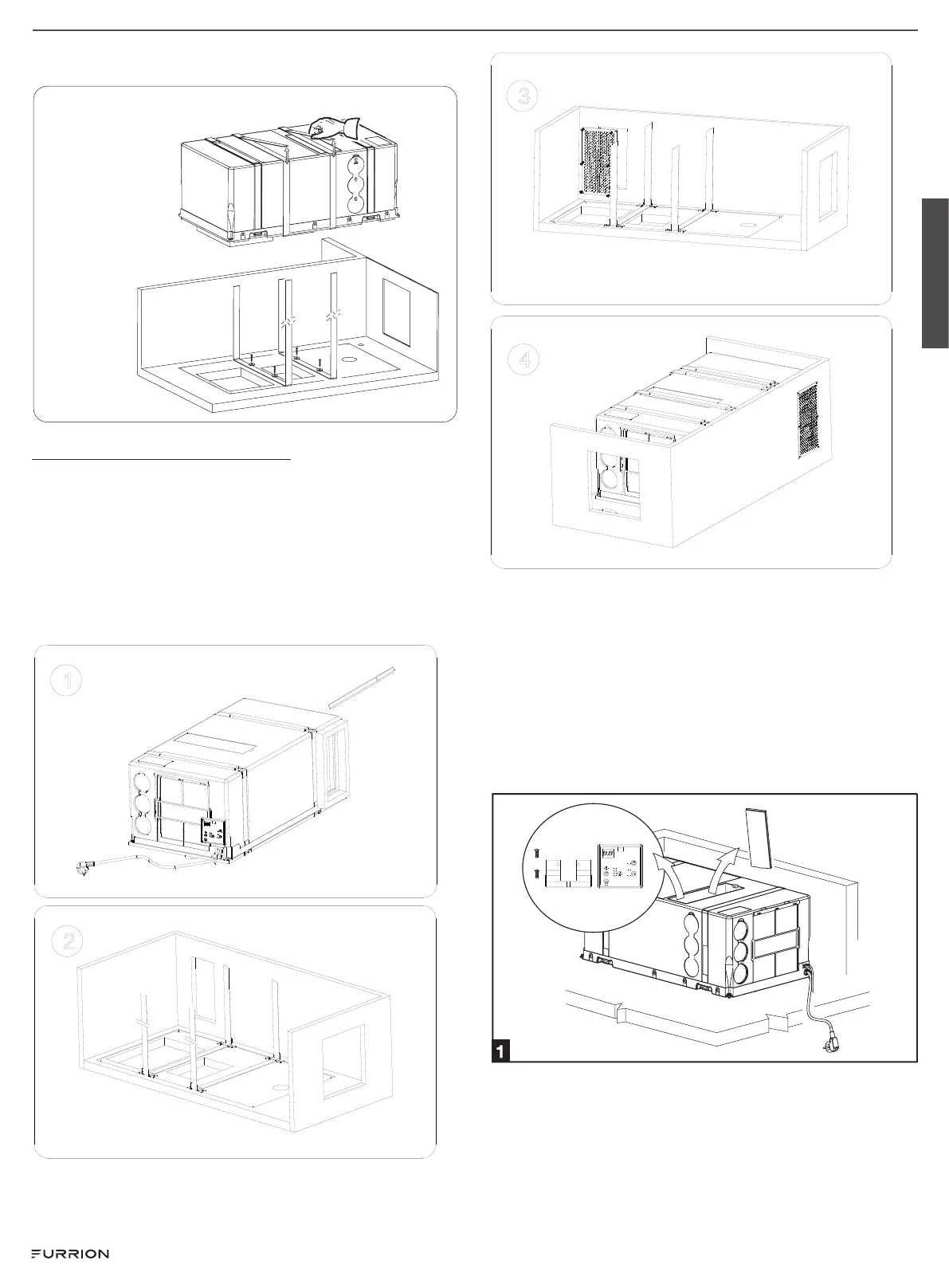

Optional Installation Method:
To improve the performance of the air-conditioner, an
additional hole at the side can be added. Refer to steps
below:
1. Open the side cover foam, and keep the foam around the
air inlet.
2. Make a 4⁄” x 8½”(106 x 216mm) large hole at the given
location as per installation template.
3. Fix the grille.
4. Secure the unit (see mounting).
1
2
3
4
Fitting the wall control unit
1. On top of the unit, there is a compartment which contains
the wall unit, the extension wire and the remote control
unit (Include batteries and wall mount).
2. To fix control onto the wall, you need to make a diameter
⁄”(20mm)hole for cable to pass through.(refer to
drawing 2).
3. Mount the bracket with 2 screws(ST4.0*12mm) onto the
wall. Connect the wire to the main-unit. Place the wall
control unit into the mounting bracket.
Cable
outlet slot
English
Rev: 12-21-23
- 8 -
