INSTALLATION
Installation and repair of the air conditioner must only be
carried out by qualified personnel who are familiar with
the risks involved and the relevant regulations. Inadequate
repairs may cause serious hazards.

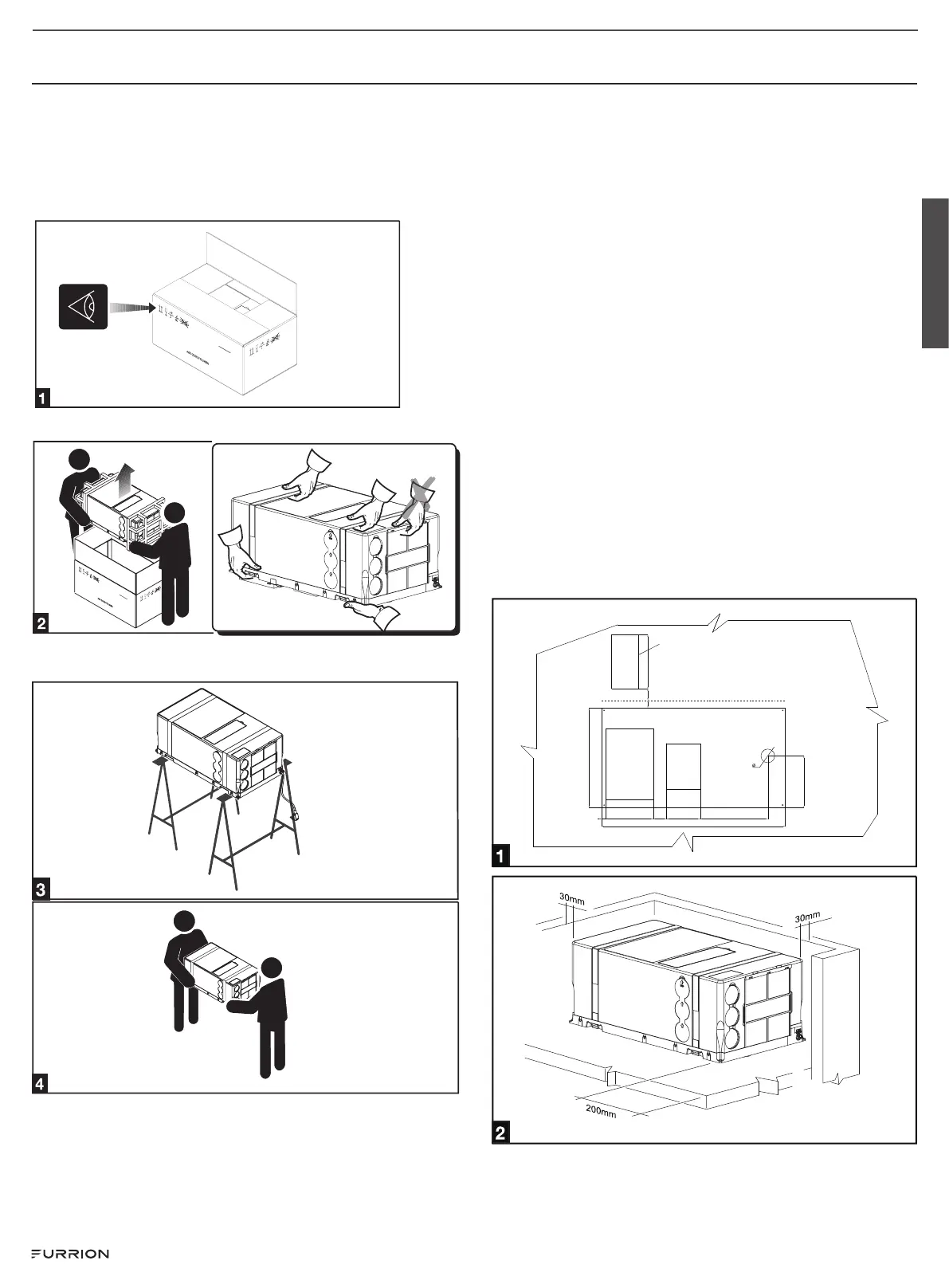

Packing, unpacking and handling
1. Observe the instructions given on the packing.
2. Lift unit out of the box. Check for any damages.
Note: Lift it using the handles or belts on the base.
3. Move the machine to the installation site under safe
conditions.
Choice of installation location
To accomplish uniform climate control in a vehicle, the air-
conditioner must be installed in the center of coach (as much
as possible). The unit shall be placed into the storage bay or
within (under) a cabinet.
Position the machine so as to ensure easy access for
servicing and to facilitate disassembly and installation.
Place the assembly template in the compartment intended
for installation and check the space available for the
openings in the floor.
To minimize the transmission of noise and vibrations during
operation, the machine must have a minimum clearance on
each side of 1⁄”(30 mm) from the walls and fittings.
The unit shall be mounted onto / secured to the vehicle’s
floor.
Keep a distance of 7⁄”(200 mm) between the front of the
unit and the walls of the compartment.
If fitting in external compartments (e.g., false bottoms), the
return air must be drawn in from the vehicle’s passenger
compartment.
Taking air in from / having a leak to the exterior of the
coach can significantly reduce the performance of the air-
conditioner.
Preparing the opening and fixing
55
734
398
16 191 51.8 135.4 270.9
206.4
2164630
Hole as an option
(to optimize the performance of the unit)
