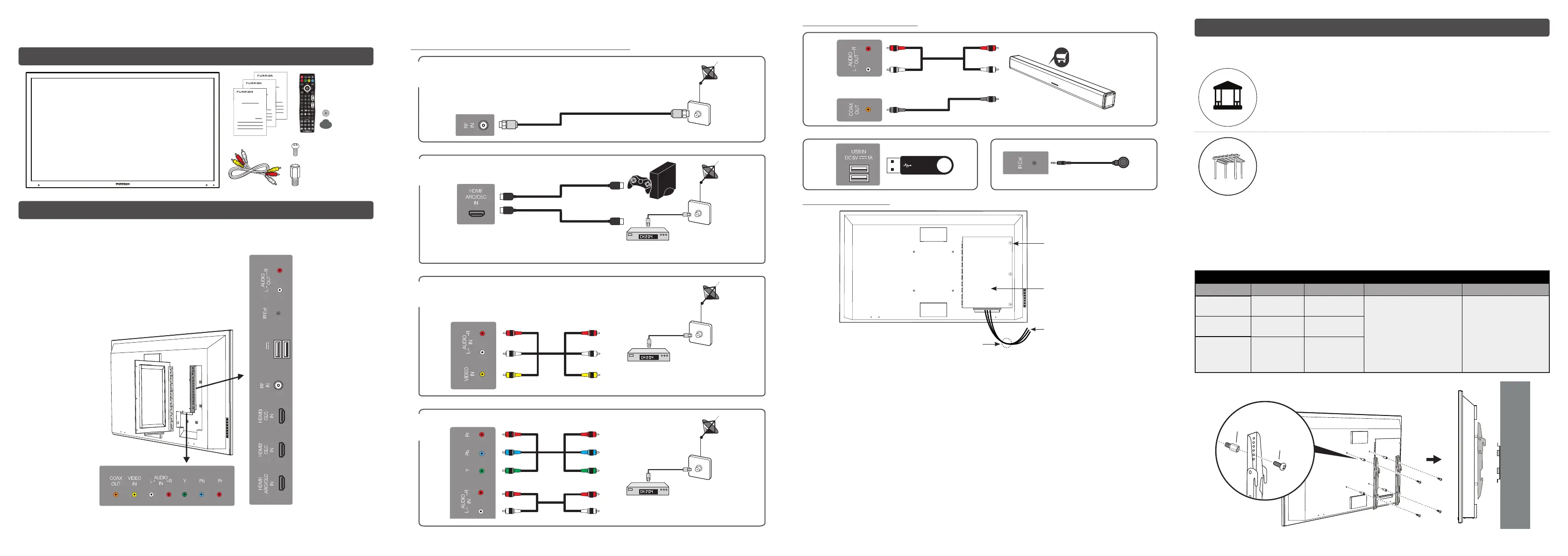

Furrion FDUP43CBS User Manual

This quick start guide will help you install and use the device properly. For further support and to
download the complete user manual please visit www.furrion.com/support.
WHAT’S IN THE BOX
Wa rra nty C ard
Wa rni ng Ca rd
Qu ick Star t G uide
Wa rra nty C ard
Wa rni ng Ca rd
Qu ick Star t G uide
Wa rra nty C ard
Wa rni ng Ca rd
Qu ick Star t G uide
Screw M6*15mm
x 4
Screw Adapter
x 4
CONNECT
WARNING: Do not connect the power source before making connections.
Open the cable access door to connect the cables.
USB IN
DC 5V 1A
Note: All external devices and cables shown in the diagram are for reference only and not included
in the package.
1. Choose one or more of the TV signal/AV connections
A
HDMI 1,
HDMI 2, or
HDMI 3
OR
B
L (Red)
R (White)
VIDEO (Yellow)
AUDIO
C
R (White)
Y (Red)
Pb (Blue)
Pr (Green)
AUDIO
VIDEO
L (Red)
D
2. Connect for more features
R (Red)
L (White)
OR
Furrion model No.:
FSBNN30MSS-BL
(sold separately)
IR extender
3. Cable management
Cables
Drip Loop
Thumb Screws x 3
Cable Access Door
● After all connections are completed, lead all connecting cables downwards through the duct at
the bottom of the cable access door.
● Leave a drip loop when cables enter the compartment. This will prevent water from dripping
down the cord and possibly entering the door area.
● Close the door and tighten the thumb screws for the best weatherproof effect.
INSTALL
You are recommended to install the TV in an area shaded by trees, landscape and/or
structures, or under a patio cover or gazebo.
FULL SHADE (Covered gazebos, patios, porches)
TV designed for fully shade outdoor spaces.
(Model: FDUF43CBS / FDUF49CBS / FDUF55CBS / FDUF65CBS)
PARTIAL SUN (Pergolas, partially covered decks)
TV designed for partial sun exposure and brighter outdoor spaces.
(Model: FDUP43CBS / FDUP49CBS / FDUP55CBS / FDUP65CBS)
Note: Connect all cables prior to mounting TV on wall or TV mount. The cable access door in the
rear panel will be obstructed once the TV is mounted.
● Follow the installation guide supplied with the Wall-Mount Bracket when installing the TV.
● Choose an appropriate location and refer to the VESA pattern for mounting.
● Recommend you to contact a professional for installation and use at least two people to move
or install the TV.
VESA MOUNTING PATTERN
Model Width (mm) Height (mm) Screw size Screw Quantity
FDUP43CBS
FDUF43CBS
200 200
M6 * 15mm 4
FDUP49CBS
FDUF49CBS
200 400
FDUP55CBS
FDUF55CBS
FDUP65CBS
FDUF65CBS
400 400
Wall
Adaptor
M6 Screws
