Installation
Good Signal
Poor Signal

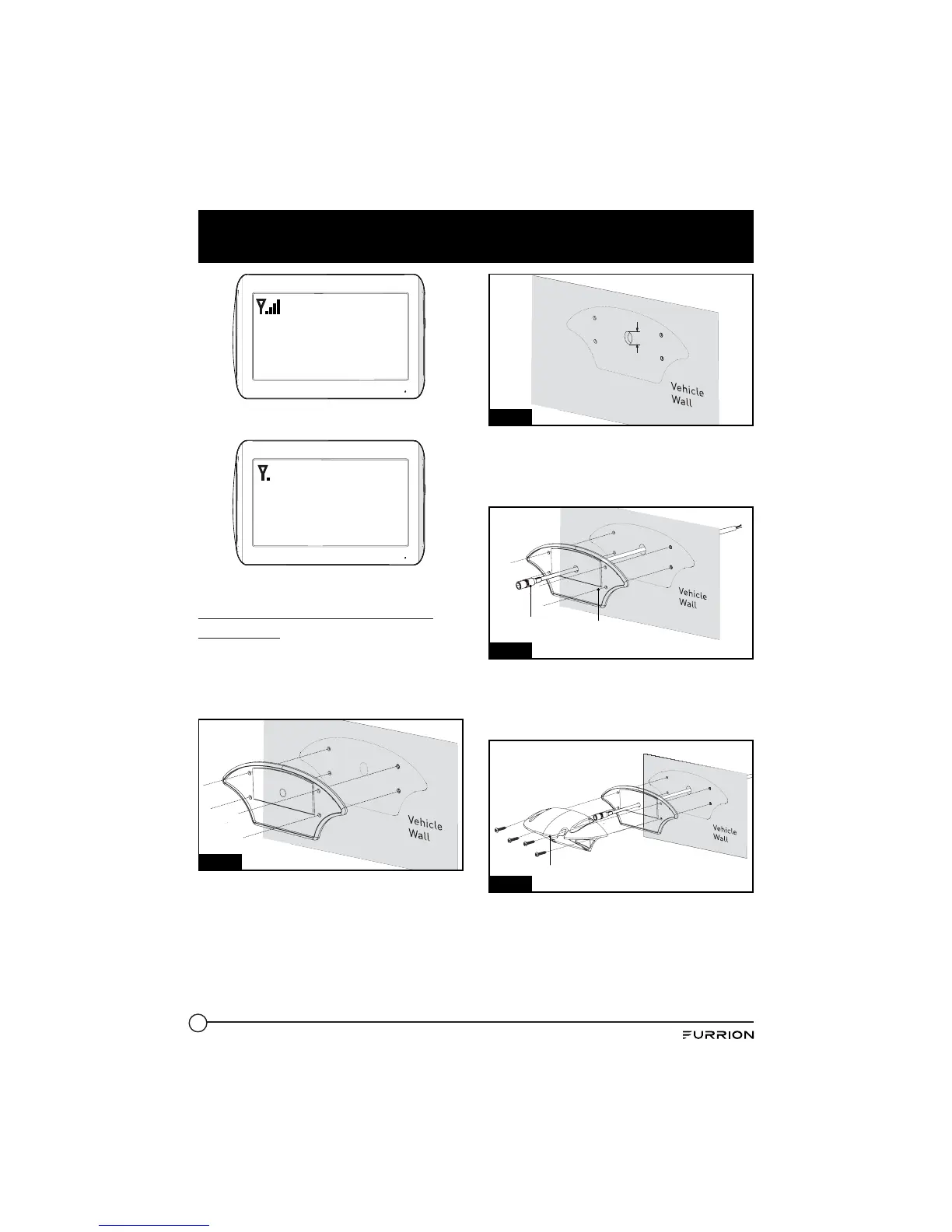

Doorway Camera Installation (if
purchased)
1. Select a suitable mounting position where
you are going to install the doorway
camera. Mark a basic outline using the
provided bracket gasket. (Fig. 10)
Fig. 10
2. Drill a ⁄” center hole on the vehicle wall
using a ⁄” hole saw. (Fig. 11)
»”
Fig. 11
3. Feed the supplied 6-foot camera power
cable through the gasket. Ensure the bare
end of the cable goes into the vehicle and
the flat side faces inward. (Fig. 12)
Camera Power
Cable
Bracket
Gasket
Fig. 12
4. Fix the gasket and bracket to the vehicle
using four ⁄ ” flat self-tapping screws.
Make sure the camera power cable is not
wrapped or extruded. (Fig. 13)
Bracket
Fig. 13
5. Make sure the sealing lip around the edge
of the gasket is seated over the edge of
the bracket before fully tightening the
screws.
To Next Page
