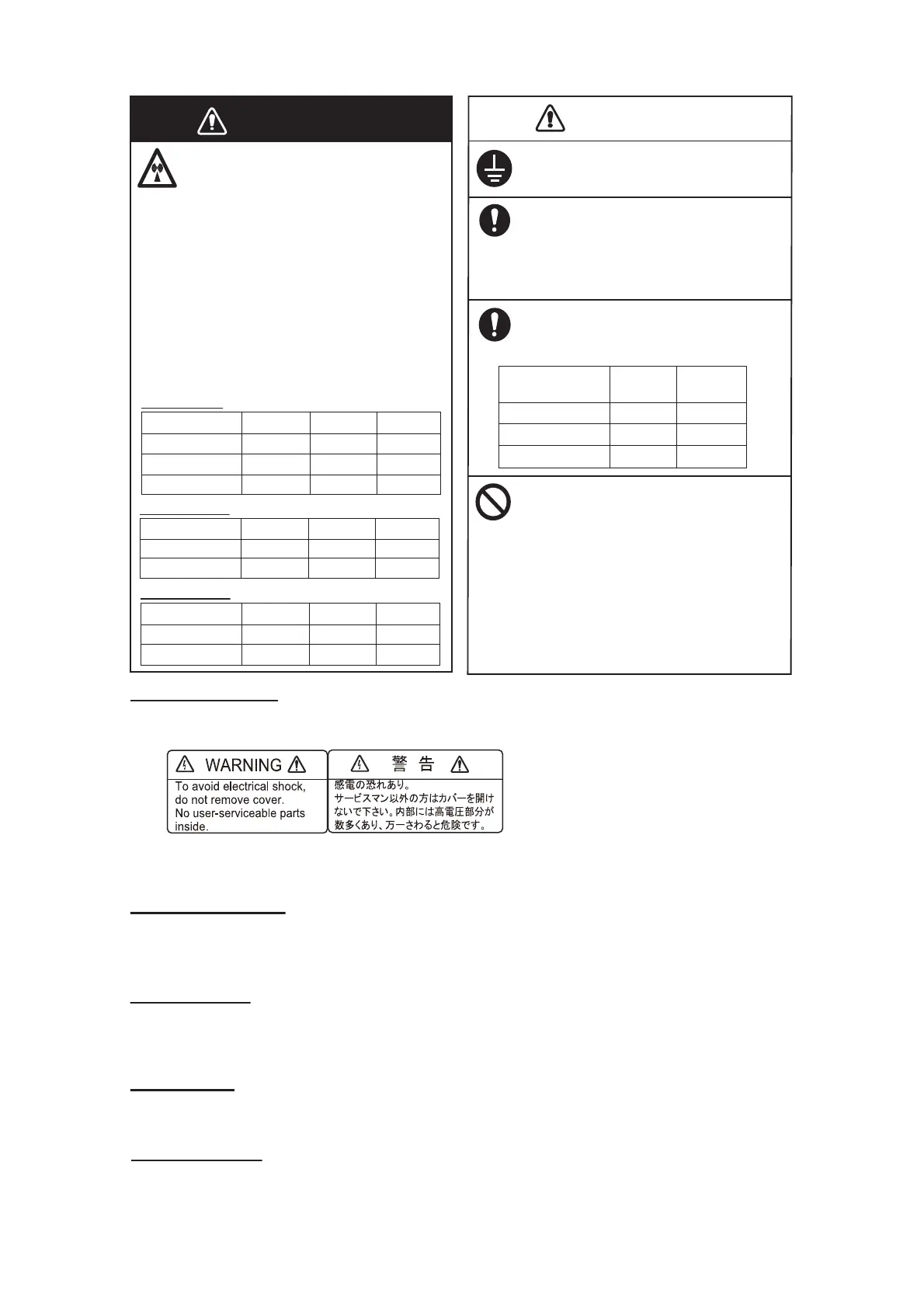

SAFETY INSTRUCTIONS
ii
Ground the equipment to prevent
mutual interference.
WARNING LABEL
A warning label is attached to the antenna unit. Do not remove the label.
If the label is missing or damaged, contact your dealer about replacement.
Name: Warning Label (2)
Type: 03-129-1001-3
Code No: 100-236-743
It is recommended that you
connect the antenna unit to a
disconnecting device (circuit
breaker, etc.) to control the
power.
CAUTION
Observe the following compass safe
distances to prevent deviation of a
magnetic compass:
0.70 m 0.40 m
Standard
compass
Steering
compass
Importer in Europe
The following concern acts as our importer in Europe, as defined in DECISION No 768/2008/EC.
- Name: FURUNO EUROPE B.V.
- Address: Ridderhaven 19B, 2984 BT Ridderkerk, The Netherlands
Program No.
• 0359423-01.**
** denotes minor modifications.
The radar antenna emits
electromagnetic radio frequency
(RF) energy which can be
harmful, particularly to your eyes.
Never look directly into the
antenna aperture from a close
distance while the radar is in
operation or expose yourself to
the transmitting antenna at a
close distance.
Distances at which RF radiation
levels of 100, 50 and 10 W/m
2
exist
are given in the table below.
WARNING
N/A XN10A 0.7 mN/A
100 W/m
2
50 W/m
2
10 W/m
2
Radiator
XN12A
XN13A
N/A 0.6 mN/A
N/A 0.4 mN/A
CE declarations
With regard to CE declarations, please refer to our website (www.furuno.com), for further
information about RoHS conformity declarations.
Do not use high-pressure cleaners
to clean this equipment.
This equipment has the waterproof
rating outlined in the specifications,
at the back of this manual. However,
the use of high-pressure cleaning
equipment can cause water ingress,
resulting in damage to, or failure of,
the equipment.
0.70 m 0.40 m
0.70 m 0.40 m
Unit
DRS6A-NXT
DRS12A-NXT
DRS25A-NXT
100 W/m
2
50 W/m
2
10 W/m
2
Radiator
XN12A
XN13A
0.2 m 1.9 m0.5 m
0.15 m 1.8 m0.4 m
DRS6A-NXT
DRS12A-NXT
100 W/m
2
50 W/m
2
10 W/m
2
Radiator
XN12A
XN13A
0.3 m 2.8 m0.47 m
0.2 m 2.65 m0.3 m
DRS25A-NXT
