1. OPERATIONAL OVERVIEW
1-108

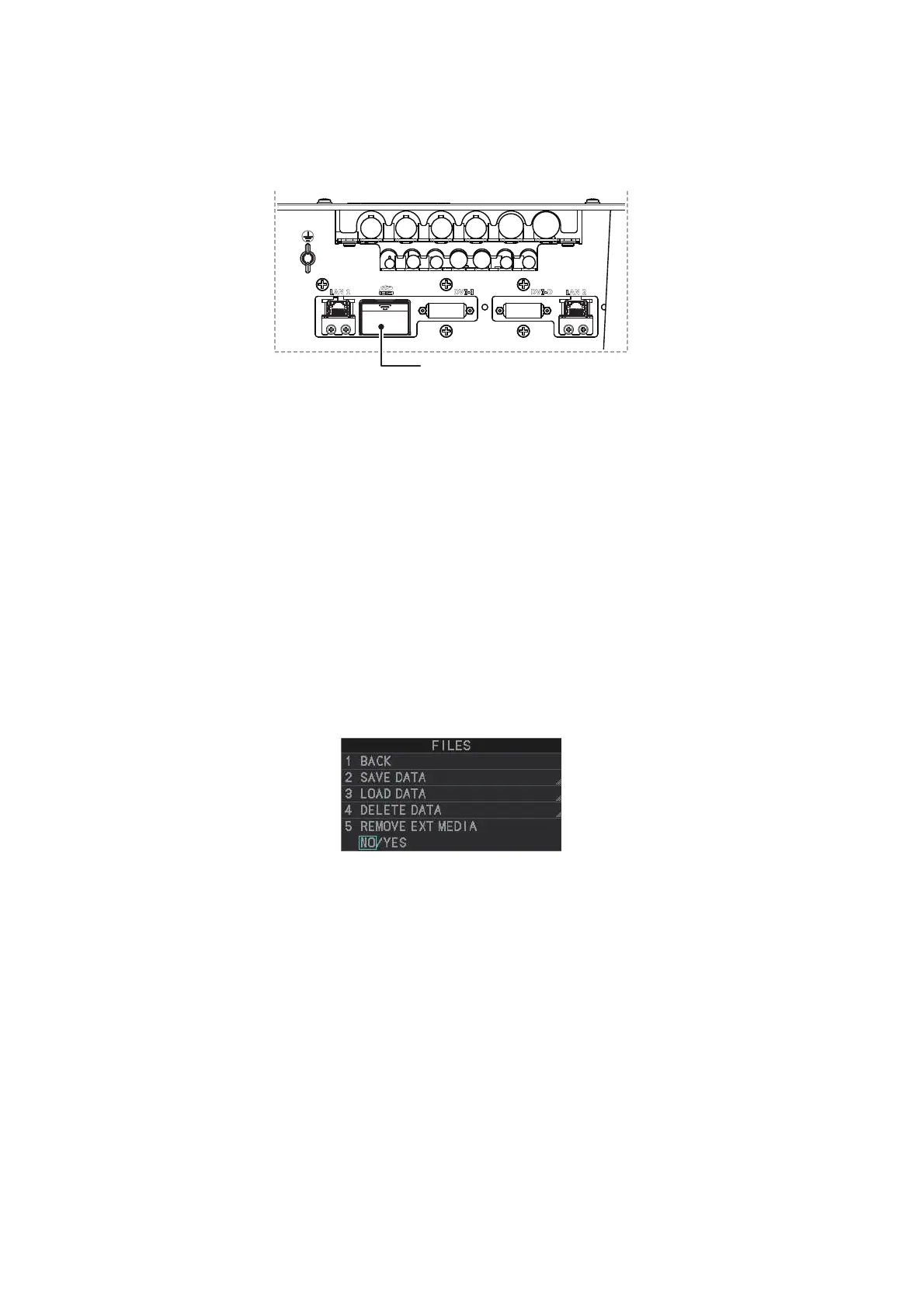

1.55.4 How to insert SD cards
The SD card slot is located on the front face of the processor unit, between the LAN1
port and the DVI-I port.
Note: Do not use any instruments to insert the card.
1. Remove the rubber cover on the SD card slot.
2. To insert a card, gently push the card into the slot, making sure that the card con-
nectors are facing downwards.
3. Close the rubber cover.
1.55.5 How to remove SD cards
Follow the procedure below to safely remove an SD card.
Note 1: When the system power is turned off, skip steps 1 to 3.
Note 2: Do not use any instruments/tools top insert or remove the SD card.
1. Open the menu.
2. Select [6 FILES]. The [FILES] menu appears.
3. Select [REMOVE EXT MEDIA], then select [YES].
You can now remove the SD card safely.
4. Remove the rubber cover on the SD card slot.
5. Gently push the SD cards to release the card from the card slot.
6. Remove the SD card. Do not use any instruments to remove the card.
7. Close the menu.
SD card slot (covered)
