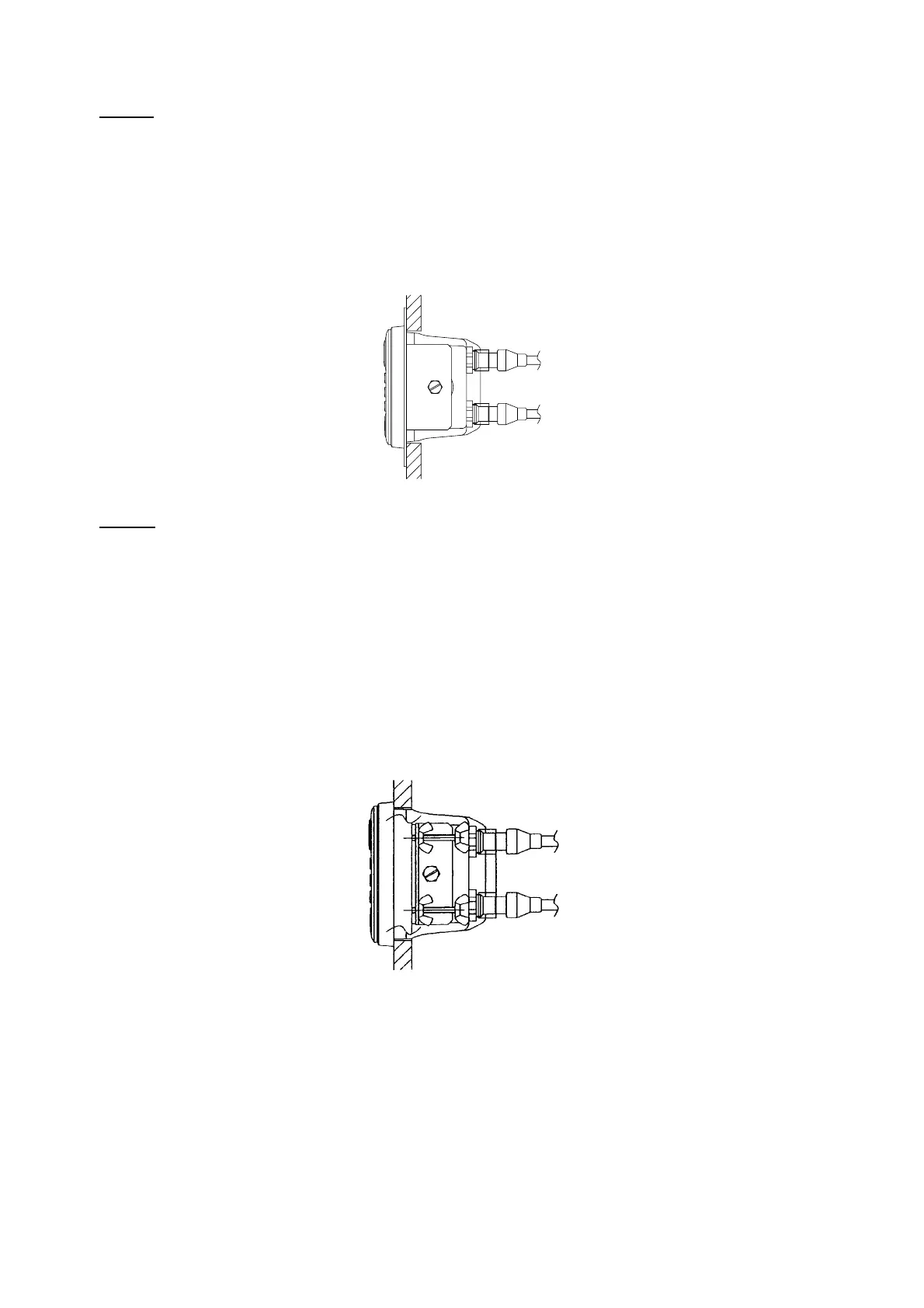

F type
Use the accessories FP65-00401 (See page A-7).
1. Prepare a cutout in the mounting location whose dimensions are 183 (W) x 92 (H) mm.
2. Attach the cosmetic panel (20-016-1051) to the indicator with two hex bolts (M6x12) and
two spring washers (M6).
3. Fix the indicator to the mounting location with four tapping screws (5x20).
S type
Use the accessories FP65-00402 (See page A-8).
1. Prepare a cutout in the mounting location whose dimensions are 167 (w) x 92 (H) mm.
2. Insert the indicator to the cutout.
3. Attach two fixing plates (20-007-2401) to the indicator with two hex bolts (M6x12) and two
spring washers (M6).
4. Screw four wing bolts (M4x30) to wing nuts (M4).
5. Fasten the indicator with four wing bolts and nuts.
