Furuno FR-2125V User Manual

1-3
1.3 Control Head
HL
OFF
1
OFF
CENTER
4
EBL
7
TARGET
TRAILS
CANCEL
PANEL
BRILL
2
VECTOR
5
CHART
ALIGN
8
CU, TM
RESET
0
MODE
3
LOST
TARGET
6
MARK
9
A/C
AUTO
ENTER
TARGET
CANCEL
TARGET
DATA
ACQ
AUDIO
OFF
RADAR
MENU
PLOT
MENU
NAV
MENU
BRILLIANCE A/C RAIN A/C SEA GAIN
OFF ON
VRM
STBY
TX
RANGE
OFF ON
EBL
ON
OFF
ANTENNA
PM
TUNE
DEGAUSS ERROR
#1 #2
#3 #4
POWER
AUDIO OFF
Acknowledges audible alarms, no effect on
visual alarms.
BRILLIANCE
Adjusts the brightness
of entire screen.
A/C RAIN
Suppresses clutter from
rain, snow, clouds.
A/C SEA
Suppresses sea clutter to
improve the short range
discrimination.
GAIN
Adjusts the radar sensitivity.
RADAR MENU
Sets various parameters for
radar operation and radar map.
NAV MENU
Sets parameters for nav info.
PLOT MENU
for plotting
TRANSMIT/STANDBY
RANGE Keys
Select the range scales.
VRM Control,
VRM ON/OFF Keys
Pressing ON key toggles
between No.1 and No.2
VRMs.
TRACKBALL
Shifts the cursor for plotting,
entering reference points,
etc.
FUNCTION Keys
#1: Set-up 1
#2: Set-up 2
#3: Set-up 3
#4: Set-up 4
EBL Control,
EBL ON/OFF Keys
Pressing ON key toggles
between No.1 and No.2
EBLs.

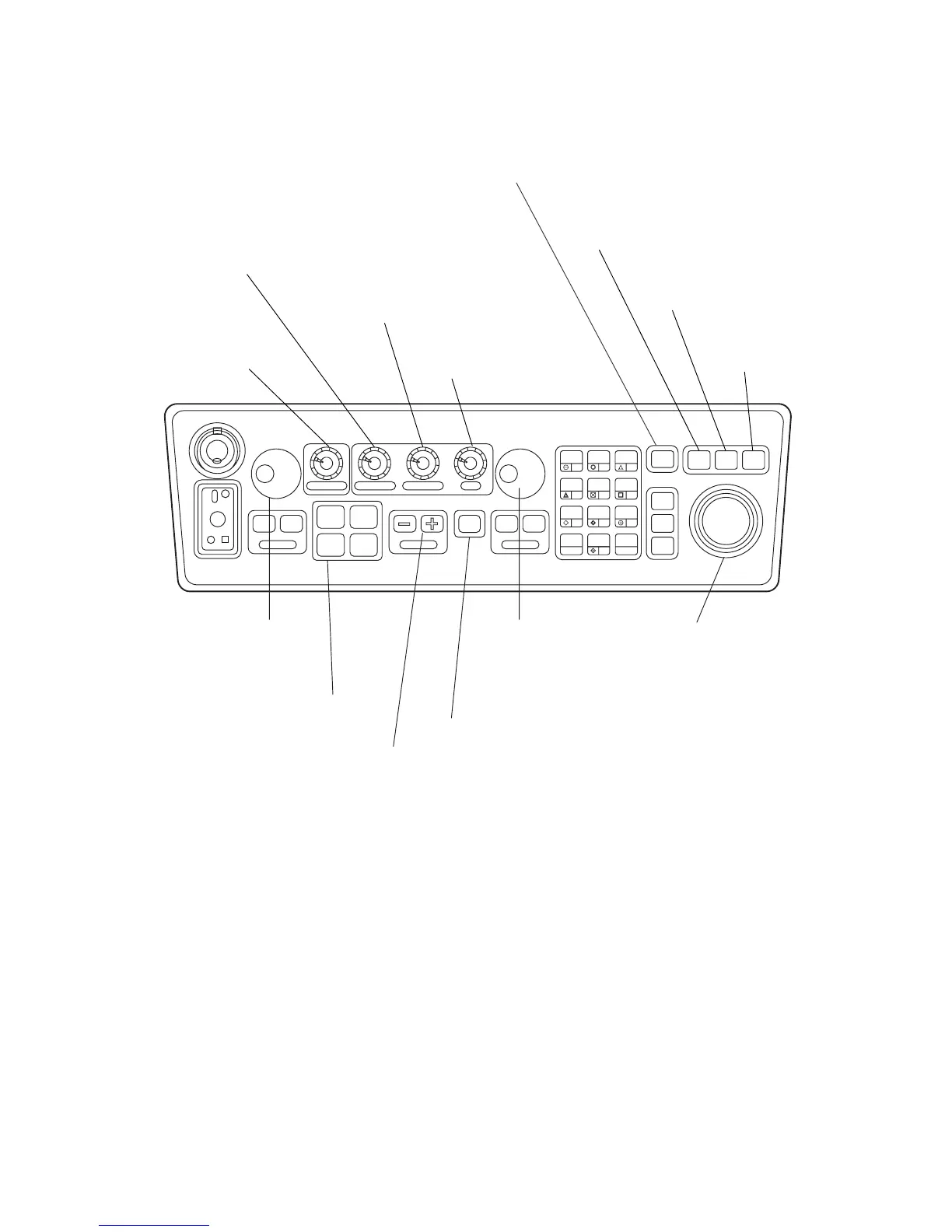

Figure 1-2 Control head
