4-1
4. OPTIONAL EQUIPMENT
4.1 ARP Kit ARP-11
The ARP kit provides automatic radar plotter functions to this radar.
Necessary parts
Name: ARP kit
Type: ARP-11
Code no.: 008-523-050
Contents of ARP kit
Name Type Code No. Qty
ARP Board 18P9014B 001-068-900 1
Pan head screw M3x6 C2700W 000-163-189-10 4
SQ-9 000-159-320-10 1
Spacer*
SQ-15 000-159-299-10 3
Spring washer* M3 C5191W 000-168-187-10 3
*Not used
1. Unscrew all connector nuts at the rear of the display unit.
2. Unfasten all screws to remove the display cover.
03P9413
03P9415

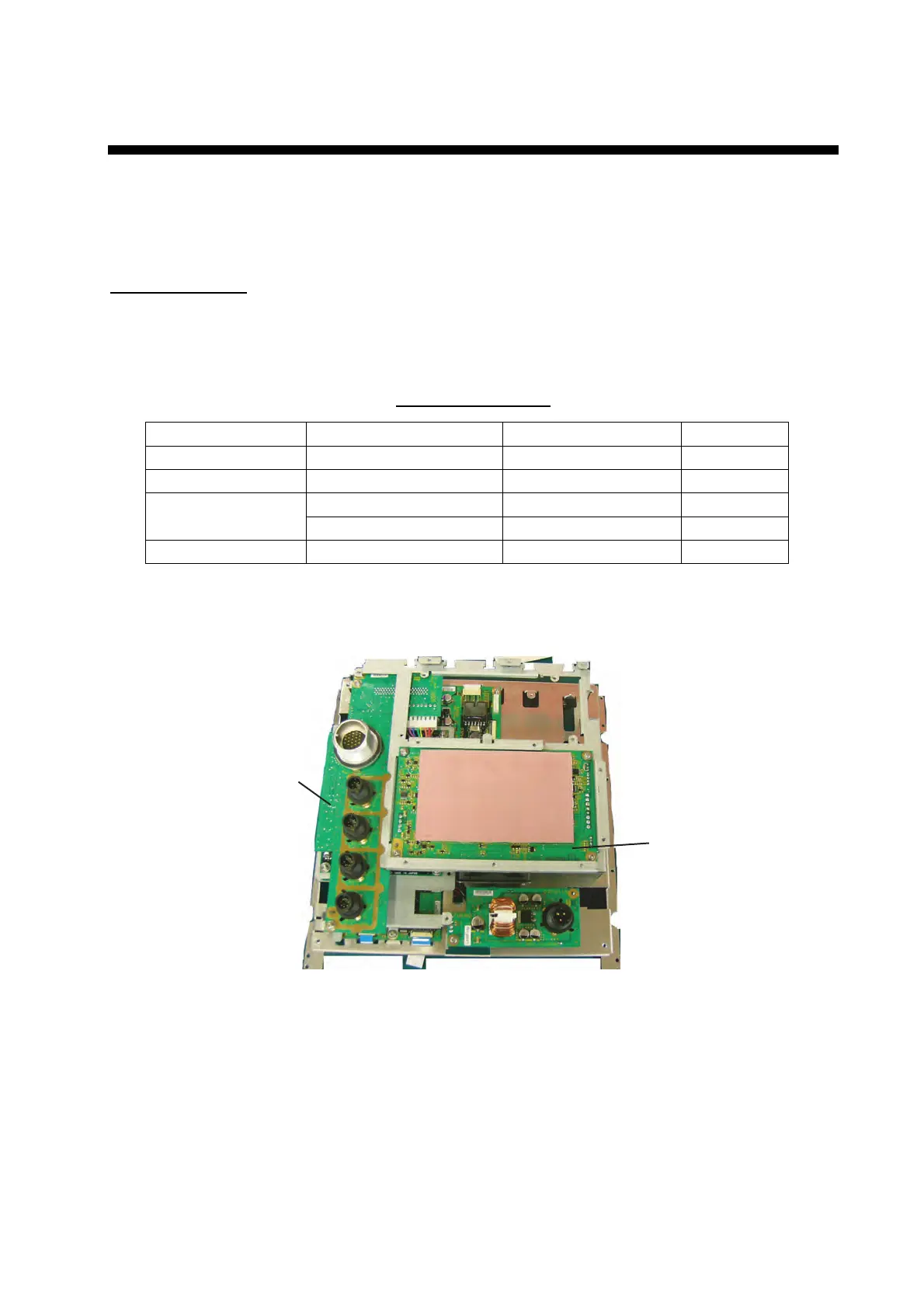

Removing the display unit cover
3. Disconnect the printed circuit board 03P9415 and 03P9413.
Before disconnecting the 03P9413, disconnect J601 and J604 at the back of the board.
To Next Page
