Parallel Voice Coil Wiring

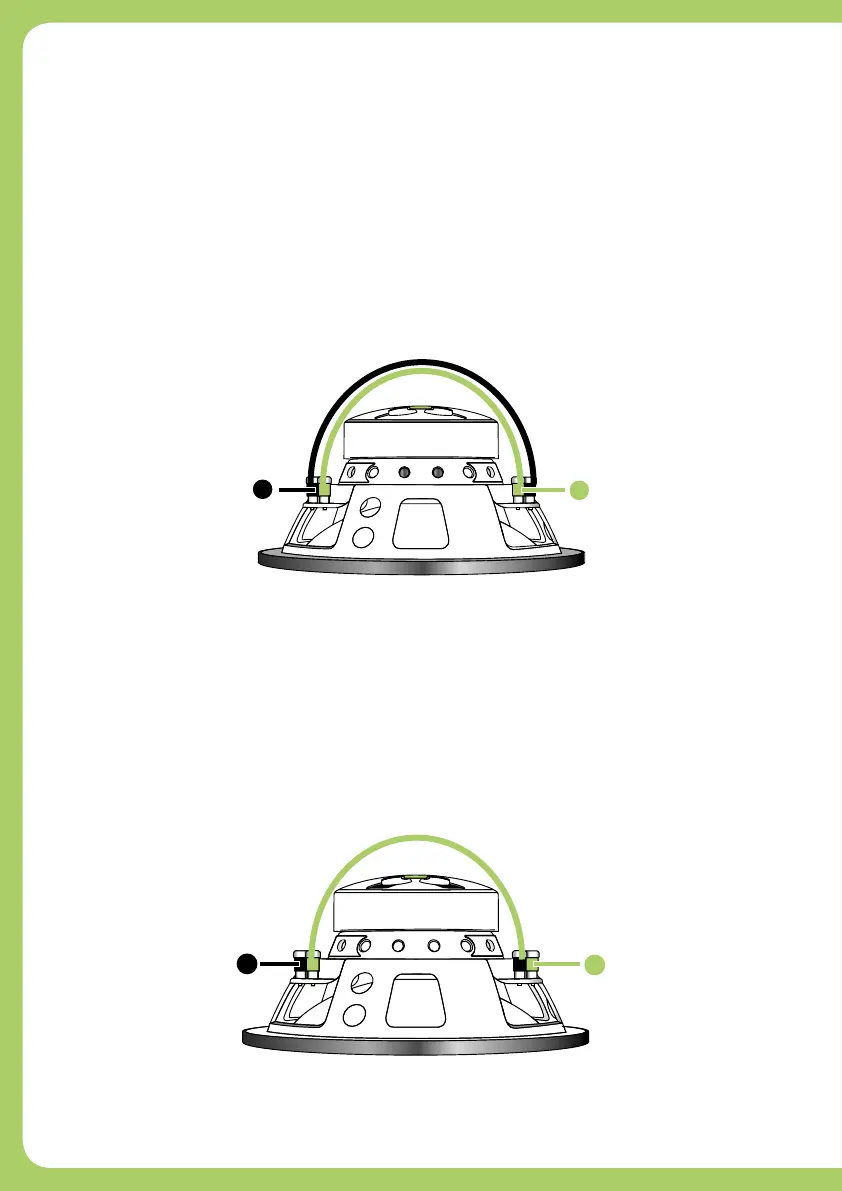

To wire a DVC subwoofer in parallel in order to get 2 Ohms, use two short pieces of speaker

wire and link the positive from one coil to the positive of the second coil and do the same for the

negative as shown in ﬁg 1. Then wire the ampliﬁer to opposite sides of the subwoofer in order to

equalise any connection resistance.

Series Voice Coil Wiring

To wire a DVC subwoofer in series in order to get 8 Ohms, use one short piece of speaker wire

and link the positive from one voice coil to the negative of the second coil as shown in ﬁg 2.

Then wire the ampliﬁer to opposite sides of the subwoofer.

SERIES AND PARALLEL SUBWOOFER WIRING FOR

DUAL VOICE COIL SUBS

2 Ohm operation

8 Ohm operation

Fig.1

Fig. 2
