Fusion MS-88300 User Manual

6

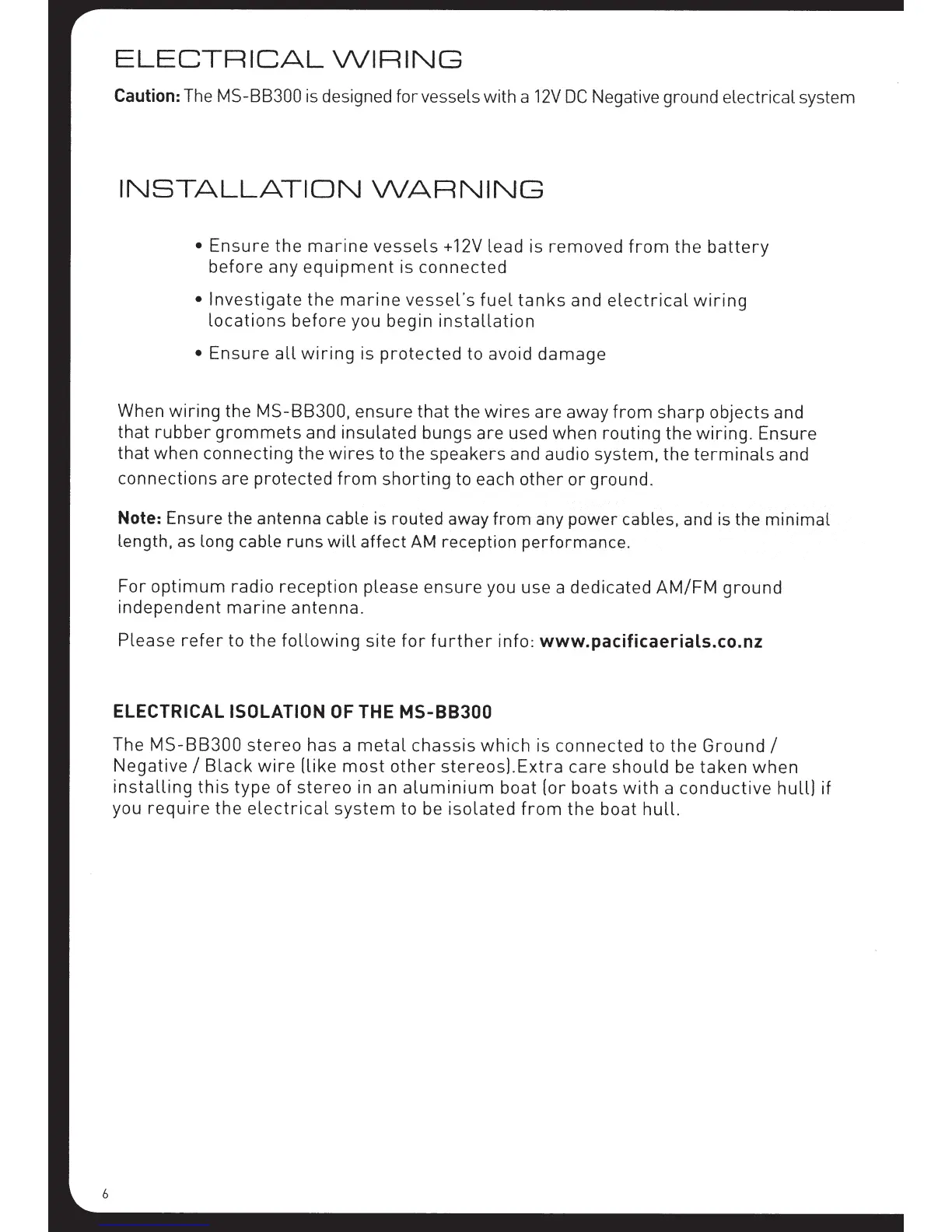

ELECTRICAL
\NIRING
Caution:
The
MS-88300
is designed for vessels with a
12V
DC
Negative ground electrical system
INSTALLATION
\NARNING
•
Ensure
the
marine
vessels
+12V
lead
is
removed
from
the
battery
before
any
equipment
is
connected
•
Investigate
the
marine
vessel's
fuel
tanks
and
electrical
wiring
locations
before
you begin
installation
•
Ensure
all
wiring
is
protected
to avoid
damage
When
wiring
the
MS-88300,
ensure
that
the
wires
are
away
from
sharp
objects
and
that
rubber
grommets
and
insulated
bungs are used
when
routing
the
wiring.
Ensure
that
when
connecting
the
wires
to
the
speakers
and audio
system,
the
terminals
and
connections
are
protected
from
shorting
to each
other
or
ground.
Note:
Ensure the antenna cable
is
routed away from any power cables, and
is
the minimal
length,
as
long cable
runs
will affect
AM
reception performance.
For
optimum
radio
reception
please
ensure
you use a dedicated
AMIFM
ground
independent
marine
antenna.
Please
refer
to
the
following
site
for
further
info:
www.pacificaerials.co.nz
ELECTRICAL ISOLATION
OF
THE
MS-88300
The
MS-88300
stereo
has a
metal
chassis
which
is
connected
to
the
Ground
I
Negative
I
Black
wire
(like
most
other
stereos).
Extra
care
should
be
taken
when
installing
this
type
of
stereo
in an
aluminium
boat
(or
boats
with
a
conductive
hull)
if
you
require
the
electrical
system
to be
isolated
from
the
boat
hull.

Fusion MS-88300 Specifications

General

Brand	Fusion
Model	MS-88300
Category	Stereo System
Language	English
