Fusion MS-88300 User Manual

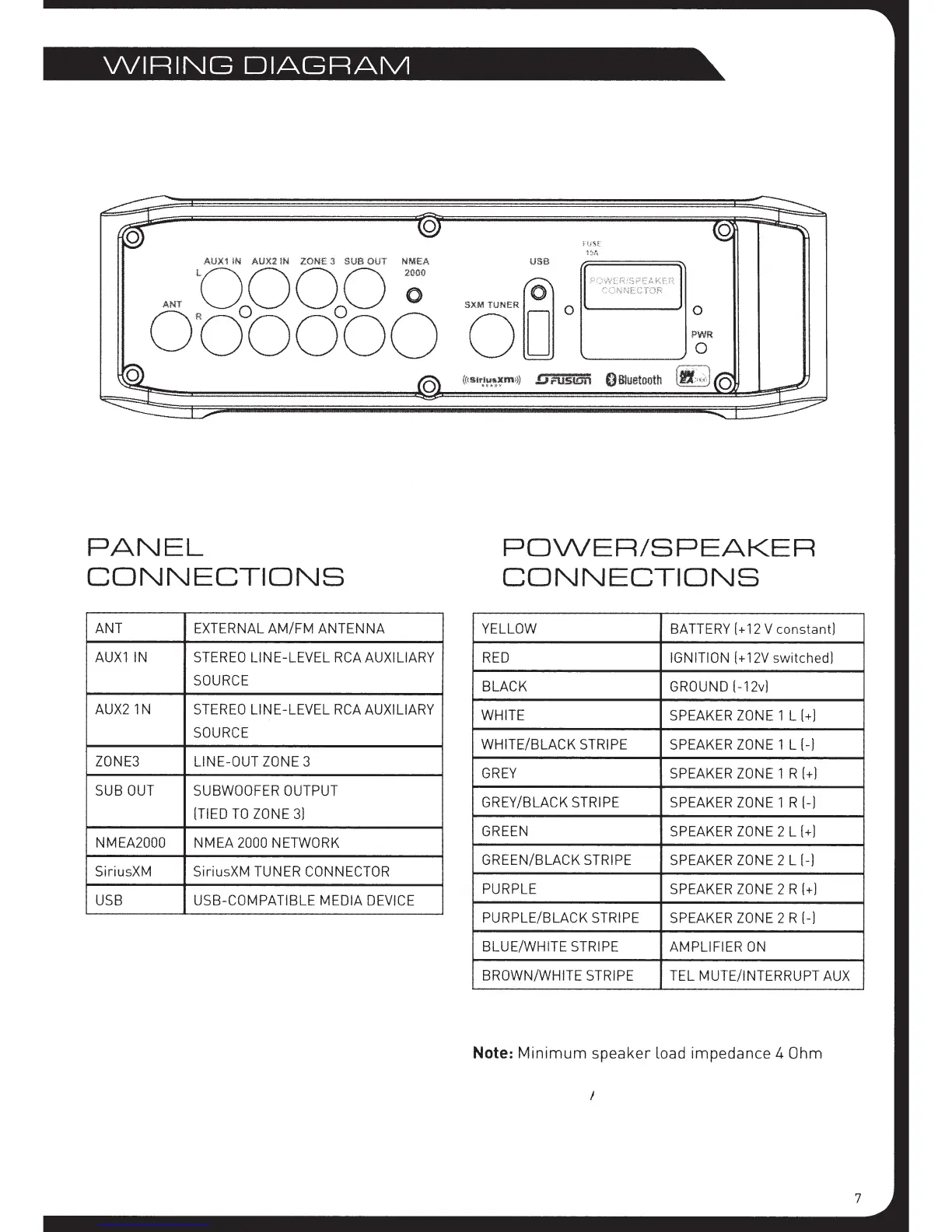

WIRING DIAGRAM
PANEL
CONNECTIONS
ANT
EXTERNAL AM/FM ANTENNA
0
AUX1 IN STEREO LINE-LEVEL RCA AUXILIARY
SOURCE
AUX21N
STEREO LINE-LEVEL RCA AUXILIARY
SOURCE
ZONE3 LINE-OUT ZONE 3
SUB OUT SUBWOOFER OUTPUT
[TIED TO ZONE 3]
NMEA2000
NMEA
2000 NETWORK
SiriusXM SiriusXM TUNER CONNECTOR
USB USB-COMPATIBLE MEDIA DEVICE
POWER/SPEAKER
CONNECTIONS
YELLOW BATTERY[+ 12 V constant)
RED IGNITION [+ 12V switched]
BLACK
GROUND [-12v]
WHITE SPEAKER ZONE 1 L [+]
WHITE/BLACK STRIPE
SPEAKER ZONE 1 L [-]
GREY SPEAKER ZONE 1 R [+]
GREY/BLACK STRIPE
SPEAKER ZONE 1 R [-]
GREEN SPEAKER ZONE 2 L (+]
GREEN/BLACK STRIPE SPEAKER ZONE 2 L (-]
PURPLE SPEAKER ZONE 2 R [+]
PURPLE/BLACK STRIPE SPEAKER ZONE 2 R [-)
BLUE/WHITE
STRIPE
AMPLIFIER ON
BROWN/WHITE STRIPE
TEL MUTE/INTERRUPT AUX
Note: Minimum speaker load impedance 4 Ohm
7
