Fusion MS-88300 User Manual

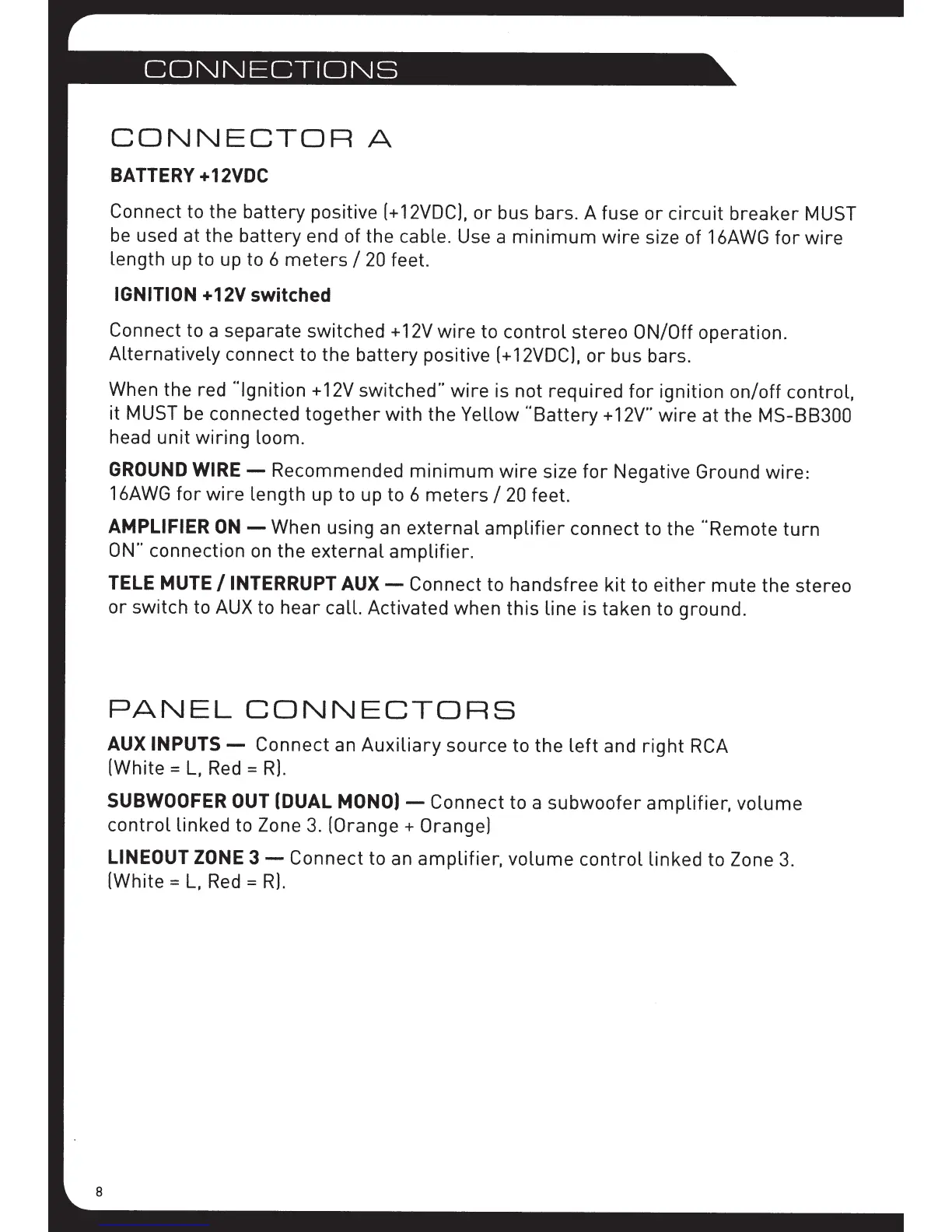

CONNECTOR
A
BATTERY +12VDC
Connect to the
battery
positive
(+
12VDCL
or
bus bars. A fuse
or
circuit
breaker
MUST
be
used at the
battery
end of the cable. Use a
minimum
wire
size of
16AWG
for
wire
length up to up to 6
meters
I
20
feet.
IGNITION +12V
switched
Connect to a separate switched +
12V
wire
to
control
stereo ON/Off operation.
Alternatively
connect to the battery positive
(+
12VDC),
or
bus bars.
When the red "Ignition +
12V
switched"
wire
is not required
for
ignition
on/off
control,
it
MUST
be
connected
together
with
the Yellow
"Battery+
12V"
wire
at the
MS-88300
head
unit
wiring
loom.
GROUND
WIRE-
Recommended
minimum
wire
size
for
Negative Ground
wire:
16AWG
for
wire
length up to up to 6
meters
I
20
feet.
AMPLIFIER
ON-
When using an
external
amplifier
connect to the
"Remote
turn
ON"
connection
on
the
external
amplifier.
TELE MUTE
/INTERRUPT
AUX-
Connect to handsfree
kit
to
either
mute
the stereo
or
switch to
AUX
to
hear
call. Activated when
this
line
is taken to ground.
PANEL
CONNECTORS
AUX
INPUTS-
Connect an
Auxiliary
source
to the
left
and
right
RCA
(White=
L,
Red
=
R).
SUBWOOFER OUT (DUAL
MONO)
- Connect to a
subwoofer
amplifier,
volume
control
linked
to Zone
3.
(Orange
+
Orange)
LINEOUT ZONE
3-
Connect to an
amplifier,
volume
control
linked
to Zone
3.
(White=
L,
Red=
R).
