Fusion MS-AM702 User & Installation Manual

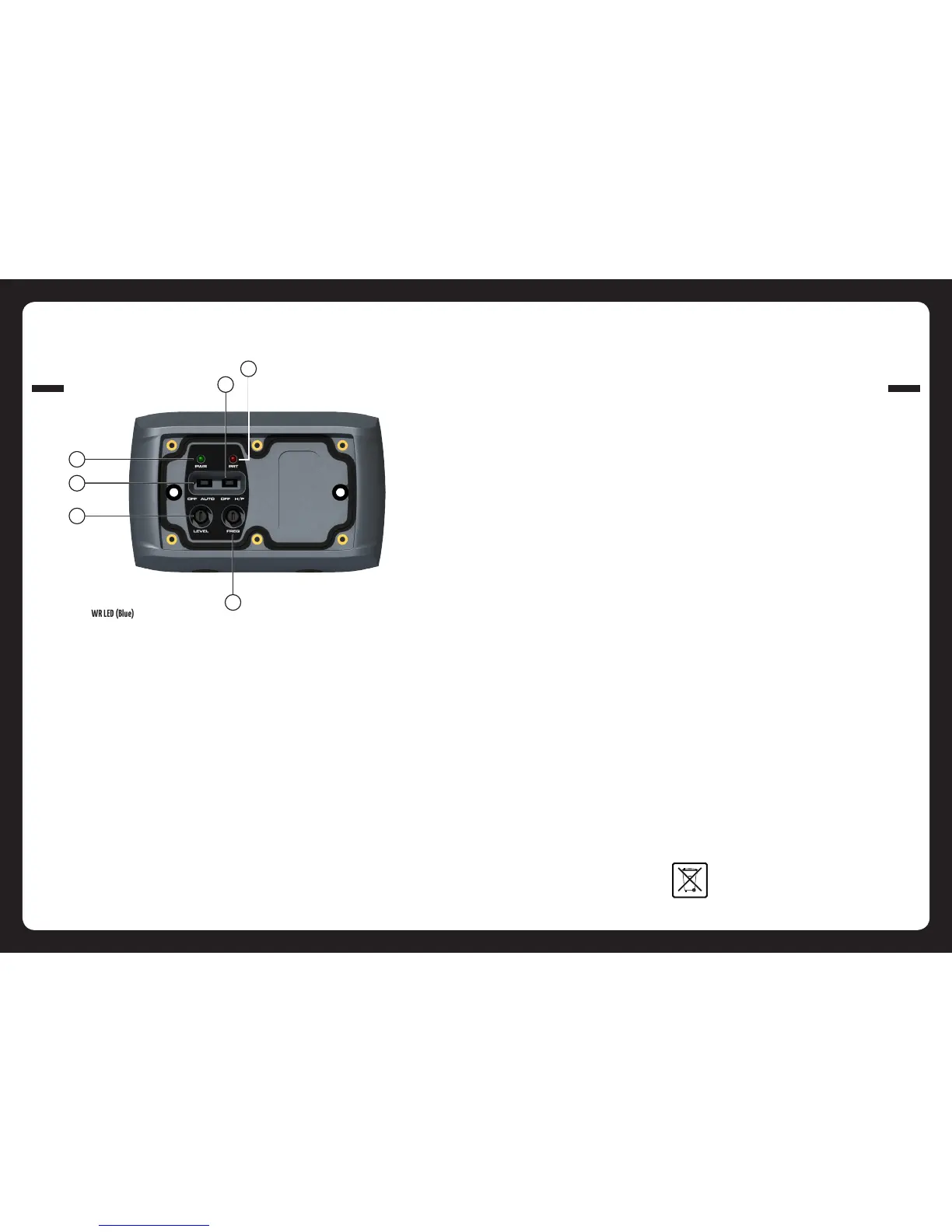

1: PWR LED (Blue)
When illuminated the amplier has been correctly powered up.
2: PRT LED (Red)
When illuminated the amplier is in protection mode.
3: AUTO ON/OFF
Switch for desired operation. See notes Auto ON/O operation
4: High Pass (H/P) Switch
Set the appropriate mode of operation. The two positions available are OFF (full range) and H/P. See point 5 below.
5: FREQ Control
Set the crossover switch 4 to H/P and turn this control to 60Hz or above (range 60Hz – 600Hz) when using speakers smaller
than 6 x 9”. This feature is designed to lter out all low bass frequencies. Note: Failure to do so could result in speaker damage.
6: LEVEL Control
The level control on the amplier allows you to match the input level of the amplier to the output level of your head unit. Match-
ing the input can be accomplished in three simple steps:
1: Turn the LEVEL control on the amplier to minimum.
2: Adjust the Headunit to 3/4 maximum volume ensuring that the BASS and TREBLE are set to zero.
3: Adjust the LEVEL control until the desired volume is achieved without audible distortion. Remember, the level control is not a
volume control. Ignoring the three steps above may damage your speakers and/or amplier.
SPECIFICATIONS
Operating Range +10-16Volts DC / Negative Ground
20 Watts RMS at 4 Ohms per channel @1%THD+N
33 Watts RMS at 2 Ohms per channel @1%THD+N
S/N Ratio @ 1kHz / 1W Reference -- 84dB
High Pass x-over - 60Hz – 600Hz
Maximum Operating Current - 8 AMPS
THD 10% @ 1kHz / 4 Ohm Load per channel
For further product and installation information please visit www.fusionelectronics.com
Para obtener más información sobre los productos o su instalación, visite
www.fusionelectronics.com
Weitere Informationen zum Produkt und zur Installation nden Sie auf folgender
Website: www.fusionelectronics.com
Ga naar www.fusionelectronics.com voor meer product- en montage-informatie
Pour plus de renseignements sur les produits et l’installation, veuillez consulter
www.fusionelectronics.com
Per ulteriori informazioni su prodotto e installazione, potete visitare
www.fusionelectronics.com
За дополнительной информацией о продукции и установке обращайтесь на
www.fusionelectronics.com
PUBLISHED BY FUSION ELECTRONICS LIMITED:
© Copyright 2008 by FUSION Electronics Limited.
All rights reserved. Specications and design are subject to change
without notice.
YOU CAN HELP PROTECT THE ENVIRONMENT!
Please remember to respect the local regulations:
Hand in the non-working electrical equipment
to an appropriate waste disposal center.
1
2
3
4
6
5
006
WIRING 007 SPECIFICATIONS
CONTROL DESCRIPTIONS

Fusion MS-AM702 Specifications
