Fusion MS-RA205 User And Installation Manual

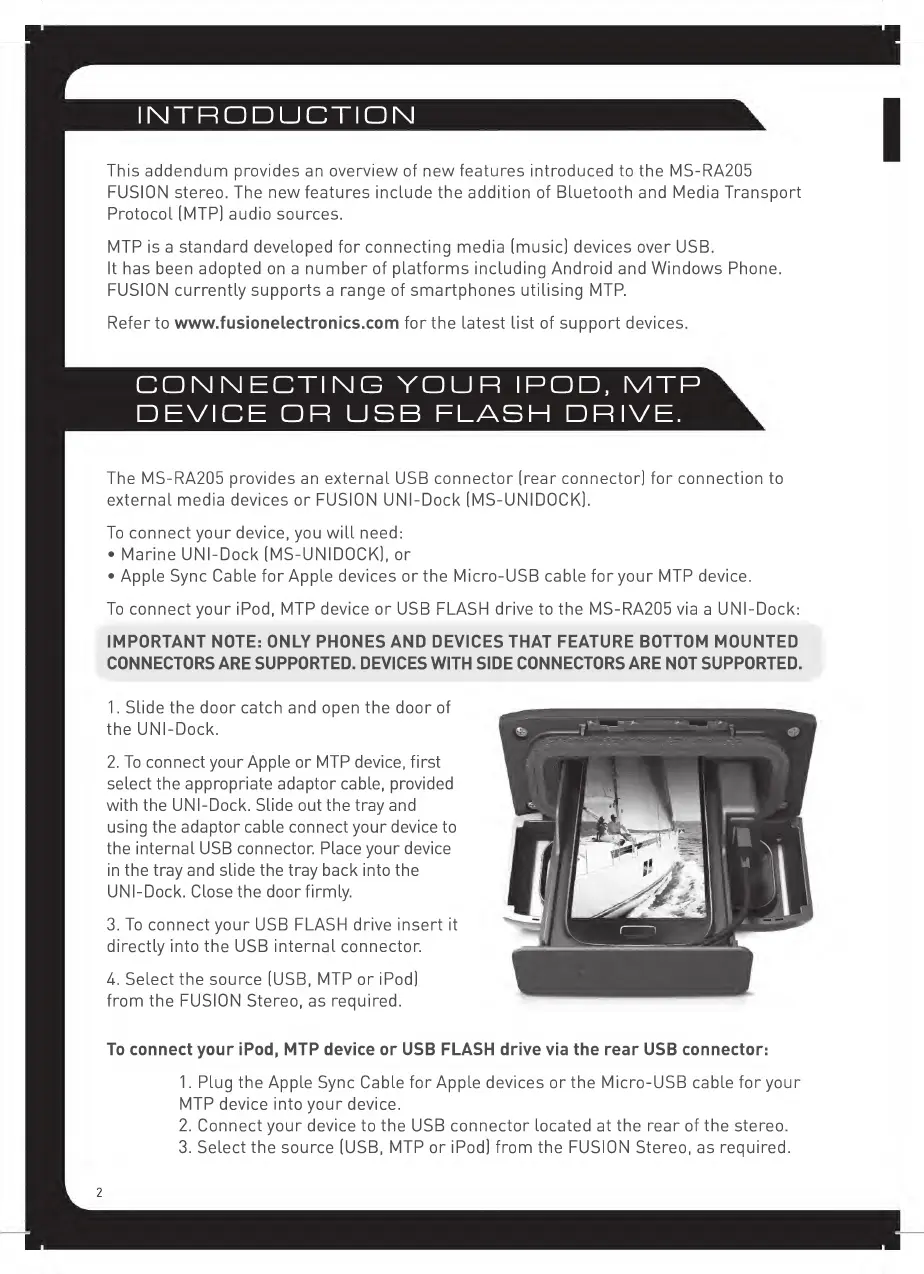

INTRODUCTION
This addendum provides an overview of new features introduced to the MS-RA205
FUSION stereo. The new features include the addition of Bluetooth and Media Transport
Protocol (MTP) audio sources.
MTP is a standard developed for connecting media (music) devices over USB.
It has been adopted on a number of platforms including Android and Windows Phone.
FUSION currently supports a range of smartphones utilising MTP.
Refer to www.fusionelectronics.com for the latest list of support devices.
CONNECTING YOUR IPOD, MTP
DEVICE OR USB FLASH DRIVE.
The MS-RA205 provides an external USB connector (rear connector) for connection to
external media devices or FUSION UNI-Dock (MS-UNIDOCK).
To connect your device, you will need:
• Marine UNI-Dock (MS-UNIDOCK), or
• Apple Sync Cable for Apple devices or the Micro-USB cable for your MTP device.
To connect your iPod, MTP device or USB FLASFI drive to the MS-RA205 via a UNI-Dock:
IMPORTANT NOTE: ONLY PHONES AND DEVICES THAT FEATURE BOTTOM MOUNTED
CONNECTORS ARE SUPPORTED. DEVICES WITH SIDE CONNECTORS ARE NOT SUPPORTED.
1. Slide the door catch and open the door of
the UNI-Dock.
2. To connect your Apple or MTP device, first
select the appropriate adaptor cable, provided
with the UNI-Dock. Slide out the tray and
using the adaptor cable connect your device to
the internal USB connector. Place your device
in the tray and slide the tray back into the
UNI-Dock. Close the door firmly.
3. To connect your USB FLASFI drive insert it
directly into the USB internal connector.
4. Select the source (USB, MTP or iPod)
from the FUSION Stereo, as required.
To connect your iPod, MTP device or USB FLASH drive via the rear USB connector:
1. Plug the Apple Sync Cable for Apple devices or the Micro-USB cable for your
MTP device into your device.
2. Connect your device to the USB connector located at the rear of the stereo.
3. Select the source (USB, MTP or iPod) from the FUSION Stereo, as required.
2

Fusion MS-RA205 Specifications

General

AM/FM Radio	Yes
Bluetooth	Yes
iPod/iPhone Connectivity	Yes
Water Resistance	Yes
Zone Control	2 Zones
USB	Yes
SiriusXM-Ready	Yes
NMEA 2000	Yes
Waterproof Rating	IPX5
Output Power	200W
Auxiliary Inputs	1 x RCA Pair
