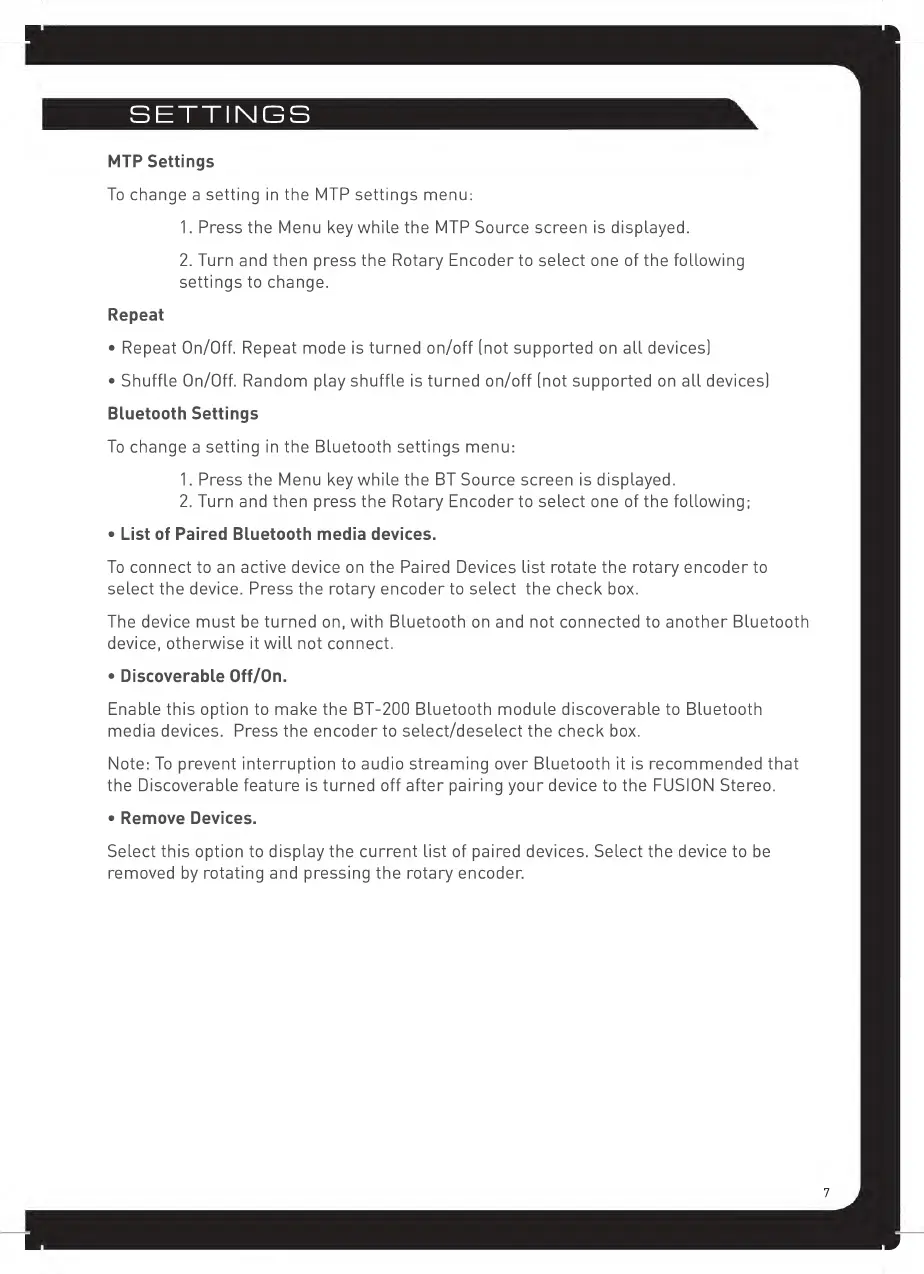

SETTINGS
MTP Settings
To change a setting in the MTP settings nnenu:
1. Press the Menu key while the MTP Source screen is displayed.
2. Turn and then press the Rotary Encoder to select one of the following
settings to change.
Repeat
• Repeat On/Off. Repeat mode is turned on/off (not supported on all devices)
• Shuffle On/Off. Random play shuffle is turned on/off (not supported on all devices)
Bluetooth Settings
To change a setting in the Bluetooth settings menu:
1. Press the Menu key while the BT Source screen is displayed.
2. Turn and then press the Rotary Encoder to select one of the following;
• List of Paired Bluetooth media devices.
To connect to an active device on the Paired Devices list rotate the rotary encoder to
select the device. Press the rotary encoder to select the check box.
The device must be turned on, with Bluetooth on and not connected to another Bluetooth
device, otherwise it will not connect.
• Discoverable Off/On.
Enable this option to make the BT-200 Bluetooth module discoverable to Bluetooth
media devices. Press the encoder to select/deselect the check box.
Note: To prevent interruption to audio streaming over Bluetooth it is recommended that
the Discoverable feature is turned off after pairing your device to the FUSION Stereo.
• Remove Devices.
Select this option to display the current list of paired devices. Select the device to be
removed by rotating and pressing the rotary encoder.
7
