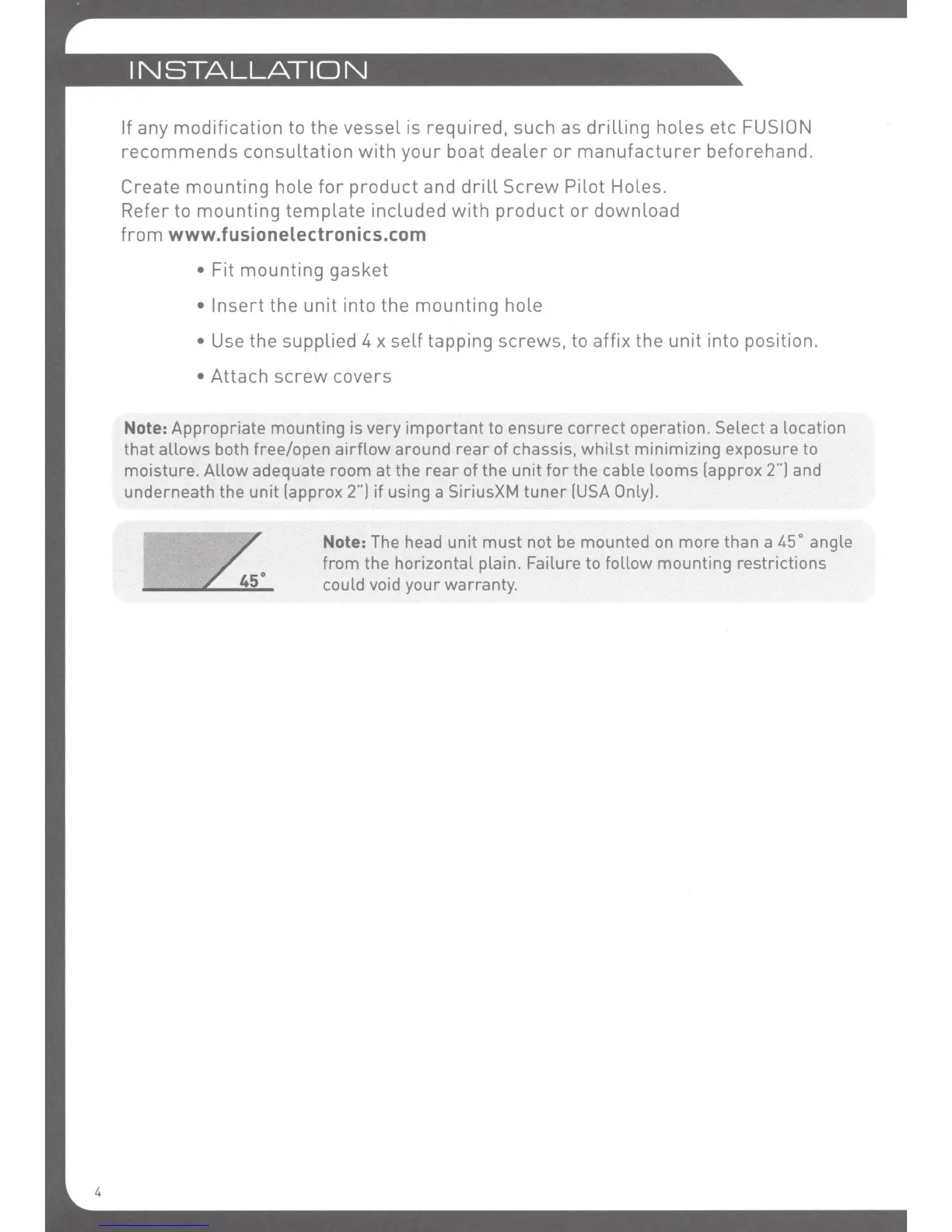

4
If any
modification
to the
vessel
is required, such as
drilling
holes etc FUSION
recommends
consultation
with
your
boat
dealer
or
manufacturer
beforehand.
Create
mounting
hole
for
product
and
drill
Screw
Pilot Holes.
Refer to
mounting
template
included
with
product
or
download
from
www.fusionelectronics.com
• Fit
mounting
gasket
•
Insert
the
unit
into
the
mounting
hole
• Use the supplied 4 x
self
tapping screws, to affix the unit into position.
• Attach
screw
covers
Note: Appropriate mounting is very important to
ensure
correct operation. Select a location
that allows both free/open airflow around
rear
of
chassis, whilst minimizing exposure to
moisture.
Allow
adequate room at the
rear
of
the unit for the cable looms lapprox
2"")
and
underneath the unit lapprox
2"')
if
using a SiriusXM tuner
!USA
Only).
Note: The head unit must not
be
mounted
on
more than a 45° angle
from the horizontal plain. Failure to follow mounting restrictions
could
void
your warranty.
