Wire Function Wire
Color/
Number
Notes
Dim Orange Connects to the boat's illumination wire
to dim the stereo screen when the
lights are on.
The gauge of the illumination wire must
be suitable for the fuse supplying the
circuit it is connected to.
Speaker zone 1
left (+)
White
Speaker zone 1
left (-)
White/black
Speaker zone 1
right (+)
Gray
Speaker zone 1
right (-)
Gray/black
Speaker zone 2
left (+)
Green
Speaker zone 2
left (-)
Green/
black
Speaker zone 2
right (+)
Purple
Speaker zone 2
right (-)
Purple/
black
Auxiliary in left
Auxiliary in right
À
Provides a red and white RCA stereo
line input for audio sources, such as a
CD or MP3 player.
Zone 1 line out
(left)
Zone 1 line out
(right)
Á
Provides a full-range output to an
external amplifier, and is associated
with the volume control for zone 1.
Subwoofer out
Â
Each cable provides a single mono
output to a powered subwoofer or
subwoofer amplifier, and one or both
cables can be used, depending on the
connection requirements of the
subwoofer or amplifier.
A connected subwoofer is associated
with the volume control for zone 1.

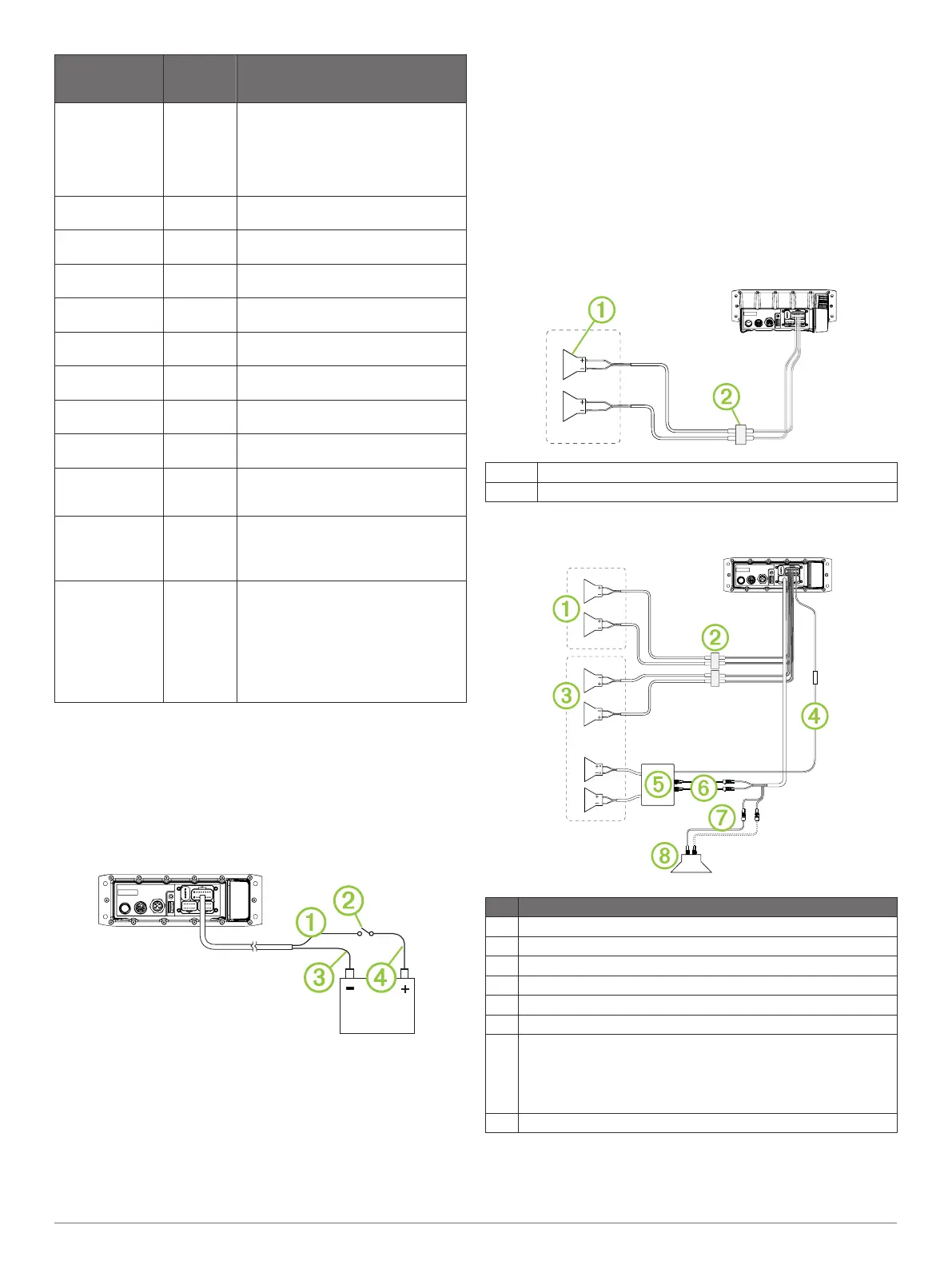

Connecting to Power
When connecting the stereo to power, you should connect it
through the ignition or another manual switch.
If it is necessary to extend the power and ground wires, use
14 AWG (2.08 mm
2
) wire. For extensions longer than 1 m (3 ft.),
use 12 AWG (3.31 mm
2
) wire.
1
Route the power wire
À
to the ignition or another manual
switch
Á
, and route the black ground wire
Â
to the battery.
2
If necessary, route a wire
Ã
between the switch and the
battery .
3
Route the wiring-harness plug to the stereo.
Do not connect the wiring harness to the stereo until after all
of the bare wire connections have been made.
4
Connect the black wire to the negative (-) battery terminal.
5
Connect the power wire to the ignition or another manual
switch, and connect the switch to the positive (+) battery
terminal if necessary.
6
Connect the wiring harness plug to the stereo.
Speaker Zones
You can group speakers in one area into speaker zones. This
enables you to control the audio level of the zones individually.
For example, you could make the audio quieter in the cabin and
louder on deck.
You can set the balance, volume limit, subwoofer level, and
name for each zone.
Single-Zone System Wiring Diagram
À
Speakers
Á
Water-tight connection
Complete System Wiring
Item Description
À
Zone 2 speakers
Á
Water-tight connection
Â
Zone 1 speakers
Ã
Amplifier-on signal wire
Ä
Powered amplifier
Å
Zone 1 line out
Æ
Zone 1 subwoofer out
Each cable provides a single mono output to a powered
subwoofer or subwoofer amplifier, and one or both cables can be
used, depending on the connection requirements of the
subwoofer or amplifier.
Ç
Powered subwoofer
NMEA 2000 System Wiring Diagram
NOTE: NMEA 2000 is available on Fusion MS-RA70N models
only.
Fusion MS-RA70/MS-RA70N Installation Instructions 3
